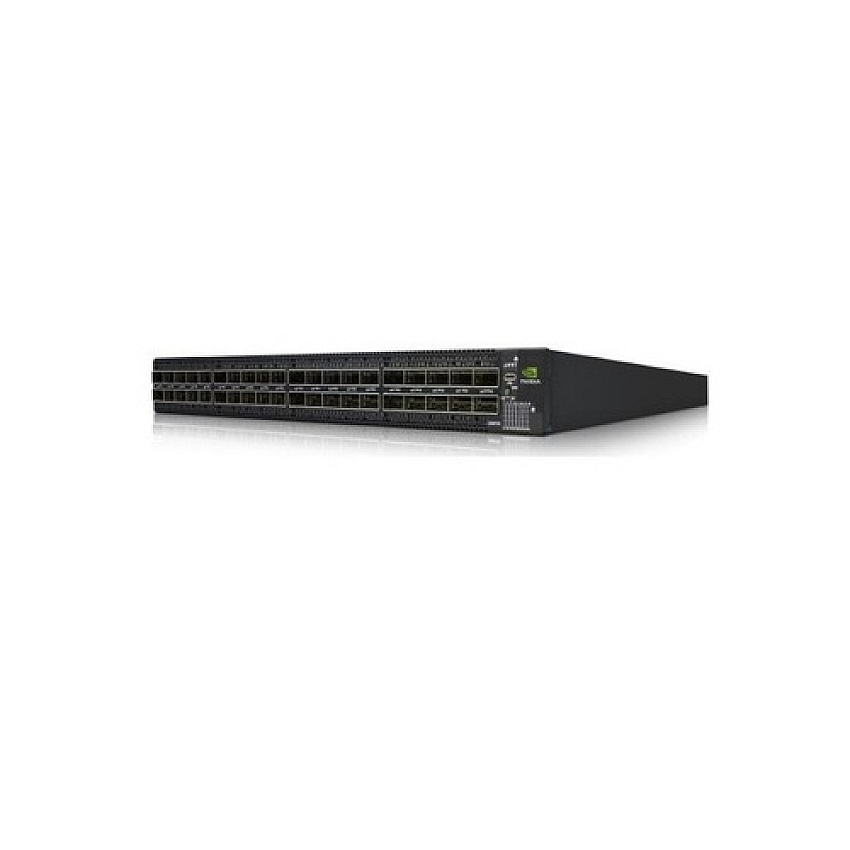

Nvidia Ib Switch 40 Qsfp56 Ports 2 Power Suppli (MQM8790HS2R)
Nvidia Ib Switch 40 Qsfp56 Ports 2 Power Suppli (MQM8790HS2R)
-
IB SWITCH 40 QSFP56 PORTS 2 POWER SUPPLI
-
Out Of Stock
Product Description
Mellanox Quantum(TM) HDR InfiniBand Switch, 40 QSFP56 ports, 2 Power Supplies (AC), unmanaged, standard depth, C2P airflow, Rail Kit, RoHS6
Product Specs
Manufacturer
NvidiaCategories
Nvidia Computer AccessoriesNvidia Networking, Cables & AccessoriesNvidia Network SwitchesManufacturer Stock No.
MQM8790-HS2RMPN
MLNMQM8790HS2RModel#
MQM8790HS2RUPC Code
729010848361UNSPSC Code
0Information
Product Description: Mellanox Quantum QM8790 - switch - 40 ports - smart - rack-mountableDevice Type: Switch - 40 ports - smart
Enclosure Type: Back to front airflow rack-mountable 1U
Subtype: InfiniBand
Ports: 40 x HDR InfiniBand QSFP56
Performance: Non-blocking switching capacity: 16 Tbps ¦ Bandwidth per port (40 HDR): 200 Gbps ¦ Bandwidth per port (80 HDR with splitter cables): 100 Gbps ¦ Port-to-port latency: 90 ns ¦ Performance: 15800000 messages per second
Capacity: Virtual lanes: 9
Features: Port mirroring, reset button, static routing, adaptive routing, congestion control, hot swappable fan, Co-Design SHArP technology, VL2VL mapping
Compliant Standards: IBTA 1.21, IBTA 1.3
Power: AC 120/230 V (50 - 60 Hz)
Power Redundancy: Yes
Environmental Standards: ENERGY STAR Qualified
Manufacturer Warranty: 1-year warranty
Device Type: Switch - 40 ports - smart
Enclosure Type: Back to front airflow desktop, rack-mountable 1U
Subtype: InfiniBand
Ports: 40 x HDR InfiniBand QSFP56
Performance: Non-blocking switching capacity: 16 Tbps ¦ Bandwidth per port (40 HDR): 200 Gbps ¦ Bandwidth per port (80 HDR with splitter cables): 100 Gbps ¦ Port-to-port latency: 90 ns ¦ Performance: 15800000 messages per second
Capacity: Virtual lanes: 9
Features: Port mirroring, reset button, static routing, adaptive routing, congestion control, hot swappable fan, Co-Design SHArP technology, VL2VL mapping
Compliant Standards: IBTA 1.21, IBTA 1.3
Status Indicators: Port status, power, Unit ID, system, link/activity, fan
Interfaces: 40 x QSFP56 ¦ Management RJ-45
Power Device: Internal power supply - hot-plug
Installed Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V (50 - 60 Hz)
80 PLUS Certification: 80 PLUS Gold
Features: 80 PLUS Gold efficiency
ENERGY STAR Certified: Yes
Included Accessories: Rack rails kit
Rack Mounting Kit: Included
Compliant Standards: VCCI, CB, EMC, FCC, RoHS, ICES, cTUVus, ISO 7779, ETS 300 753, RCM, IFS HPC, CU
Service & Support: Limited warranty - 1 year
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 85% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
COO: TAIWAN / ISRAEL / INDIA
TAA compliance: No
Unit of Measure
Item Weight
32.76Ships via UPS
YBrand
Nvidia
