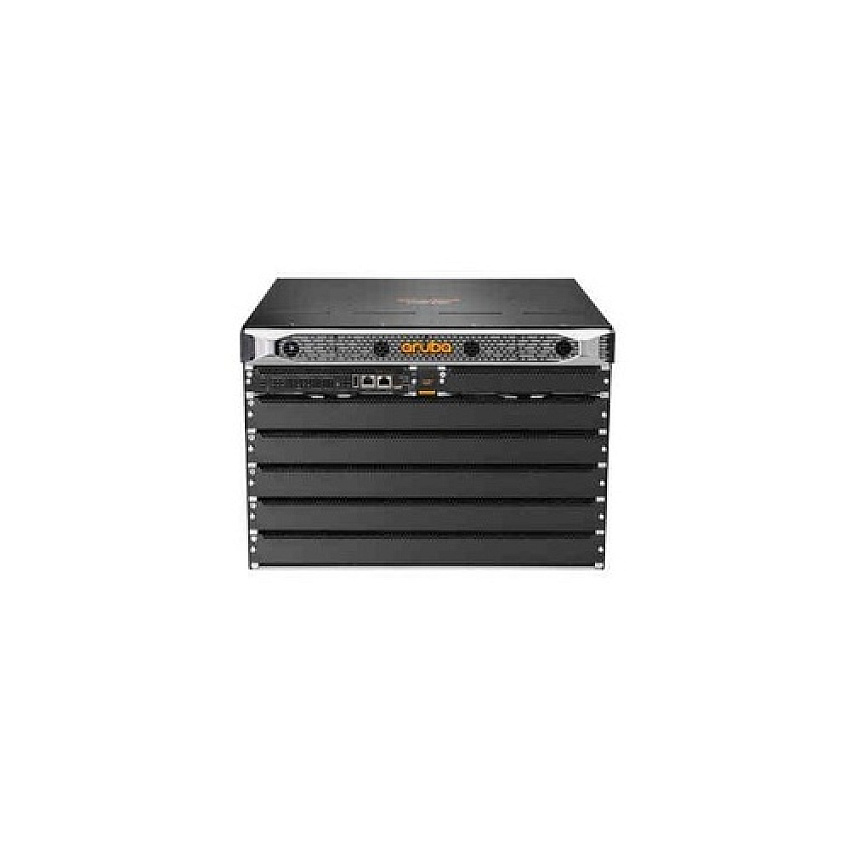

HP Aruba 6405 V2 Switch (R0X26C)
Model: R0X26C
HP Aruba 6405 V2 Switch (R0X26C)
Model: R0X26C
-
ARUBA 6405 V2 SWITCH
-
In Stock
Product Description
ARUBA 6405 V2 SWITCH Aruba CX 6400 Switch Series - Management module: Quad Core ARM Cortex A72 1.8GHz - 16GB DDR4 ECC memory, 32GB eMMC Flash memory Line card: Dual Core ARM Cortex A72 1.8GHz - 4GB DDR4 memory Line card: 8MB shared packet buffer memory(R0
Product Specs
Manufacturer
HPManufacturer Stock No.
R0X26CMPN
HPER0X26CModel#
R0X26CUPC Code
190017537382UNSPSC Code
0Information
Product Description: HPE Aruba CX 6405 v2 - switch - managed - rack-mountableDevice Type: Switch - L3 - managed
Enclosure Type: Front to back airflow rack-mountable 7U
Subtype: 10 Gigabit Ethernet
Performance: Switching capacity: 14 Tbps ¦ Throughput: 5.7 Bpps
Capacity: Switched virtual interfaces (SVIs): 2000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 64000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol: RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, SSH-2, CLI, XRMON, SFTP
Features: DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, firmware upgradable, sFlow, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, BSR Mechanism, VSX, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt
Power Redundancy: Optional
Dimensions (WxDxH): 17.4 in x 17.7 in x 12.1 in
Weight: 64.59 lbs
Manufacturer Warranty: Limited lifetime warranty
Designed For: P/N: R0X27C, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C
Device Type: Switch - L3 - managed
Enclosure Type: Front to back airflow rack-mountable 7U
Subtype: 10 Gigabit Ethernet
Performance: Switching capacity: 14 Tbps ¦ Throughput: 5.7 Bpps
Capacity: Switched virtual interfaces (SVIs): 2000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 64000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol: RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, SSH-2, CLI, XRMON, SFTP
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features: DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, firmware upgradable, sFlow, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, BSR Mechanism, VSX, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt
Processor: 1: 1.8 GHz
RAM: 16 GB DDR4 SDRAM
Flash Memory: 32 GB
Status Indicators: Power, active, standby, status, fan
Interfaces: 1 x USB-C console ¦ 1 x console RJ-45 ¦ 1 x USB Type A ¦ 1 x management RJ-45
Installed Modules Qty (Max): 1 (installed) / 7 (max)
Power Device: Internal power supply (not installed)
Max Supported Qty: 4
Power Redundancy: Optional
Included Accessories: 2 fan trays, cable management kit
Rack Mounting Kit: Included
Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, WEEE, VCCI Class A, EN 50581: 2012, IEC 60825-1: 2007, IEC 60950-1: 2005 Second Edition, EN 55022 Class A, UL 62368-1 Second Edition, CISPR 32: 2012 Class A, EN 55032: 2012 Class A, EN 62368-1: 2014, CSA 60950-1 Second Edition, EN 55035, CISPR 35, EN 55024: 2010 + A1: 2001 + A2: 2003, EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013
Width: 17.4 in
Depth: 17.7 in
Height: 12.1 in
Weight: 64.59 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (non-condensing)
Designed For: P/N: R0X27C, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C
COO: SINGAPORE
TAA compliance: Yes
