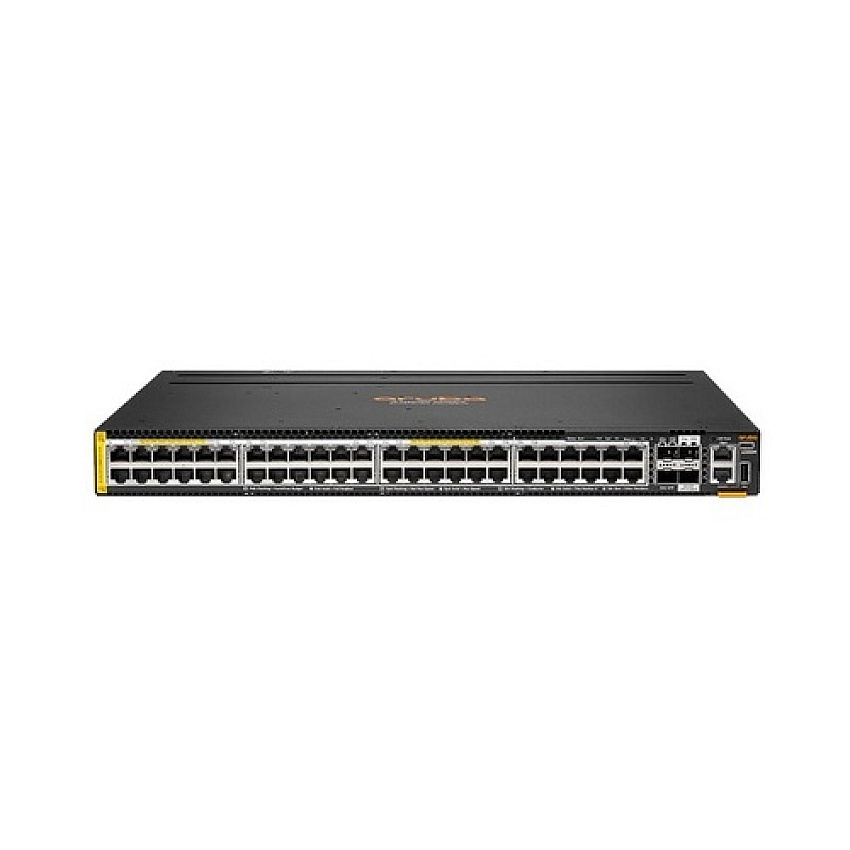

HP Aruba 6300m 48sr5 Cl8/cl6 2p50g 2p10g Sw (R8S91A)
Model: R8S91A
HP Aruba 6300m 48sr5 Cl8/cl6 2p50g 2p10g Sw (R8S91A)
Model: R8S91A
-
ARUBA 6300M 48SR5 CL8/CL6 2P50G 2P10G SW
-
In Stock
Product Description
Aruba CX 6300 Switch Series - Quad Core ARM Cortex A72 1.8GHz - 8 GB DDR4 32 GB eMMC 8 MB Shared Packet Buffer Memory - 48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports - 1x USB-C Console Port 1x RJ Console Port 1x OOBM port 1x USB Type A Host
Product Specs
Manufacturer
HPManufacturer Stock No.
R8S91AMPN
HPER8S91AModel#
R8S91AUPC Code
190017538686UNSPSC Code
0Information
Product Description: HPE Aruba 6300M - switch - 48 ports - managed - rack-mountableDevice Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 100/1000/2.5G/5G (PoE++) + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE++
Performance: Switching capacity: 496 Gbps ¦ Throughput: 369 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Latency (25 Gbps): 1.9 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
Capacity: Switched virtual interfaces (SVIs): 1024 ¦ IPv4 host table capacity: 49152 ¦ IPv6 host table capacity: 49152 ¦ IPv4 routes (Unicast): 61000 ¦ IPv6 routes (Unicast): 61000 ¦ IPv4 routes (Multicast): 8192 ¦ IPv6 routes (Multicast): 8192 ¦ IGMP groups: 8192 ¦ MLD groups: 8192 ¦ IPv4 ACL entries (ingress): 20480 ¦ IPv6 ACL entries (ingress): 5120 ¦ MAC ACL entries (ingress): 20480 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), MSTP, RSTP, STP
Remote Management Protocol: SNMP, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP
Features: VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, High Availability, sFlow, STP support, RSTP support, PVST, MSTP support, ACL support, QoS, DWRR, LLDP support, fan tray, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, BSR Mechanism, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.3bt
Power: (50/60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.4 in x 15.2 in x 1.7 in
Weight: 12.06 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 100/1000/2.5G/5G (PoE++) + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) + 2 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE++
Performance: Switching capacity: 496 Gbps ¦ Throughput: 369 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Latency (25 Gbps): 1.9 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
Capacity: Switched virtual interfaces (SVIs): 1024 ¦ IPv4 host table capacity: 49152 ¦ IPv6 host table capacity: 49152 ¦ IPv4 routes (Unicast): 61000 ¦ IPv6 routes (Unicast): 61000 ¦ IPv4 routes (Multicast): 8192 ¦ IPv6 routes (Multicast): 8192 ¦ IGMP groups: 8192 ¦ MLD groups: 8192 ¦ IPv4 ACL entries (ingress): 20480 ¦ IPv6 ACL entries (ingress): 5120 ¦ MAC ACL entries (ingress): 20480 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), MSTP, RSTP, STP
Remote Management Protocol: SNMP, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP
Encryption Algorithm: FIPS 140-2
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features: VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, High Availability, sFlow, STP support, RSTP support, PVST, MSTP support, ACL support, QoS, DWRR, LLDP support, fan tray, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, BSR Mechanism, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.3bt
Processor: 1 x ARM: 1.8 GHz
RAM: 8 GB DDR4 SDRAM
Flash Memory: 32 GB
Interfaces: 48 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 ¦ 1 x USB-C ¦ 1 x management ¦ 1 x USB Type A
Power Device: Internal power supply - hot-plug
Installed Qty: 1
Max Supported Qty: 2
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Power Provided: 75 Watt
Voltage Required: (50/60 Hz)
Rack Mounting Kit: Included
Compliant Standards: EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, IEC 60950-1: 2005, EN 61000-3-3: 2013, EN 61000-3-2: 2014, EN 60825-1: 2007, FCC CFR47 Part 15 B Class A, CNS 14336-1, IEC 60825-1: 2007 Class 1, CISPR 32: 2015+COR1: 2016, EN 60950-1: 2006+A1: 2010+A11: 2009+A2: 2013+A12: 2011, EN 55035: 2017, EN 62368-1: 2014+A11: 2017, EN 55032: 2015+AC: 2016 Class A, IEC 62368-1: 2014, CISPR 35: 2016 Class A
Width: 17.4 in
Depth: 15.2 in
Height: 1.7 in
Weight: 12.06 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (non-condensing)
COO: SINGAPORE
Unit of Measure
Item Weight
18.18Ships via UPS
YBrand
HP
$14,688.89
$16,915.00
$18,929.26
$21,798.00
$41,303.44
$47,563.00
