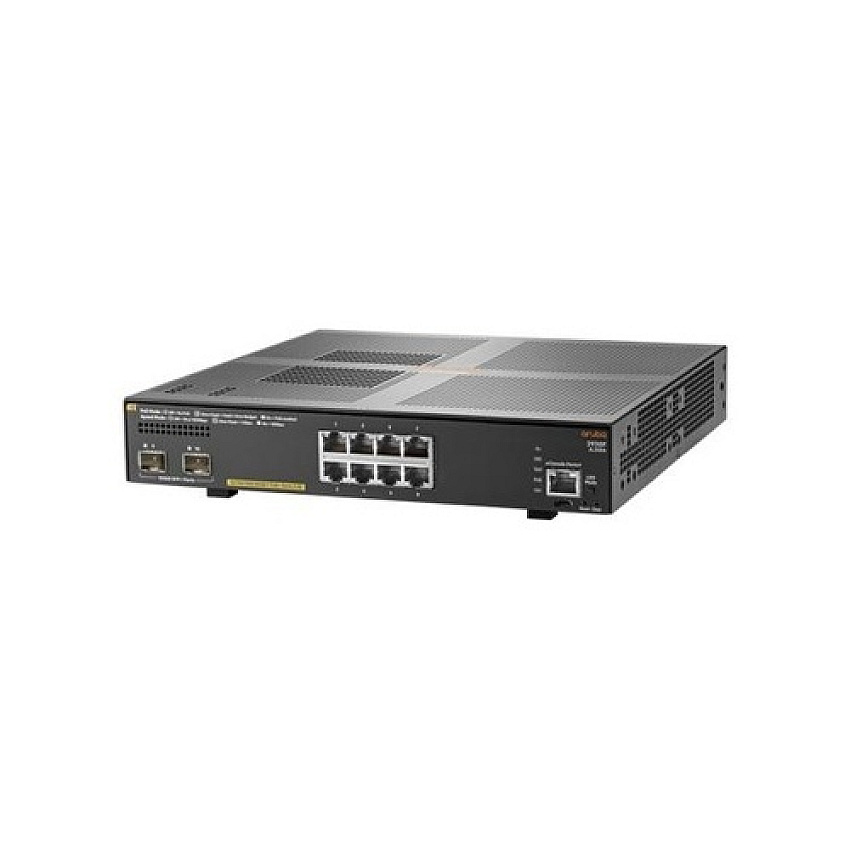

HP Aruba 2930f 8g Poe+ 2sfp+ Swch U.s. (JL258A#ABA)
Model: JL258A#ABA
HP Aruba 2930f 8g Poe+ 2sfp+ Swch U.s. (JL258A#ABA)
Model: JL258A#ABA
-
ARUBA 2930F 8G POE+ 2SFP+ SWCH U.S.
-
Out Of Stock
Product Description
Aruba 2930F Switch Series - Dual Core ARM Cortex A9 1016 MHz - 1 GB DDR3 SDRAM - 4 GB eMMC - (8) RJ-45 autosensing 10/100/1000 PoE+ ports (2) SFP+ 1/10GbE ports PHY-less - 1000 Mb Latency: less 3.8 us 10 Gbps Latency: less 1.6 us - 90 - 264 VAC, rated - 1
Product Specs
Manufacturer
HPManufacturer Stock No.
JL258A#ABAMPN
HPEJL258AABAModel#
JL258A#ABAUPC Code
190017006758UNSPSC Code
0Information
Product Description: HPE Aruba 2930F 8G PoE+ 2SFP+ - switch - 8 ports - managed - rack-mountableDevice Type: Switch - 8 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE): PoE+
PoE Budget: 125 W
Performance: Throughput: 41.7 Mpps ¦ Switching capacity: 56 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
Capacity: Jumbo frame size: 9220 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size: 32K entries
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Features: Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Power: AC 90-264 V
Dimensions (WxDxH): 10 in x 10 in x 1.7 in
Weight: 4.41 lbs
Localization: English / United States
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 8 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE): PoE+
PoE Budget: 125 W
Performance: Throughput: 41.7 Mpps ¦ Switching capacity: 56 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
Capacity: Jumbo frame size: 9220 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size: 32K entries
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Encryption Algorithm: MD5, SSL
Authentication Method: RADIUS, PAP, CHAP, TACACS, TACACS+
Features: Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor: 1 x ARM Cortex-A9: 1.016 GHz
RAM: 1 GB DDR3 SDRAM
Flash Memory: 4 GB
Interfaces: 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console)
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max): 0 (installed) / 2 (max)
Power Device: Internal power supply
Installed Qty: 1
Voltage Required: AC 90-264 V
80 PLUS Certification: 80 PLUS Silver
Included Accessories: 4 rubber feet, rack mount kit, mounting screws, table mounting kit
Compliant Standards: CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1: 2007, CNS 13438, EN 55024: 2010, EN 55022: 2010, IEC 60950-1: 2005 + A1: 2009 + A2: 2013, EN 60825-1: 2007, FCC CFR47 Part 15 A, EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013
Localization: English / United States
Software Included: Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Width: 10 in
Depth: 10 in
Height: 1.7 in
Weight: 4.41 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 90% (non-condensing)
COO: CHINA
TAA compliance: No
Unit of Measure
Item Weight
10.3Ships via UPS
YBrand
HP
$6,738.25
$7,461.00
$33,790.60
$37,415.00
$37,093.36
$41,072.00
