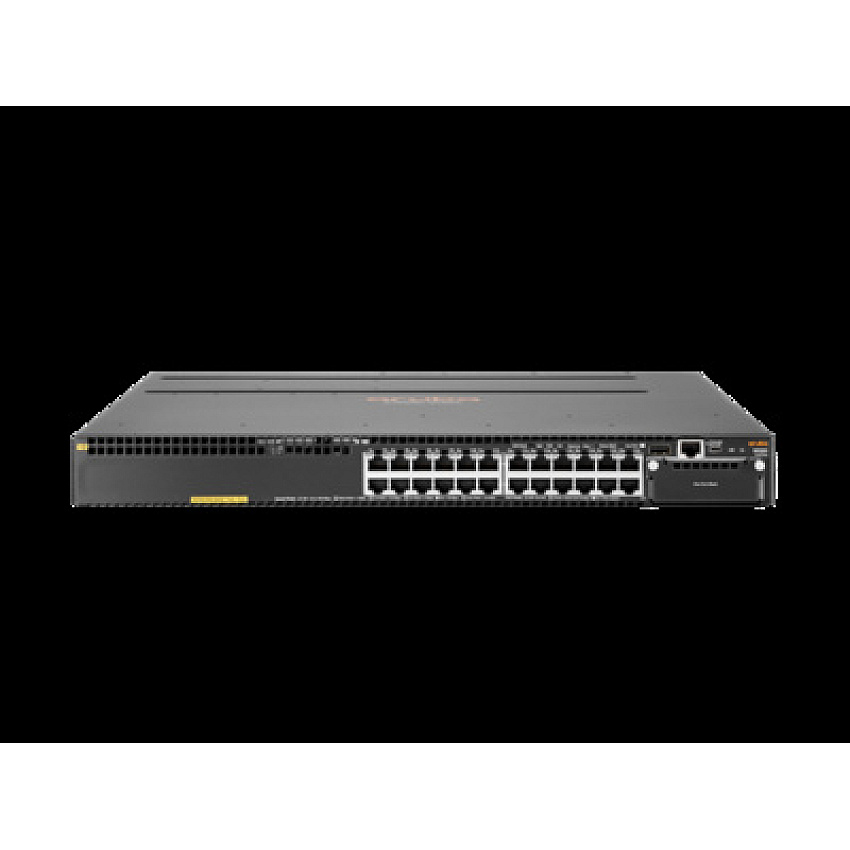

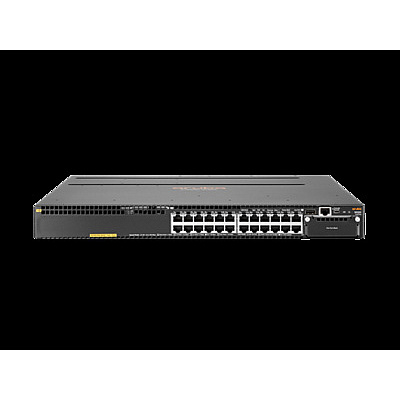

HP 3810-24g-poe+ W/1 Slt Swch (JL073A)
Model: JL073A
HP 3810-24g-poe+ W/1 Slt Swch (JL073A)
Model: JL073A
-
HP 3810-24G-POE+ W/1 SLT SWCH
-
Out Of Stock
Product Description
Aruba 3810M Switch Series - Dual ARM Coretex A9 1 GHz - 2 GB DDR3 SDRAM - Packet buffer size: 13.5 MB Internal - (24) RJ-45 autosensing 10/100/1000 PoE+ ports Ports 1 - 24 support MACSec (1) open module slot Supports a maximum of 4 SFP+ ports or 1 40GbE p
Product Specs
Manufacturer
HPManufacturer Stock No.
JL073AMPN
HPEJL073AModel#
JL073AUPC Code
888793596593UNSPSC Code
0Information
Product Description: HPE Aruba 3810M 24G PoE+ 1-slot Switch - switch - 24 ports - managed - rack-mountableDevice Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE): PoE+
Performance: Latency (1000Base-T): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Latency (40 Gbps): 1.5 µs ¦ Throughput (64-byte packet size): up to 95.2 Mpps ¦ Routing/switching capacity: 160 Gbps ¦ Switching fabric bandwidth: 169 Gbps
Capacity: IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size: 64K entries
Jumbo Frame Support: Yes
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, BGP, VRRP, OSPFv2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol: RMON, Telnet, SNMP 3, HTTP, SSH, SSH-2, CLI, XRMON
Features: ARP support, STP support, PVST, ACL support, QoS, DLDP support, UDLD, MIB, GVRP, MVRP, CoS, sFlow v5, ToS, OpenFlow support, ICMP
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at
Environmental Standards: ENERGY STAR Qualified
Dimensions (WxDxH): 17.4 in x 17 in x 1.7 in
Weight: 13.03 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE): PoE+
Performance: Latency (1000Base-T): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Latency (40 Gbps): 1.5 µs ¦ Throughput (64-byte packet size): up to 95.2 Mpps ¦ Routing/switching capacity: 160 Gbps ¦ Switching fabric bandwidth: 169 Gbps
Capacity: IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size: 64K entries
Jumbo Frame Support: Yes
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, BGP, VRRP, OSPFv2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol: RMON, Telnet, SNMP 3, HTTP, SSH, SSH-2, CLI, XRMON
Encryption Algorithm: SSL
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features: ARP support, STP support, PVST, ACL support, QoS, DLDP support, UDLD, MIB, GVRP, MVRP, CoS, sFlow v5, ToS, OpenFlow support, ICMP
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at
Processor: 2
RAM: 6 GB DDR3 SDRAM
Flash Memory: 1 GB
Interfaces: 24 x 1000Base-T RJ-45 PoE+ ¦ 1 x serial (console) RJ-45 management ¦ 1 x management RJ-45 ¦ 1 x RJ-45 ¦ 1 x Type B
Expansion Slots: 1 (total) / 1 (free) x expansion slot ¦ 1 (total) / 1 (free) x Stacking Module slot
Power Device: Internal power supply (not installed) - hot-plug
Max Supported Qty: 2
80 PLUS Certification: 80 PLUS Silver
ENERGY STAR Certified: Yes
Included Accessories: Fan tray
Rack Mounting Kit: Included
Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, UL 60950, Laser Class 1, UL 60950-1, EN 60825, IEC 60825, CAN/CSA C22.2 No. 60950, EN 61000-3-2: 2006+A1: 2009+A2: 2009, VCCI Class A, IEC 60825-1: 2007, EN 62479: 2010, EN55022: 2010, EN61000-3-3: 2008, IEC 60950-1: 2005 Second Edition, CSA 22.2 No. 60950-1, EN 55024: 2010, EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013
Width: 17.4 in
Depth: 17 in
Height: 1.7 in
Weight: 13.03 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 90% (non-condensing)
COO: SINGAPORE
TAA compliance: Yes
Unit of Measure
Item Weight
18.75Ships via UPS
YBrand
HP
$24,417.51
$28,118.00
$34,285.08
$39,481.00
$24,717.00
$29,660.40
