Nvidia Spectrum-2 Based 200gbe (MSN3700VS2FC)
Model: MSN3700VS2FC
Nvidia Spectrum-2 Based 200gbe (MSN3700VS2FC)
Model: MSN3700VS2FC
-
SPECTRUM-2 BASED 200GBE
-
Special order arrives within 3-7 weeks.
Product Description

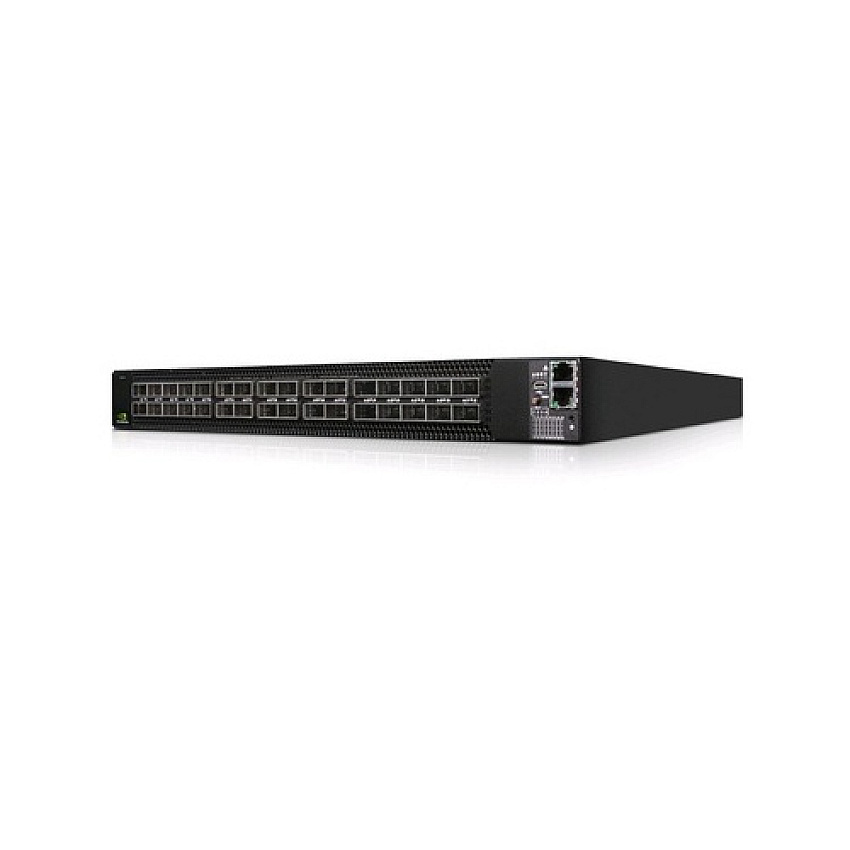

Mellanox Spectrum-2 based 200GbE 1U Open Switch with Cumulus Linux, 32 QSFP56 ports, 2 Power Supplies (AC), Standard depth, x86 CPU, P2C airflow, Rail Kit
Product Specs
Manufacturer
NvidiaCategories
Nvidia Computer AccessoriesNvidia Networking, Cables & AccessoriesNvidia Network SwitchesManufacturer Stock No.
MSN3700-VS2FCMPN
MLNMSN3700VS2FCModel#
MSN3700VS2FCUNSPSC Code
0Information
Product Description: Mellanox Spectrum-2 MSN3700 - switch - 32 ports - managed - rack-mountableDevice Type: Switch - 32 ports - L3 - managed
Enclosure Type: Back to front airflow rack-mountable 1U
Subtype: 200 Gigabit Ethernet
Ports: 32 x 200 Gigabit QSFP56
Performance: Throughput: 12.8 Tbps ¦ Latency: 425 ns ¦ Packets per second: 8.33 Bpps
Capacity: Packet buffer size: 42 MB
Jumbo Frame Support: 9216 bytes
Routing Protocol: BGP, VRRP, OSPFv2, PIM-SM, PIM-SSM, Multiprotocol BGP, static IPv4 routing, ECMP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, TFTP, SSH-2, CLI, NTP, JSON
Features: Flow control, ARP support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, store and forward, IPv6 support, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, event log, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, Equal-Cost Multipath (ECMP), IPv4 support, LACP support, LLDP support, DHCP relay, Per-VLAN Rapid Spanning Tree (PVRST), hot swappable 6 fans, Storm Control, RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Link Aggregation, dual image support, Authentication, Authorization and Accounting (AAA), IGMP querier, Root Guard, Loop Guard, Multi-Chassis Link Aggregation (MLAG), BPDU Filter, VLAN Tagging, Advanced QoS, 42MB packet buffer, BPDU Guard
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 16.9 in x 22 in x 1.7 in
Weight: 24.47 lbs
Manufacturer Warranty: 1-year warranty
Device Type: Switch - 32 ports - L3 - managed
Enclosure Type: Back to front airflow rack-mountable 1U
Subtype: 200 Gigabit Ethernet
Ports: 32 x 200 Gigabit QSFP56
Performance: Throughput: 12.8 Tbps ¦ Latency: 425 ns ¦ Packets per second: 8.33 Bpps
Capacity: Packet buffer size: 42 MB
Jumbo Frame Support: 9216 bytes
Routing Protocol: BGP, VRRP, OSPFv2, PIM-SM, PIM-SSM, Multiprotocol BGP, static IPv4 routing, ECMP, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, TFTP, SSH-2, CLI, NTP, JSON
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP
Features: Flow control, ARP support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, store and forward, IPv6 support, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, event log, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, Equal-Cost Multipath (ECMP), IPv4 support, LACP support, LLDP support, DHCP relay, Per-VLAN Rapid Spanning Tree (PVRST), hot swappable 6 fans, Storm Control, RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Link Aggregation, dual image support, Authentication, Authorization and Accounting (AAA), IGMP querier, Root Guard, Loop Guard, Multi-Chassis Link Aggregation (MLAG), BPDU Filter, VLAN Tagging, Advanced QoS, 42MB packet buffer, BPDU Guard
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz
RAM: 8 GB
Built-in Devices: 32 GB SSD
Interfaces: 32 x 200Gbit LAN QSFP56 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x USB ¦ 1 x serial RJ-45
Power Device: Internal power supply - hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V (50/60 Hz)
Included Accessories: Rack rails kit
Rack Mounting Kit: Included
Compliant Standards: VCCI, CB, FCC, RoHS, ICES, cTUVus, RCM, CU
Software Included: Cumulus Linux
Width: 16.9 in
Depth: 22 in
Height: 1.7 in
Weight: 24.47 lbs
Service & Support: Limited warranty - 1 year
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 85%
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
COO: TAIWAN / ISRAEL / INDIA
TAA compliance: No
Unit of Measure
Item Weight
33.86Ships via UPS
YBrand
Nvidia
$20,555.70
$24,395.00
