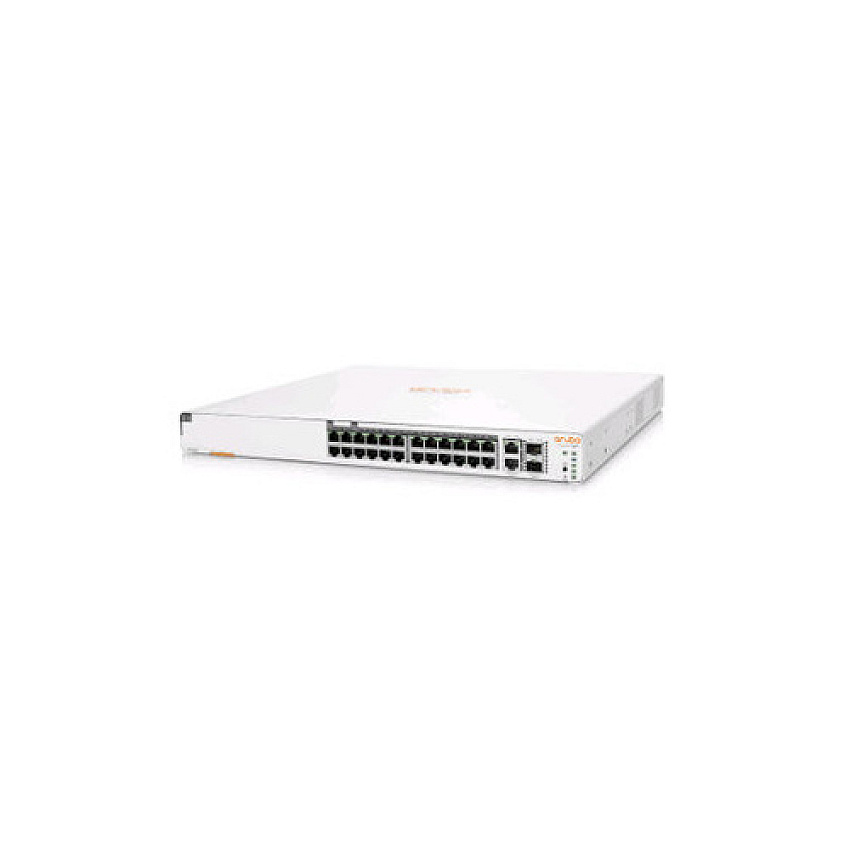

HP e Networking Instant On 1960 24g 20p Class4 4p Class6 Poe 2xgt 2sfp+ 370w Switch Us (JL807A#ABA)
Model: JL807A#ABA
HP e Networking Instant On 1960 24g 20p Class4 4p Class6 Poe 2xgt 2sfp+ 370w Switch Us (JL807A#ABA)
Model: JL807A#ABA
-
HPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch US
-
Out Of Stock
Product Description
HPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch US
Product Specs
Manufacturer
HPManufacturer Stock No.
JL807A#ABAMPN
HPEJL807AABAModel#
JL807A#ABAUPC Code
190017521572UNSPSC Code
0Information
Product Description: HPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch - switch - 24 ports - managed - rack-mountableDevice Type: Switch - 24 ports - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
Power Over Ethernet (PoE): PoE
PoE Budget: 370 W
Performance: Throughput: 95 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs
Capacity: MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS
Features: Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, STP support, ACL support, TPM, LACP, CoS, EEE, BPDU Filter, auto voice VLAN, LLDP-MED
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP)
Power: AC 100-240 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 13.8 in x 1.7 in
Weight: 10.36 lbs
Localization: English / United States
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 24 ports - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
Power Over Ethernet (PoE): PoE
PoE Budget: 370 W
Performance: Throughput: 95 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs
Capacity: MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS
Authentication Method: RADIUS
Features: Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, STP support, ACL support, TPM, LACP, CoS, EEE, BPDU Filter, auto voice VLAN, LLDP-MED
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP)
Processor: 1 x ARM: 800 MHz
Status Indicators: Port status, power
Interfaces: 24 x 10/100/1000 Base-T RJ-45 370 W ¦ 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ ¦ 2 x 10GBase-T RJ-45
Power Device: Internal power supply
Voltage Required: AC 100-240 V (50/60 Hz)
MTBF: 65.3 years
Compliant Standards: EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, UL 62368-1 Second Edition, IEC/EN60950-1: 2006 +A11: 2009 +A1: 2010 +A12: 2011 +A2: 2013, EN 55032: 2015 Class A, CISPR 32: 2015 Class A, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60825-1: 2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018
Localization: English / United States
Width: 17.4 in
Depth: 13.8 in
Height: 1.7 in
Weight: 10.36 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 15 - 95% (40 °C)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
COO: CHINA
TAA compliance: No
Unit of Measure
Item Weight
14.55Ships via UPS
YBrand
HP
