HP e Networking Instant On 1930 8g 2sfp Switch Us (JL680A#ABA)
Model: JL680A#ABA
HP e Networking Instant On 1930 8g 2sfp Switch Us (JL680A#ABA)
Model: JL680A#ABA
-

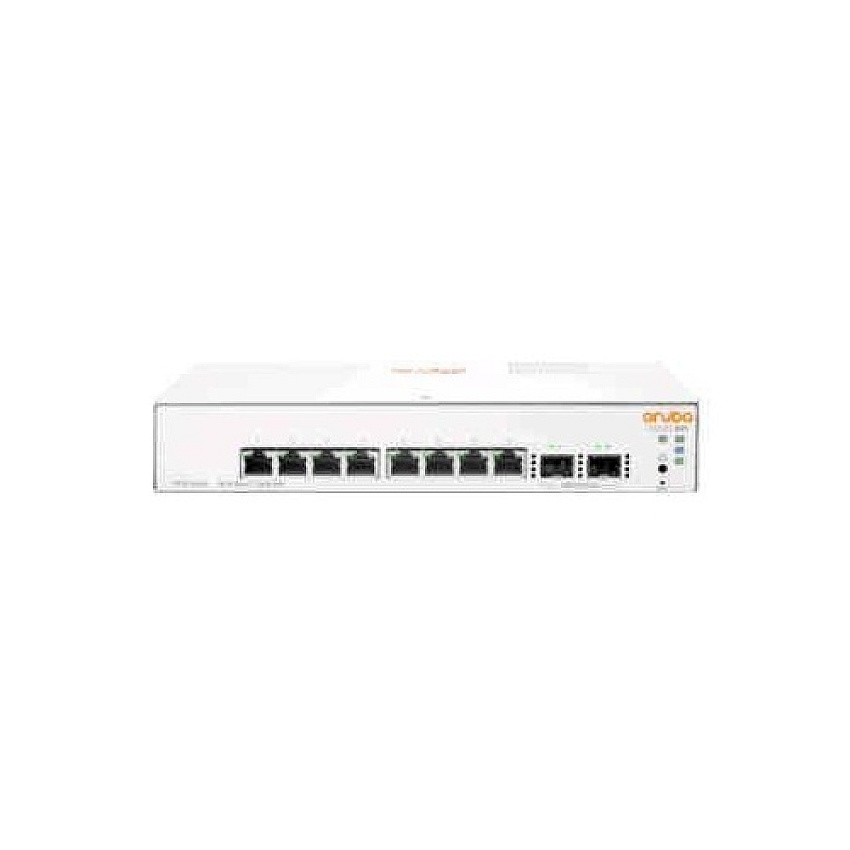

HPE Networking Instant On 1930 8G 2SFP Switch US
-
In Stock
Product Description
HPE Networking Instant On 1930 8G 2SFP Switch US
Product Specs
Manufacturer
HPManufacturer Stock No.
JL680A#ABAMPN
HPEJL680AABAModel#
JL680A#ABAUPC Code
190017355023UNSPSC Code
0Information
Product Description: HPE Networking Instant On 1930 8G 2SFP Switch - switch - 10 ports - managedDevice Type: Switch - 10 ports - L3 - managed
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 + 2 x Gigabit SFP
Performance: Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 3 µs
Capacity: Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Features: Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 10 in x 6.3 in x 1.7 in
Weight: 28.92 oz
Localization: English / United States
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 10 ports - L3 - managed
Enclosure Type: Desktop
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 + 2 x Gigabit SFP
Performance: Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 3 µs
Capacity: Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Encryption Algorithm: SSL
Authentication Method: RADIUS
Features: Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor: 1 x ARM Cortex-A9: 800 MHz
RAM: 512 MB SDRAM
Flash Memory: 256 MB
Status Indicators: Port status, power
Interfaces: 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x Gigabit LAN SFP
Power Device: External power adapter
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 11 Watt
MTBF: 178 years
Compliant Standards: VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024: 2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1: 2014, EN 55032: 2015+AC: 2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035: 2017
Localization: English / United States
Width: 10 in
Depth: 6.3 in
Height: 1.7 in
Weight: 28.92 oz
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 15 - 95% (40 °C)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (60 °C)
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
4.9Ships via UPS
