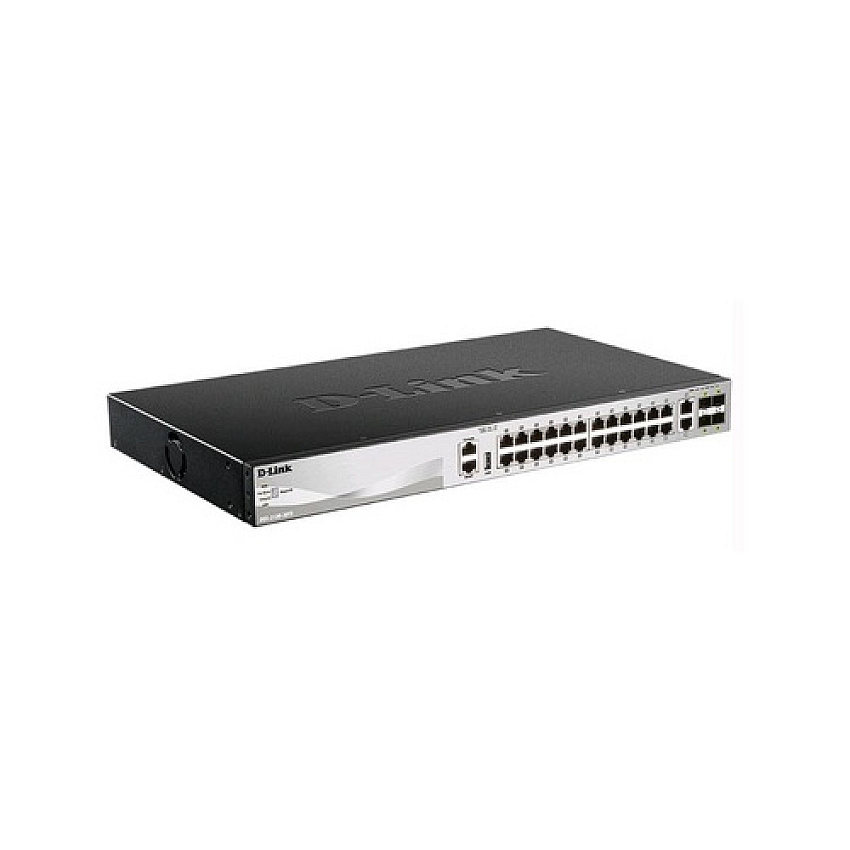

D-Link 24-port Mngd Lite L3 Switch (DGS313030TS)
Model: DGS313030TS
D-Link 24-port Mngd Lite L3 Switch (DGS313030TS)
Model: DGS313030TS
-
24-PORT MNGD LITE L3 SWITCH
-
In Stock
Product Description
DGS-3130 Series 30-Port L2+ Fully Managed Gigabit Switch
Product Specs
Manufacturer
D-LinkCategories
D-Link Computer AccessoriesD-Link Networking, Cables & AccessoriesD-Link Network SwitchesManufacturer Stock No.
DGS-3130-30TSMPN
DLIDGS313030TSModel#
DGS313030TSUPC Code
790069435256UNSPSC Code
0Information
Product Description: D-Link DGS 3130-30TS - switch - 30 ports - managed - rack-mountableDevice Type: Switch - 30 ports - L3 Lite - managed - stackable
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 4 x 10 Gigabit SFP+
Performance: Switching capacity: 168 Gbps ¦ Forwarding performance (64-byte packet size): 125 Mpps
Capacity: Packet buffer size: 2 MB ¦ Units per virtual stack: up to 32 ¦ IGMP groups: 1024 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues: 8
MAC Address Table Size: 16384 entries
Jumbo Frame Support: 9KB
Routing Protocol: RIP-1, RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI, NTP
Features: Flow control, BOOTP support, ARP support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, FTP server, MLD snooping, Cable Diagnostics Function, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Dynamic VLAN Support (GVRP), Neighbor Discovery Protocol (NDP), Strict Priority (SP), tagged VLAN, TFTP client, Single IP Management (SIM), Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), Storm Control, system log, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), 6KV Surge protection, Link Aggregation, Management Information Base (MIB) II, VLAN Double Tagging (Q-in-Q), Web-based Access Control (WAC), DNS client, 1 fan, Private VLAN, Ethernet OAM, proxy ARP, Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, ARP spoofing, Dying Gasp, VLAN trunking, Root Restriction, Asymmetric VLAN, security slot (Kensington security lock compatible), Committed Information Rate (CIR)
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az, ITU-T G.8032
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.3 in x 9.8 in x 1.7 in
Weight: 6.57 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 30 ports - L3 Lite - managed - stackable
Enclosure Type: Desktop, rack-mountable
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 4 x 10 Gigabit SFP+
Performance: Switching capacity: 168 Gbps ¦ Forwarding performance (64-byte packet size): 125 Mpps
Capacity: Packet buffer size: 2 MB ¦ Units per virtual stack: up to 32 ¦ IGMP groups: 1024 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues: 8
MAC Address Table Size: 16384 entries
Jumbo Frame Support: 9KB
Max Units In A Stack: 12
Routing Protocol: RIP-1, RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI, NTP
Encryption Algorithm: SSL, SSL 3.0, SSL 2.0
Authentication Method: RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features: Flow control, BOOTP support, ARP support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, FTP server, MLD snooping, Cable Diagnostics Function, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Dynamic VLAN Support (GVRP), Neighbor Discovery Protocol (NDP), Strict Priority (SP), tagged VLAN, TFTP client, Single IP Management (SIM), Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), Storm Control, system log, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), 6KV Surge protection, Link Aggregation, Management Information Base (MIB) II, VLAN Double Tagging (Q-in-Q), Web-based Access Control (WAC), DNS client, 1 fan, Private VLAN, Ethernet OAM, proxy ARP, Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, ARP spoofing, Dying Gasp, VLAN trunking, Root Restriction, Asymmetric VLAN, security slot (Kensington security lock compatible), Committed Information Rate (CIR)
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az, ITU-T G.8032
Interfaces: 24 x 10/100/1000 Base-T RJ-45 ¦ 2 x 10GBase-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x USB 2.0 Type A
Power Device: Internal power supply - hot-plug
Power Redundancy: Optional
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 30.76 Watt
MTBF: 900,546 hours
Compliant Standards: FCC Class A certified, BSMI, cUL, CB, CCC, IC, VCCI Class A, RCM
Width: 17.3 in
Depth: 9.8 in
Height: 1.7 in
Weight: 6.57 lbs
Service & Support: Limited warranty - replacement - lifetime - response time: next business day
Min Operating Temperature: 32 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 10 - 90%
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 90%
COO: TAIWAN
TAA compliance: Yes
