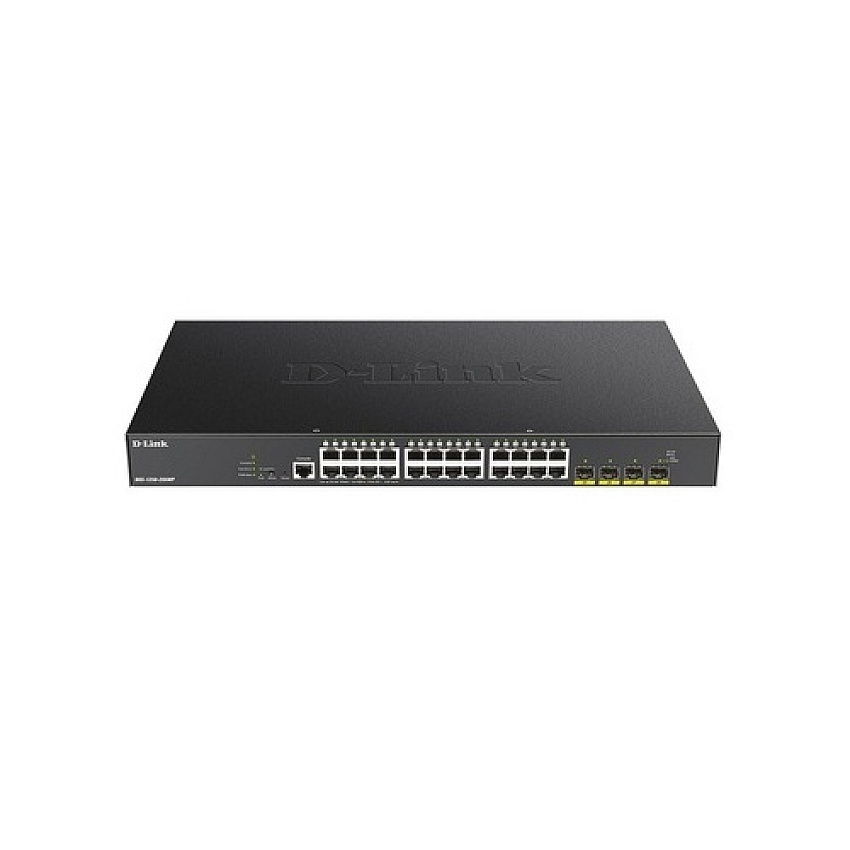

D-Link Dgs-1250-28xmp-6kv Smart Managed Gigabit Poe Switch With 10-gigabit Uplinks (DGS125028XMP6KV)
Model: DGS125028XMP6KV
D-Link Dgs-1250-28xmp-6kv Smart Managed Gigabit Poe Switch With 10-gigabit Uplinks (DGS125028XMP6KV)
Model: DGS125028XMP6KV
-
D-Link DGS-1250-28XMP-6KV Smart Managed Gigabit PoE Switch with 10-Gigabit Uplinks
-
In Stock
Product Description
D-Link DGS-1250-28XMP-6KV supports 24 x 1 Gigabit Ethernet PoE ports 4 x 10G SFP+ ports for high speed uplink connections. Power Budget 370 W (30 W per port) The D-Link DGS-1250 Series Smart Managed Switches are the latest generation of switches to prov
Product Specs
Manufacturer
D-LinkCategories
D-Link Computer AccessoriesD-Link Networking, Cables & AccessoriesD-Link Network SwitchesManufacturer Stock No.
DGS-1250-28XMP-6KVMPN
DLIDGS125028XMP6KVModel#
DGS125028XMP6KVUPC Code
790069458828UNSPSC Code
0Information
Product Description: D-Link DGS 1250-28XMP-6KV - switch - 28 ports - smart - rack-mountableManufacturer Warranty: Limited lifetime warranty
Features: Flow control, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Safeguard Engine, reset button, Cable Diagnostics Function, LACP support, LLDP support, Port Security, SNMP trap, DHCP client, Neighbor Discovery Protocol (NDP), Multicast filtering function, 802.1x authentication, Type of Service (ToS), VoIP support, DiffServ Code Point (DSCP) support, ARP inspection, 6KV Surge protection, Management Information Base (MIB) II, dual image support, Voice VLAN, LLDP-MED, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, One-Time Password (OTP), D-Link Discovery Protocol (DDP), ARP spoofing, Green Technology
Dimensions (WxDxH): 9.8 in x 17.3 in x 1.7 in
Weight: 7.63 lbs
Power: AC 120/230 V (50/60 Hz)
Device Type: Switch - 28 ports - smart
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Capacity: MAC address entries: 256 ¦ Packet buffer size: 12 Mbit ¦ IGMP groups: 256 ¦ VLAN groups: 4094
Remote Management Protocol: SNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, ICMP, RSTP, RADIUS
Enclosure Type: Rack-mountable
Routing Protocol: IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Performance: Switching capacity: 128 Gbps ¦ Forwarding rate (64 byte packets): 95.24 Mpps
Power Over Ethernet (PoE): PoE+
MAC Address Table Size: 16K entries
Ports: 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Jumbo Frame Support: 12000 bytes
PoE Budget: 370 W
Subtype: Gigabit Ethernet
Features: Flow control, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Safeguard Engine, reset button, Cable Diagnostics Function, LACP support, LLDP support, Port Security, SNMP trap, DHCP client, Neighbor Discovery Protocol (NDP), Multicast filtering function, 802.1x authentication, Type of Service (ToS), VoIP support, DiffServ Code Point (DSCP) support, ARP inspection, 6KV Surge protection, Management Information Base (MIB) II, dual image support, Voice VLAN, LLDP-MED, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, One-Time Password (OTP), D-Link Discovery Protocol (DDP), ARP spoofing, Green Technology
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Device Type: Switch - 28 ports - smart
Enclosure Type: Rack-mountable
Status Indicators: Power, link/activity/speed
Remote Management Protocol: SNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, ICMP, RSTP, RADIUS
RAM: 2 GB DDR3 SDRAM
Capacity: MAC address entries: 256 ¦ Packet buffer size: 12 Mbit ¦ IGMP groups: 256 ¦ VLAN groups: 4094
Flash Memory: 64 MB
MAC Address Table Size: 16K entries
Encryption Algorithm: MD5, PEAP, TTLS, TLS 1.2
Routing Protocol: IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Performance: Switching capacity: 128 Gbps ¦ Forwarding rate (64 byte packets): 95.24 Mpps
Power Over Ethernet (PoE): PoE+
Ports: 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Jumbo Frame Support: 12000 bytes
PoE Budget: 370 W
Subtype: Gigabit Ethernet
Interfaces: 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP+
Service & Support: Limited warranty - advance hardware replacement - lifetime - response time: next business day
Compliant Standards: FCC Class A certified, UL, BSMI, CB, CCC, IC, VCCI Class A
MTBF: 463,430.16 hours
Power Device: Internal power supply
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 455.1 Watt
Power Consumption Stand by: 19 Watt
Min Operating Temperature: 23 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 0 - 95%
Min Storage Temperature: -4 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 0 - 95%
Width: 9.8 in
Depth: 17.3 in
Height: 1.7 in
Weight: 7.63 lbs
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
10.1Ships via UPS
YBrand
D-Link
