D-Link Dgs-1520-28mp Smart Poe Switch (DGS152028MP)
Model: DGS152028MP
D-Link Dgs-1520-28mp Smart Poe Switch (DGS152028MP)
Model: DGS152028MP
-

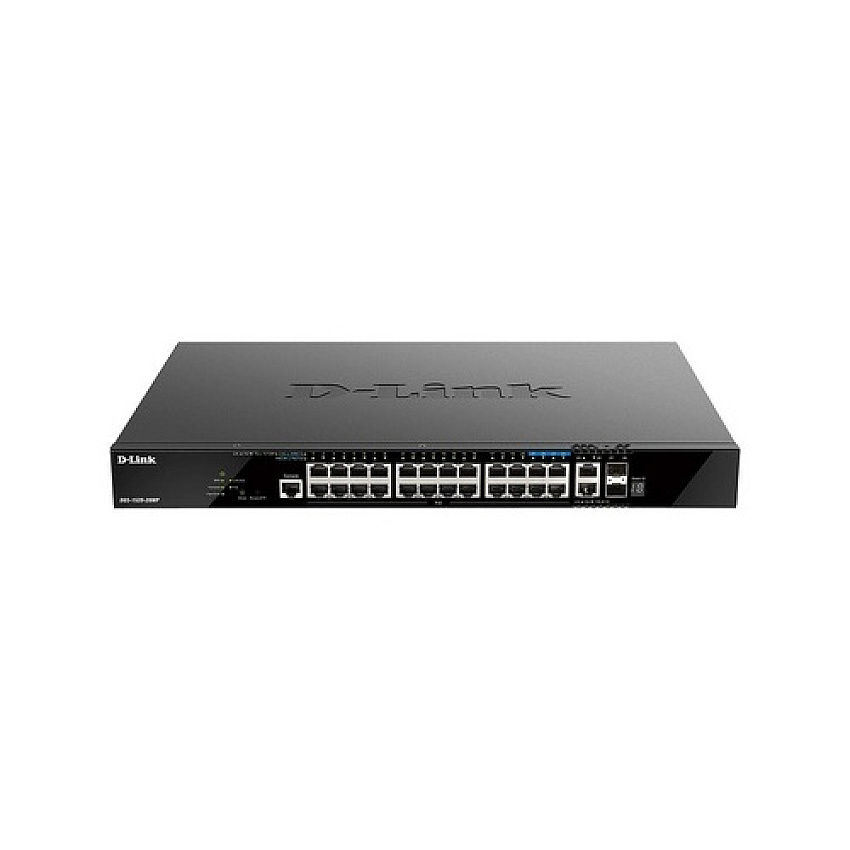

D-Link DGS-1520-28MP Smart PoE Switch
-
In Stock
Product Description
D-Link DGS-1520-28MP Smart PoE Switch. 20 x 1G PoE Ports. 4 x 2.5G Base-T PoE Port. 2 x 10G Base-T Ports. 2 x 10G SFP+ Ports. PoE power Budget of 370W, 740W (with RPS)
Product Specs
Manufacturer
D-LinkCategories
D-Link Computer AccessoriesD-Link Networking, Cables & AccessoriesD-Link Network SwitchesManufacturer Stock No.
DGS-1520-28MPMPN
DLIDGS152028MPModel#
DGS152028MPUPC Code
790069454776UNSPSC Code
0Information
Product Description: D-Link DGS 1520-28MP - switch - 28 ports - smart - rack-mountableDevice Type: Switch - 28 ports - L3 - smart - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 20 x 10/100/1000 (PoE+) + 4 x 2.5G (PoE+) + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
PoE Budget: 370 W
Performance: Switching capacity: 140 Gbps ¦ Forwarding performance: 104.16 Mpps ¦ Stacking bandwidth: 80 Gbps
Capacity: IGMP groups: 512 ¦ MLD groups: 256 ¦ VLAN groups: 4000 ¦ Static ARP entries: 256
MAC Address Table Size: 16384 entries
Jumbo Frame Support: 12288 bytes
Routing Protocol: OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, PIM-SSM, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Features: IGMP snooping, port mirroring, store and forward, WRED, STP support, VRRP support, MSTP support, QoS, RSPAN, CoS, GVRP, DoS, ERPS, BPDU, Link Aggregation, OSPF, Root Guard, Loop Guard, ERPS v2, flow mirroring, VLAN mirroring, WDRR, Voice VLAN, Private VLAN, ZTP, EEE, BPDU Filter, WRR, loopback detection, NTP 3, NTP 4, D-Link DDP, RSTP, VLAN trunking, DNA support, MDI, MDI-X
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 12.1 in x 1.7 in
Weight: 9.46 lbs
Device Type: Switch - 28 ports - L3 - smart - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 20 x 10/100/1000 (PoE+) + 4 x 2.5G (PoE+) + 2 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
PoE Budget: 370 W
Performance: Switching capacity: 140 Gbps ¦ Forwarding performance: 104.16 Mpps ¦ Stacking bandwidth: 80 Gbps
Capacity: IGMP groups: 512 ¦ MLD groups: 256 ¦ VLAN groups: 4000 ¦ Static ARP entries: 256
MAC Address Table Size: 16384 entries
Jumbo Frame Support: 12288 bytes
Max Units In A Stack: 8
Routing Protocol: OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, PIM-SSM, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Encryption Algorithm: SSL, TLS 1.0, TLS 1.1, TLS 1.2
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features: IGMP snooping, port mirroring, store and forward, WRED, STP support, VRRP support, MSTP support, QoS, RSPAN, CoS, GVRP, DoS, ERPS, BPDU, Link Aggregation, OSPF, Root Guard, Loop Guard, ERPS v2, flow mirroring, VLAN mirroring, WDRR, Voice VLAN, Private VLAN, ZTP, EEE, BPDU Filter, WRR, loopback detection, NTP 3, NTP 4, D-Link DDP, RSTP, VLAN trunking, DNA support, MDI, MDI-X
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb
Status Indicators: Power, PoE, link/activity, fan, stack
Interfaces: 20 x 1000Base-T RJ-45 PoE+ ¦ 4 x 2.5GBase-T RJ-45 PoE+ ¦ 2 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+
Power Device: Internal power supply
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 453.3 Watt
MTBF: 333946 hours
Compliant Standards: FCC Class A certified, IC Class A, BSMI Class A, VCCI Class A, RCM Class A
Width: 17.4 in
Depth: 12.1 in
Height: 1.7 in
Weight: 9.46 lbs
Min Operating Temperature: 23 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 10 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 95% (non-condensing)
COO: TAIWAN
TAA compliance: Yes
