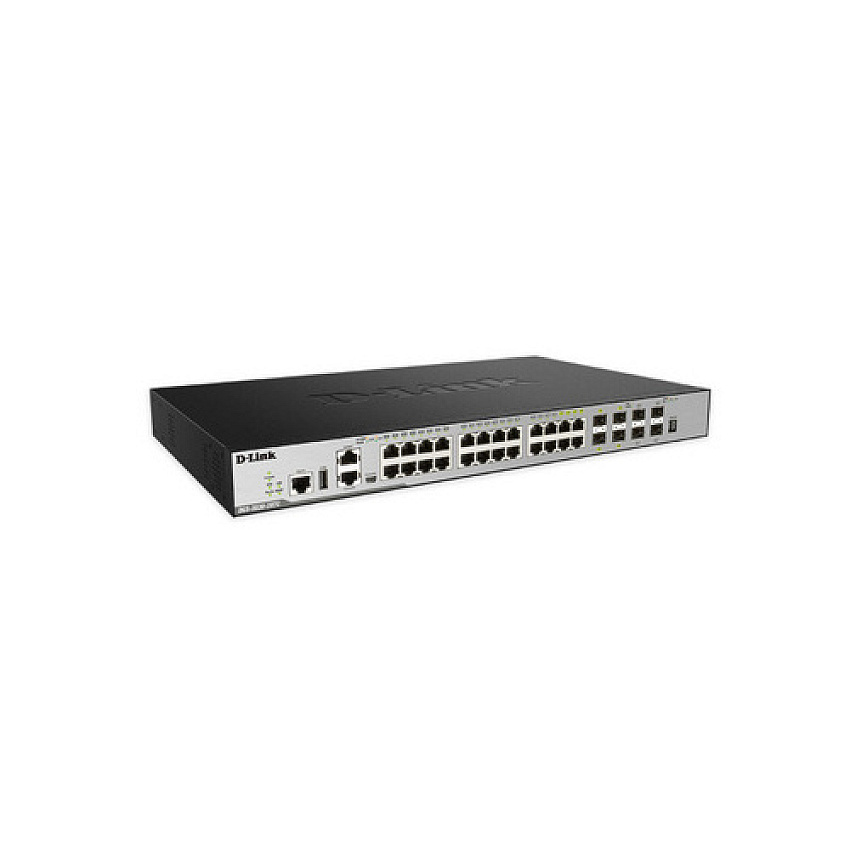

D-Link Dgs-3630-28tc 20 X 1gb Base-t Ports, 4 X Combo 10/100/1000base-t/sfp Ports, And 4 X 10 Gbe Sfp+ Ports L3 Fully Managed (DGS363028TC/SI)
Model: DGS363028TC/SI
D-Link Dgs-3630-28tc 20 X 1gb Base-t Ports, 4 X Combo 10/100/1000base-t/sfp Ports, And 4 X 10 Gbe Sfp+ Ports L3 Fully Managed (DGS363028TC/SI)
Model: DGS363028TC/SI
-
DGS-3630-28TC 20 x 1GB BASE-T ports, 4 x Combo 10/100/1000BASE-T/SFP ports, and 4 x 10 GbE SFP+ ports L3 Fully Managed
-
In Stock
Product Description
DGS-3630-28TC 20 x 1GB BASE-T ports, 4 x Combo 10/100/1000BASE-T/SFP ports, and 4 x 10 GbE SFP+ ports L3 Fully Managed
Product Specs
Manufacturer
D-LinkCategories
D-Link Computer AccessoriesD-Link Networking, Cables & AccessoriesD-Link Network SwitchesManufacturer Stock No.
DGS-3630-28TC/SIMPN
DLIDGS363028TCSIModel#
DGS363028TC/SIUPC Code
790069425622UNSPSC Code
0Information
Product Description: D-Link DGS 3630-28TC - switch - 28 ports - managed - rack-mountableDevice Type: Switch - 28 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable
Ports: 20 x 10/100/1000 + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+
Performance: Switching capacity: 128 Gbps ¦ Forwarding performance: 95.24 Mpps ¦ Stacking bandwidth: 80 Gbps
Capacity: IPv4 routing table entries: 16000 ¦ IPv6 routing table entries: 7000 ¦ IPv4 forwarding table entries: 32000 ¦ IPv6 forwarding table entries: 16000 ¦ VLAN groups: 4000 ¦ Dynamic VLAN entries: 4000 ¦ Static ARP entries: 512 ¦ IPv4 routes (static): 512 ¦ IPv6 routes (static): 256 ¦ QoS hardware queues per port: 8 ¦ ACL entries (egress): 4000 ¦ ACL entries (ingress): 1000
MAC Address Table Size: 68K entries
Jumbo Frame Support: 12KB
Routing Protocol: BGP-4, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), DVMRPv3, RIPng, MLDv2, MLD, BGP-4+, VRRPv2, Bidirectional Forwarding Detection (BFD), VRRPv3, URPF
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI
Features: ARP support, IGMP snooping, DoS attack prevention, packet filtering, port mirroring, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, PIM snooping, tunneling, DHCP snooping, ACL support, QoS, IP Precedence, DHCP server, VRF-Lite, MLD snooping, DAI, Safeguard Engine, Cable Diagnostics Function, bandwidth control, LLDP support, Port Security, RSPAN, SNMP trap, DHCP client, Energy Efficient Ethernet, GVRP, SP, Loopback, TFTP client, 4MB packet buffer, 802.1x authentication, Duplicated Address Detection, TRTCM, ToS, PTP, DSCP support, 2 fans, IGMP filtering, SRTCM, IP source guard, Head of Line Blocking Prevention, host based access control, PFC, VTP, BPDU, Link Aggregation, MIB II, SSM, DDM, NTP, AAA, VLAN Double Tagging (Q-in-Q), Loop Guard, ERPS v2, VLAN mirroring, MLD filtering, WAC, SRM
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qbb
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 10.2 in x 1.7 in
Weight: 8.25 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 28 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable
Ports: 20 x 10/100/1000 + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+
Performance: Switching capacity: 128 Gbps ¦ Forwarding performance: 95.24 Mpps ¦ Stacking bandwidth: 80 Gbps
Capacity: IPv4 routing table entries: 16000 ¦ IPv6 routing table entries: 7000 ¦ IPv4 forwarding table entries: 32000 ¦ IPv6 forwarding table entries: 16000 ¦ VLAN groups: 4000 ¦ Dynamic VLAN entries: 4000 ¦ Static ARP entries: 512 ¦ IPv4 routes (static): 512 ¦ IPv6 routes (static): 256 ¦ QoS hardware queues per port: 8 ¦ ACL entries (egress): 4000 ¦ ACL entries (ingress): 1000
MAC Address Table Size: 68K entries
Jumbo Frame Support: 12KB
Max Units In A Stack: 9
Routing Protocol: BGP-4, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), DVMRPv3, RIPng, MLDv2, MLD, BGP-4+, VRRPv2, Bidirectional Forwarding Detection (BFD), VRRPv3, URPF
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI
Encryption Algorithm: MD5, SSL, TLS 1.0, TLS 1.1
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features: ARP support, IGMP snooping, DoS attack prevention, packet filtering, port mirroring, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, PIM snooping, tunneling, DHCP snooping, ACL support, QoS, IP Precedence, DHCP server, VRF-Lite, MLD snooping, DAI, Safeguard Engine, Cable Diagnostics Function, bandwidth control, LLDP support, Port Security, RSPAN, SNMP trap, DHCP client, Energy Efficient Ethernet, GVRP, SP, Loopback, TFTP client, 4MB packet buffer, 802.1x authentication, Duplicated Address Detection, TRTCM, ToS, PTP, DSCP support, 2 fans, IGMP filtering, SRTCM, IP source guard, Head of Line Blocking Prevention, host based access control, PFC, VTP, BPDU, Link Aggregation, MIB II, SSM, DDM, NTP, AAA, VLAN Double Tagging (Q-in-Q), Loop Guard, ERPS v2, VLAN mirroring, MLD filtering, WAC, SRM
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qbb
Status Indicators: Status
Interfaces: 24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x USB 2.0 Type A ¦ 1 x alarm RJ-45 ¦ 1 x console (mini-USB)
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 42.4 Watt
MTBF: 300,190 hours
Compliant Standards: FCC Class A certified, VCCI, C-Tick, BSMI, cUL, CB, CCC, ITU Y.1731
Software Included: Standard Image (SI) Software
Width: 17.4 in
Depth: 10.2 in
Height: 1.7 in
Weight: 8.25 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 23 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 10 - 95%
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 95%
COO: TAIWAN
TAA compliance: Yes
