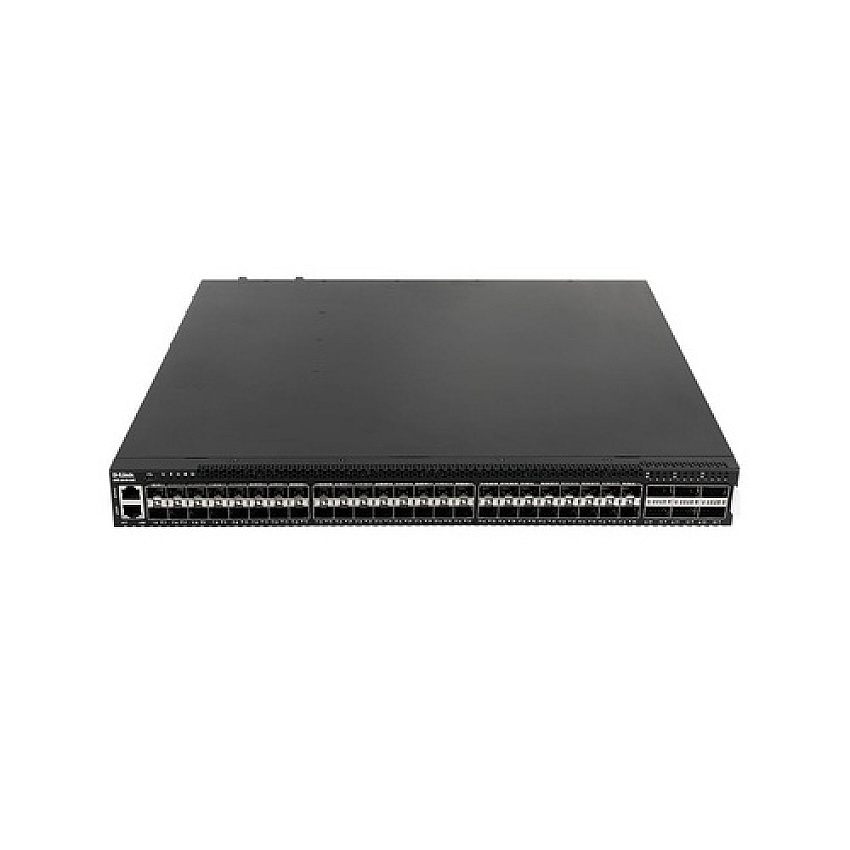

D-Link 54 Port Switch With Optical Sfp + 10g Fully Managed W/ 6x 100g Sfp Ports (DXS361054S/SI)
Model: DXS361054S/SI
D-Link 54 Port Switch With Optical Sfp + 10g Fully Managed W/ 6x 100g Sfp Ports (DXS361054S/SI)
Model: DXS361054S/SI
-
54 port switch with Optical SFP + 10G Fully Managed w/ 6x 100G SFP ports
-
In Stock
Product Description
54 port with 48 port Optical SFP + 10G Fully Managed w/ 6x 100G SFP ports (QSFP+/QSFP28) Stackable
Product Specs
Manufacturer
D-LinkCategories
D-Link Computer AccessoriesD-Link Networking, Cables & AccessoriesD-Link Network SwitchesManufacturer Stock No.
DXS-3610-54S/SIMPN
DLIDXS361054SSIModel#
DXS361054S/SIUPC Code
790069452116UNSPSC Code
0Information
Product Description: D-Link DXS 3610-54S - switch - 54 ports - managed - rack-mountableDevice Type: Switch - 54 ports - L3 - managed - stackable
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
Performance: Switching capacity: 2.16 Tbps ¦ Forwarding rate: 1.60704 Gpps
Capacity: Packet buffer size: 32 MB ¦ IPv4 routes (static): up to 32000 ¦ IPv6 routes (static): up to 16000 ¦ IPv4 forwarding entries: up to 144000 ¦ IPv6 forwarding entries: up to 144000
MAC Address Table Size: 288K entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, DVMRPv3, MLDv2, MLD, VRRPv2, MPLS, VRRPv3, MSTP, RSTP, STP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, SMTP
Features: DoS attack prevention, SNTP support, sFlow, DHCP snooping, QoS, MPLS VPN, LLDP support, DNS relay, VRF, NDP, VCCV, GVRP, SNMP support, GRE, ToS, DSCP support, ERPS, 5 fans, OpenFlow support, VPLS, PFC, BPDU, LDP, ERPS v2, WDRR, SRM, LLDP-MED, Ethernet OAM, WRR, MAC based VLAN, loopback detection, port-based VLAN, D-Link DDP, CIR, Microsoft NLB
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1Qbb, ITU-T Y.1731
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 17.4 in x 19.2 in x 1.7 in
Weight: 21.61 lbs
Device Type: Switch - 54 ports - L3 - managed - stackable
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
Performance: Switching capacity: 2.16 Tbps ¦ Forwarding rate: 1.60704 Gpps
Capacity: Packet buffer size: 32 MB ¦ IPv4 routes (static): up to 32000 ¦ IPv6 routes (static): up to 16000 ¦ IPv4 forwarding entries: up to 144000 ¦ IPv6 forwarding entries: up to 144000
MAC Address Table Size: 288K entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, DVMRPv3, MLDv2, MLD, VRRPv2, MPLS, VRRPv3, MSTP, RSTP, STP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, SMTP
Encryption Algorithm: SSL, TLS 1.2
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features: DoS attack prevention, SNTP support, sFlow, DHCP snooping, QoS, MPLS VPN, LLDP support, DNS relay, VRF, NDP, VCCV, GVRP, SNMP support, GRE, ToS, DSCP support, ERPS, 5 fans, OpenFlow support, VPLS, PFC, BPDU, LDP, ERPS v2, WDRR, SRM, LLDP-MED, Ethernet OAM, WRR, MAC based VLAN, loopback detection, port-based VLAN, D-Link DDP, CIR, Microsoft NLB
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1Qbb, ITU-T Y.1731
Interfaces: 48 x 10GBase-X SFP+ ¦ 6 x 100Gbit/40Gbit LAN QSFP28/QSFP+ ¦ 1 x console RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x alarm ¦ 1 x micro-USB 2.0 Type A
Power Device: Internal power supply - hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Stand by: 120.6 Watt
Included Accessories: 4 rubber feet, 2 x 19" mounting brackets
Cables Included: 1 x console cable ¦ 1 x micro-USB cable
Rack Mounting Kit: Included
MTBF: 94,262 hours
Compliant Standards: VCCI, C-Tick, cUL, CB, IC, FCC, LVD
Width: 17.4 in
Depth: 19.2 in
Height: 1.7 in
Weight: 21.61 lbs
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 0 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 0 - 95% (non-condensing)
COO: CHINA
TAA compliance: No
