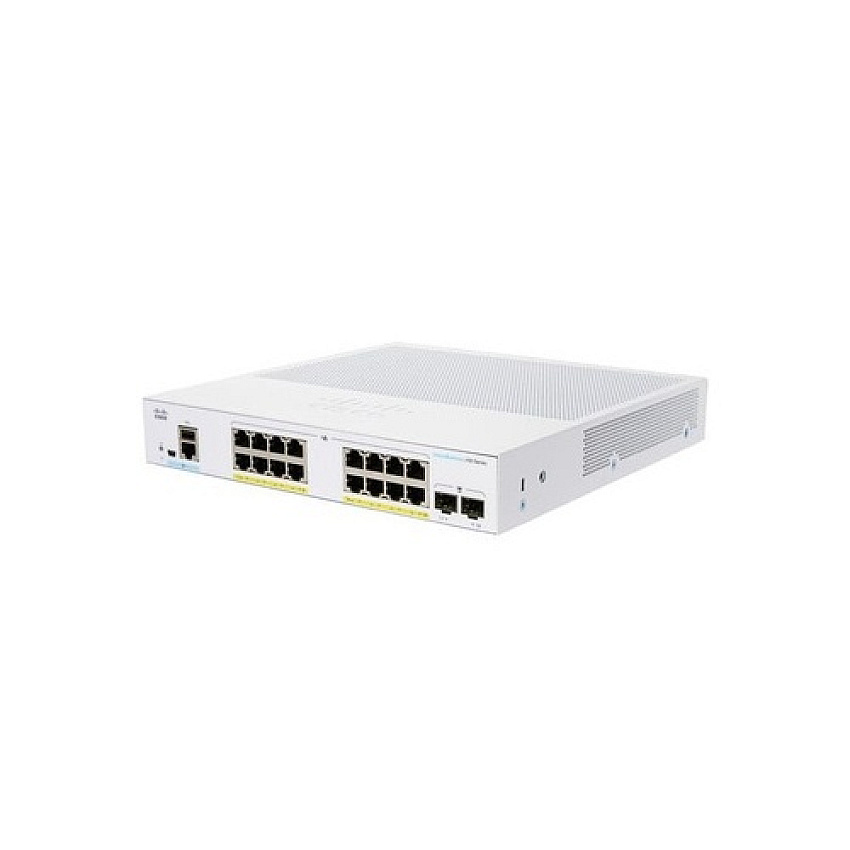

Cisco Cbs250 Smart 16-port Ge, Poe, 2x1g Sfp (CBS25016P2GNA)
Model: CBS25016P2GNA
Cisco Cbs250 Smart 16-port Ge, Poe, 2x1g Sfp (CBS25016P2GNA)
Model: CBS25016P2GNA
-
CBS250 SMART 16-PORT GE, POE, 2X1G SFP
-
Out Of Stock
Product Description
CBS250 Smart 16-port GE, PoE, 2x1G SFP
Product Specs
Manufacturer
CiscoManufacturer Stock No.
CBS250-16P-2G-NAMPN
CSCCBS25016P2GNAModel#
CBS25016P2GNAUPC Code
889728296052UNSPSC Code
0Information
Product Description: Cisco Business 250 Series CBS250-16P-2G - switch - 16 ports - smart - rack-mountableDevice Type: Switch - 16 ports - L3 - smart
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE): PoE+
PoE Budget: 120 W
Performance: Forwarding performance (64-byte packet size): 26.78 Mpps ¦ Switching capacity: 36 Gbps
Capacity: RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 255 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size: 8K entries
Jumbo Frame Support: 2KB
Routing Protocol: IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, RADIUS
Features: Flow control, BOOTP support, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DDos attack prevention, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), reset button, fanless, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, SmartPort technology, dual image support, VLAN mirroring, DNS client, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, Secure Sensitive Data (SSD), ISATAP tunnel support, User Datagram Protocol (UDP), STP loop guard, Denial of Service (DoS) protection, Weighted Round Robin (WRR), loopback detection, Unknown Storm Control, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 10.6 in x 11.7 in x 1.7 in
Weight: 5.25 lbs
Localization: Colombia, Canada, Chile, Mexico, Latin America, United States
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 16 ports - L3 - smart
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE): PoE+
PoE Budget: 120 W
Performance: Forwarding performance (64-byte packet size): 26.78 Mpps ¦ Switching capacity: 36 Gbps
Capacity: RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 255 ¦ ACL rules: 512 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size: 8K entries
Jumbo Frame Support: 2KB
Routing Protocol: IGMPv2, IGMP, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, RADIUS
Encryption Algorithm: SSL
Authentication Method: Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Features: Flow control, BOOTP support, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DDos attack prevention, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), reset button, fanless, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, SmartPort technology, dual image support, VLAN mirroring, DNS client, Secure Core Technology (SCT), LLDP-MED, Head-of-line (HOL) blocking, Secure Sensitive Data (SSD), ISATAP tunnel support, User Datagram Protocol (UDP), STP loop guard, Denial of Service (DoS) protection, Weighted Round Robin (WRR), loopback detection, Unknown Storm Control, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor: X ARM: 800 MHz
RAM: 512 MB
Flash Memory: 256 MB
Status Indicators: Status, PoE, link/activity/speed
Interfaces: 16 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45
Power Device: Internal power supply
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 156.4 Watt
Rack Mounting Kit: Included
MTBF: 706,983 hours
Compliant Standards: UL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6
Localization: Colombia, Canada, Chile, Mexico, Latin America, United States
Width: 10.6 in
Depth: 11.7 in
Height: 1.7 in
Weight: 5.25 lbs
Service & Support: Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature: 23 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Min Storage Temperature: -13 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 10 - 90% (non-condensing)
COO: CHINA
TAA compliance: No
