Nvidia Spectrum-2 Based 100gbe 1u Open Ethernet (MSN3700CS2RC)
Nvidia Spectrum-2 Based 100gbe 1u Open Ethernet (MSN3700CS2RC)
-
SPECTRUM-2 BASED 100GBE 1U OPEN ETHERNET
-
Out Of Stock
Product Description

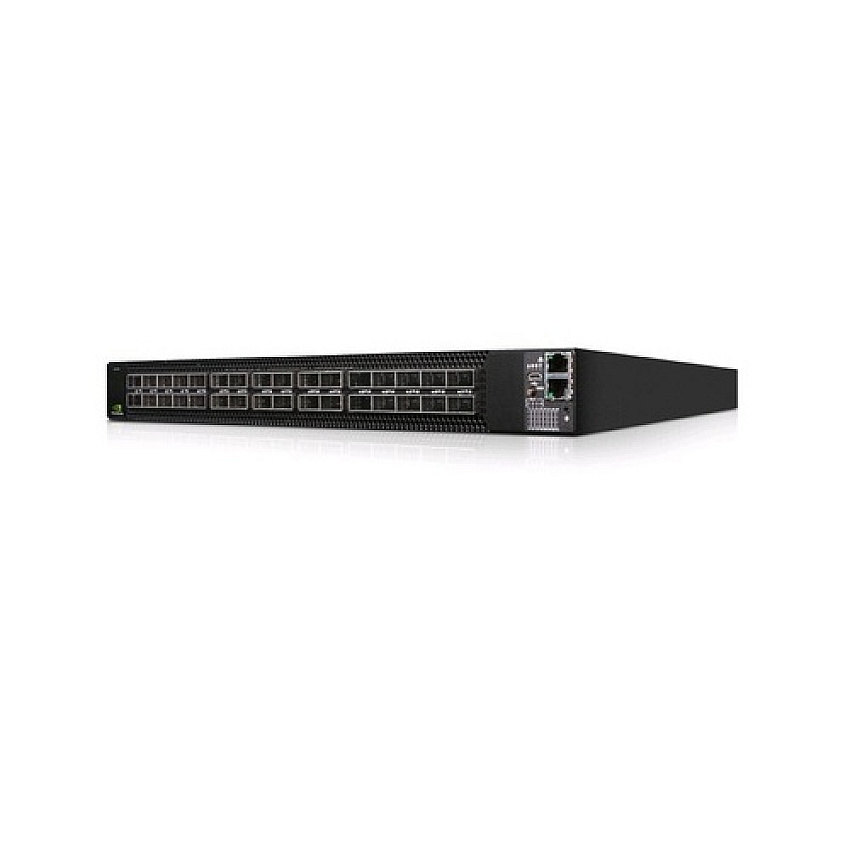

Mellanox Spectrum-2 based 100GbE 1U Open Ethernet Switch with Cumulus Linux, 32 QSFP28 ports, 2 Power Supplies (AC), x86 CPU, standard depth, C2P airflow, Rail Kit
Product Specs
Manufacturer
NvidiaCategories
Nvidia Computer AccessoriesNvidia Networking, Cables & AccessoriesNvidia Network SwitchesManufacturer Stock No.
MSN3700-CS2RCMPN
MLNMSN3700CS2RCModel#
MSN3700CS2RCUNSPSC Code
0Information
Product Description: Mellanox Spectrum-2 MSN3700C - switch - 32 ports - managed - rack-mountableDevice Type: Switch - 32 ports - L3 - managed
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 32 x 100 Gigabit QSFP28
Performance: Throughput: 6.4 Tbps ¦ Latency: 400 ns ¦ Packets per second: 4.76 Bpps
Capacity: Packet buffer size: 42 MB
Jumbo Frame Support: 9216 bytes
Routing Protocol: BGP, VRRP, OSPFv2, static IPv4 routing
Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, CLI
Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, LACP support, LLDP support, DHCP relay, non blocking ports, hot swappable 3 fans, PFC
Compliant Standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz
Power: AC 100 - 264 V (50/60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 16.9 in x 22 in x 1.7 in
Weight: 24.47 lbs
Device Type: Switch - 32 ports - L3 - managed
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 32 x 100 Gigabit QSFP28
Performance: Throughput: 6.4 Tbps ¦ Latency: 400 ns ¦ Packets per second: 4.76 Bpps
Capacity: Packet buffer size: 42 MB
Jumbo Frame Support: 9216 bytes
Routing Protocol: BGP, VRRP, OSPFv2, static IPv4 routing
Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, CLI
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP
Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, LACP support, LLDP support, DHCP relay, non blocking ports, hot swappable 3 fans, PFC
Compliant Standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz
RAM: 8 GB
Built-in Devices: 32 GB SSD
Interfaces: 32 x 100Gbit LAN QSFP28 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x USB ¦ 1 x serial RJ-45
Power Device: Internal power supply - hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 100 - 264 V (50/60 Hz)
Included Accessories: Rack rails kit
Compliant Standards: VCCI, CB, FCC, ICES, cTUVus, RCM
Software Included: Cumulus Linux
Width: 16.9 in
Depth: 22 in
Height: 1.7 in
Weight: 24.47 lbs
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 85%
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
COO: TAIWAN / ISRAEL / INDIA
TAA compliance: No
