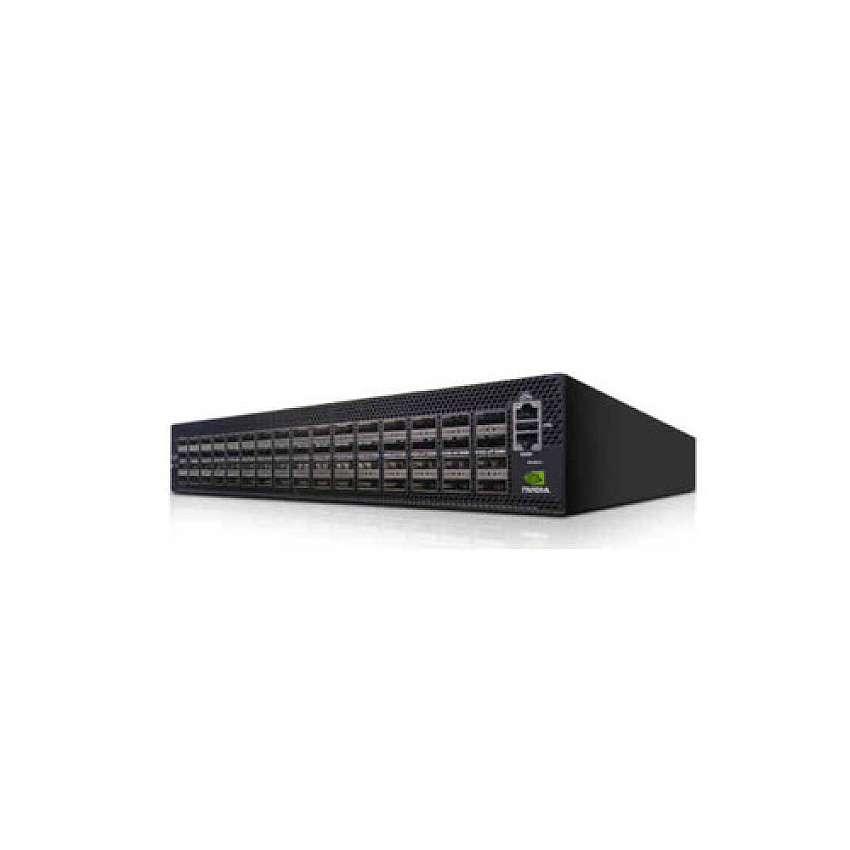

Nvidia Spectrum-3 Based 100gbe 2u (MSN4600CS2FC)
Nvidia Spectrum-3 Based 100gbe 2u (MSN4600CS2FC)
-
SPECTRUM-3 BASED 100GBE 2U
-
Special order arrives within 3-7 weeks.
Product Description
Spectrum-3 based 100GbE 2U Open Ethernet switch with Cumulus Linux, 64 QSFP28 ports, 2 power supplies (AC), x86 CPU, standard depth, P2C airflow, Rail Kit
Product Specs
Manufacturer
NvidiaCategories
Nvidia Computer AccessoriesNvidia Networking, Cables & AccessoriesNvidia Network SwitchesManufacturer Stock No.
MSN4600-CS2FCMPN
MLNMSN4600CS2FCModel#
MSN4600CS2FCUNSPSC Code
0Information
Product Description: Mellanox Spectrum-3 SN4600C - switch - 64 ports - managed - rack-mountableDevice Type: Switch - 64 ports - L3 - managed
Enclosure Type: Back to front airflow rack-mountable 2U
Subtype: 100 Gigabit Ethernet
Ports: 64 x 100 Gigabit QSFP28
Performance: Throughput: 12.8 Tbps
Capacity: Packet buffer size: 64 MB
Jumbo Frame Support: 9216 bytes
Routing Protocol: BGP, VRRP, OSPFv2, static IPv4 routing
Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, CLI
Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, LACP support, LLDP support, DHCP relay, PVRST, PFC, ETS
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 16.9 in x 22.4 in x 3.5 in
Manufacturer Warranty: 1-year warranty
Device Type: Switch - 64 ports - L3 - managed
Enclosure Type: Back to front airflow rack-mountable 2U
Subtype: 100 Gigabit Ethernet
Ports: 64 x 100 Gigabit QSFP28
Performance: Throughput: 12.8 Tbps
Capacity: Packet buffer size: 64 MB
Jumbo Frame Support: 9216 bytes
Routing Protocol: BGP, VRRP, OSPFv2, static IPv4 routing
Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, CLI
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP
Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, LACP support, LLDP support, DHCP relay, PVRST, PFC, ETS
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz
RAM: 8 GB
Built-in Devices: 32 GB SSD
Interfaces: 64 x 100Gbit LAN QSFP28 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x USB ¦ 1 x serial RJ-45
Power Device: Internal power supply - hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V (50/60 Hz)
Rack Mounting Kit: Included
Compliant Standards: VCCI, CB, FCC, ICES, cTUVus, RCM
Software Included: Cumulus Linux
Width: 16.9 in
Depth: 22.4 in
Height: 3.5 in
Service & Support: Limited warranty - 1 year
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 85%
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
COO: TAIWAN / ISRAEL / INDIA
TAA compliance: No
Unit of Measure
Item Weight
50Ships via UPS
YBrand
Nvidia
