HP e Networking Instant On 1960 48g 2xgt 2sfp+ Switch Us (JL808A#ABA)
Model: JL808A#ABA
HP e Networking Instant On 1960 48g 2xgt 2sfp+ Switch Us (JL808A#ABA)
Model: JL808A#ABA
-

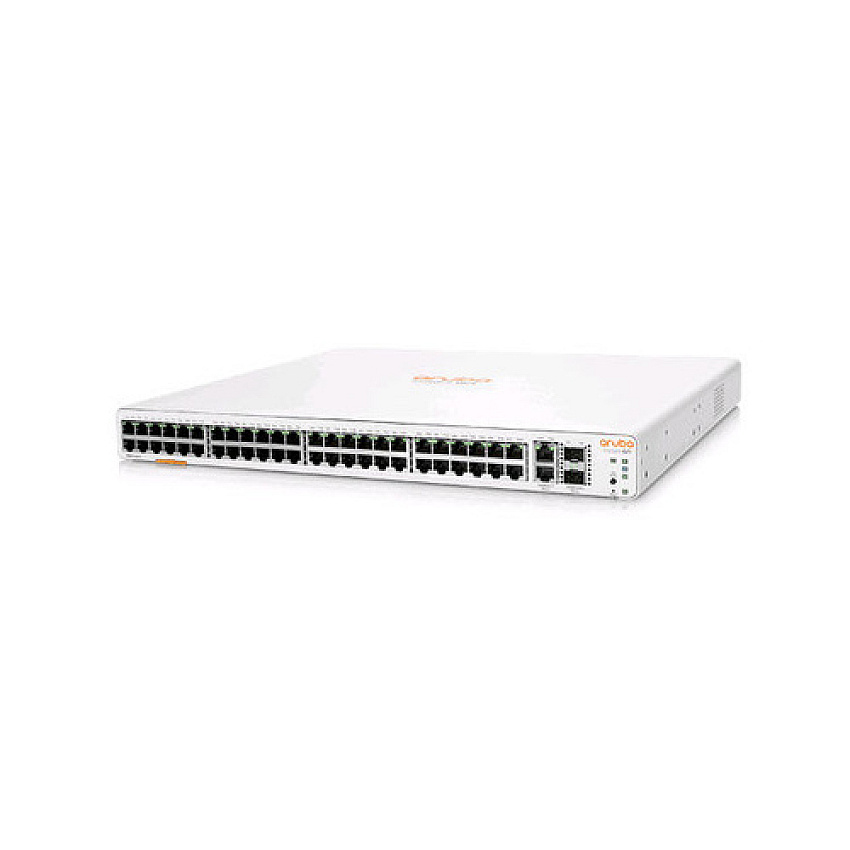

HPE Networking Instant On 1960 48G 2XGT 2SFP+ Switch US
-
In Stock
Product Description
HPE Networking Instant On 1960 48G 2XGT 2SFP+ Switch US
Product Specs
Manufacturer
HPManufacturer Stock No.
JL808A#ABAMPN
HPEJL808AABAModel#
JL808A#ABAUPC Code
190017522609UNSPSC Code
0Information
Product Description: HPE Networking Instant On 1960 48G 2XGT 2SFP+ Switch - switch - 48 ports - smart - rack-mountableDevice Type: Switch - 48 ports - L3 Lite - smart - stackable
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet
Performance: Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps
Capacity: IPv4 routing table entries: 32 ¦ IPv6 routing table entries: 32
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, RADIUS
Features: Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, TPM, Cable Diagnostics Function, DHCP relay, Port Security, port based access control, DHCP client, Energy Efficient Ethernet, CoS, cloud managed, IP source guard, ICMP, dual image support, DNS client, LLDP-MED, ingress rate limiting, protected ports, BPDU Filter, WRR, ARP filtering, DSCP prioritization, auto voice VLAN, loop protection
Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Power: AC 100-240 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 13.8 in x 1.7 in
Weight: 9.7 lbs
Localization: English / United States
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 48 ports - L3 Lite - smart - stackable
Enclosure Type: Desktop, rack-mountable
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet
Performance: Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps
Capacity: IPv4 routing table entries: 32 ¦ IPv6 routing table entries: 32
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, RADIUS
Encryption Algorithm: SSL
Authentication Method: RADIUS
Features: Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, TPM, Cable Diagnostics Function, DHCP relay, Port Security, port based access control, DHCP client, Energy Efficient Ethernet, CoS, cloud managed, IP source guard, ICMP, dual image support, DNS client, LLDP-MED, ingress rate limiting, protected ports, BPDU Filter, WRR, ARP filtering, DSCP prioritization, auto voice VLAN, loop protection
Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor: 1: 800 MHz
Status Indicators: Port status
Interfaces: 48 x Gigabit LAN RJ-45 ¦ 2 x 10Gbit LAN SFP+ ¦ 2 x 10Gbit LAN RJ-45
Power Device: Internal power supply
Voltage Required: AC 100-240 V (50/60 Hz)
Power Consumption Operational: 80 Watt
Rack Mounting Kit: Included
MTBF: 109.4 years
Compliant Standards: Plug and Play, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 62368-1 Second Edition, UL 62368-1 Second Edition, IEC/EN60950-1: 2006 +A11: 2009 +A1: 2010 +A12: 2011 +A2: 2013, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, EN 55032/CISPR 32 Class A, CISPR 35, IEC 62368-1 Second Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, EN/IEC 60825-1: 2014 Class 4
Localization: English / United States
Width: 17.4 in
Depth: 13.8 in
Height: 1.7 in
Weight: 9.7 lbs
Service & Support: Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (non-condensing)
COO: CHINA
TAA compliance: No
