HP e Networking Instant On 1960 48g 40p Class4 8p Class6 Poe 2xgt 2sfp+ 600w Switch Us (JL809A#ABA)
Model: JL809A#ABA
HP e Networking Instant On 1960 48g 40p Class4 8p Class6 Poe 2xgt 2sfp+ 600w Switch Us (JL809A#ABA)
Model: JL809A#ABA
-

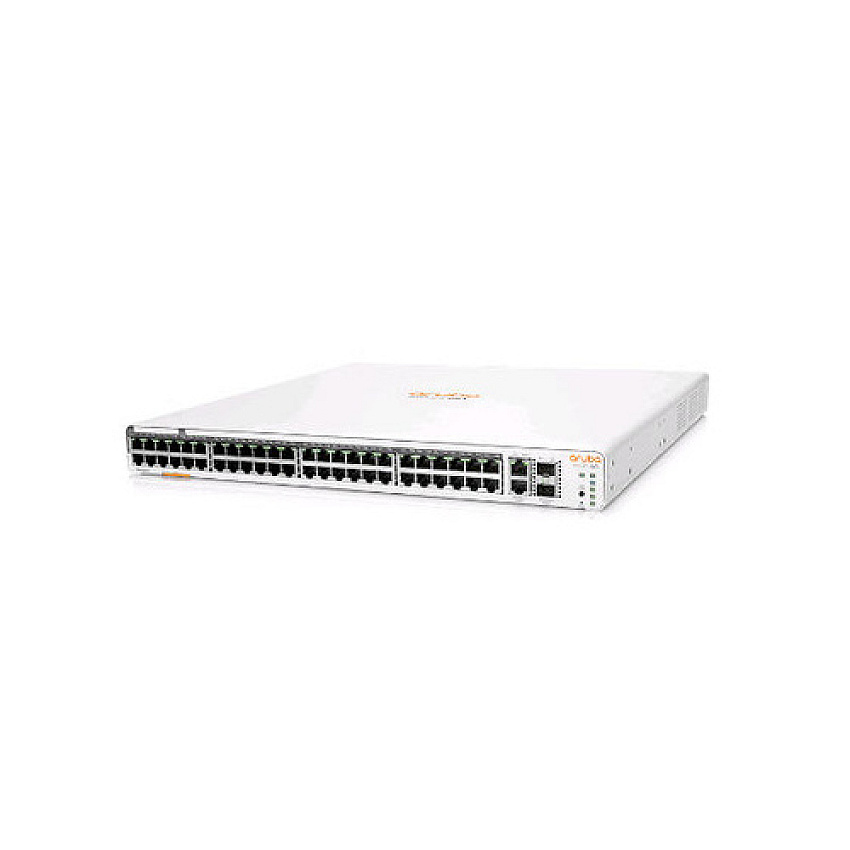

HPE Networking Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch US
-
Out Of Stock
Product Description
HPE Networking Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch US
Product Specs
Manufacturer
HPManufacturer Stock No.
JL809A#ABAMPN
HPEJL809AABAModel#
JL809A#ABAUPC Code
190017522920UNSPSC Code
0Information
Product Description: HPE Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch - switch - 48 ports - managed - rack-mountableDevice Type: Switch - 48 ports - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
Power Over Ethernet (PoE): PoE
PoE Budget: 600 W
Performance: Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs
Capacity: MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS
Features: Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platform Module (TPM), Link Aggregation Control Protocol (LACP), Class of Service (CoS), Energy-Efficient Ethernet (EEE), BPDU Filter, auto voice VLAN, Media Endpoint Discovery (LLDP-MED)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP)
Power: AC 100-240 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 15.9 in x 1.7 in
Weight: 10.8 lbs
Localization: English / United States
Device Type: Switch - 48 ports - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
Power Over Ethernet (PoE): PoE
PoE Budget: 600 W
Performance: Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs
Capacity: MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS
Authentication Method: RADIUS
Features: Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platform Module (TPM), Link Aggregation Control Protocol (LACP), Class of Service (CoS), Energy-Efficient Ethernet (EEE), BPDU Filter, auto voice VLAN, Media Endpoint Discovery (LLDP-MED)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP)
Processor: 1 x ARM: 800 MHz
Status Indicators: Port status, power
Interfaces: 48 x 10/100/1000 Base-T RJ-45 600 W ¦ 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ ¦ 2 x 10GBase-T RJ-45
Power Device: Internal power supply
Voltage Required: AC 100-240 V (50/60 Hz)
MTBF: 68 years
Compliant Standards: EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, UL 62368-1 Second Edition, IEC/EN60950-1: 2006 +A11: 2009 +A1: 2010 +A12: 2011 +A2: 2013, EN 55032: 2015 Class A, CISPR 32: 2015 Class A, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60825-1: 2014 Class 2, IEC/EN 62368-1, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018
Localization: English / United States
Width: 17.4 in
Depth: 15.9 in
Height: 1.7 in
Weight: 10.8 lbs
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 15 - 95% (40 °C)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
COO: SINGAPORE
TAA compliance: Yes
