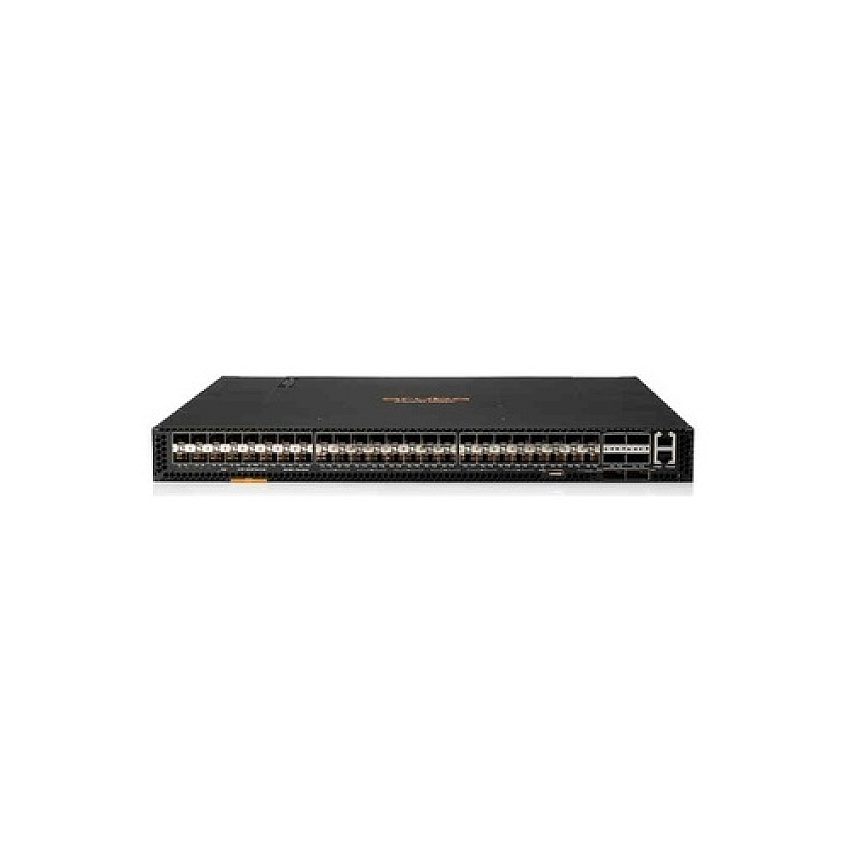

HP Aruba 8320 48 10/6 40 X472 5 2 Bdl L6-20 (JL479A#B2E)
Model: JL479A#B2E
HP Aruba 8320 48 10/6 40 X472 5 2 Bdl L6-20 (JL479A#B2E)
Model: JL479A#B2E
-
ARUBA 8320 48 10/6 40 X472 5 2 BDL L6-20
-
Special order arrives within 3-7 weeks.
Product Description
Aruba CX 8320 Switch Series - 2GHz CPU, 16GB RAM, 64GB SSD, and 8GB Flash - (48) 10GbE/1GbE SFP+/SFP ports, (6) 40GbE QSFP+ ports - 100-127 and 200-240 VAC with either 50 or 60 Hz - 357W - 5-year Warranty
Product Specs
Manufacturer
HPManufacturer Stock No.
JL479A#B2EMPN
HPEJL479AB2EModel#
JL479A#B2EUPC Code
190017283197UNSPSC Code
0Information
Product Description: HPE Aruba 8320 - switch - 48 ports - managed - rack-mountable - TAA Compliant - with 2 x Aruba X371 400W AC Power Supply, 5 x Aruba X721 Front-to-Back Fan, Aruba X472 2-post Rack KitDevice Type: Switch - 48 ports - L3 - managed - with 2 x Aruba X371 400W AC Power Supply, 5 x Aruba X721 Front-to-Back Fan, Aruba X472 2-post Rack Kit
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+
Performance: Switching capacity: 2.5 Tbps ¦ Forwarding performance: 1.905 Mpps
Capacity: Virtual interfaces (VLANs) per port for 802.1q: 4096
Jumbo Frame Support: 9KB
Routing Protocol: OSPF, IGMPv2, IGMP, VRRP, IGMPv3, GRE, static IPv6 routing, ECMP
Remote Management Protocol: SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SFTP
Features: VPN support, IPv6 support, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, UDLD, Rapid PVST+, IPv4 support, LACP, redundant hot swappable fans, packet storm protection, SP, Loopback, BPDU, MLAG, PIM
Compliant Standards: IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1t, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 17.4 in x 19.9 in x 1.7 in
Weight: 20.72 lbs
TAA Compliant: Yes
Manufacturer Warranty: 5-year warranty
Device Type: Switch - 48 ports - L3 - managed - with 2 x Aruba X371 400W AC Power Supply, 5 x Aruba X721 Front-to-Back Fan, Aruba X472 2-post Rack Kit
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+
Performance: Switching capacity: 2.5 Tbps ¦ Forwarding performance: 1.905 Mpps
Capacity: Virtual interfaces (VLANs) per port for 802.1q: 4096
Jumbo Frame Support: 9KB
Routing Protocol: OSPF, IGMPv2, IGMP, VRRP, IGMPv3, GRE, static IPv6 routing, ECMP
Remote Management Protocol: SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SFTP
Encryption Algorithm: FIPS 140-2
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features: VPN support, IPv6 support, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, UDLD, Rapid PVST+, IPv4 support, LACP, redundant hot swappable fans, packet storm protection, SP, Loopback, BPDU, MLAG, PIM
Compliant Standards: IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1t, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
Interfaces: 48 x 10Gbit LAN SFP+ ¦ 6 x 40Gbit LAN QSFP+ ¦ 1 x serial RJ-45 ¦ 1 x console (micro-USB) ¦ 1 x RJ-45
Power Device: Internal power supply - hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Power Provided: 400 Watt
Voltage Required: AC 120/230 V (50/60 Hz)
Rack Mounting Kit: Included
Compliant Standards: CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, UL 60950-1, WEEE, AS/NZS, EN 50581: 2012, CNS 13438, CSA 22.2 No. 60950-1, EN 55024: 2010, EN 60825-1: 2007, FCC CFR47 Part 15 A, ICES-003 issue 5, Directive 2014/35/EU, EN 55032: 2015, IEC 60825-1: 2007 Class 1, CISPR 32: 2015 Class A, CISPR 32 Class A, IEC 60950-1: 2005 (ed.2)+A1: 2009+A2: 2013, EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013
TAA Compliant: Yes
Width: 17.4 in
Depth: 19.9 in
Height: 1.7 in
Weight: 20.72 lbs
Service & Support: Limited warranty - 5 years
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 95% (non-condensing)
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
25Ships via UPS
YBrand
HP
$5,387.80
$6,465.36
$10,133.29
$11,669.00
