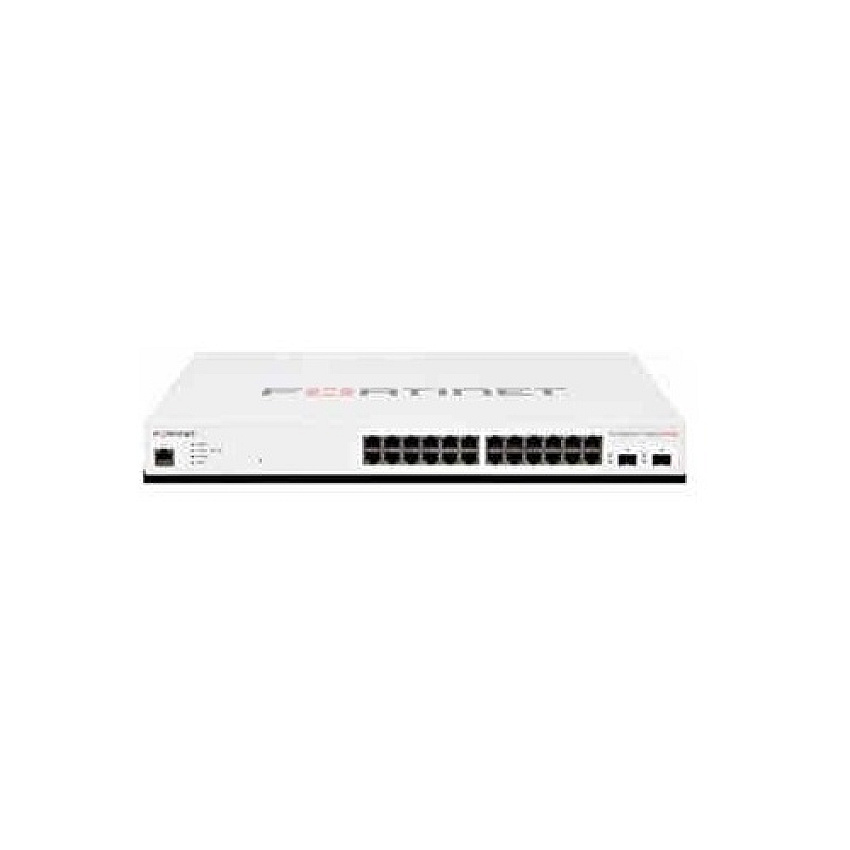

Fortinet Hw Fs-224e (FS224E)
Model: FS224E
Fortinet Hw Fs-224e (FS224E)
Model: FS224E
-
HW FS-224E
-
Out Of Stock
Product Description
Switch - FS-224E - 1RU - Wired - 1Gbps - Gigabit Ethernet - 512MB RAM - 128MB Flash Memory - 100-240V AC, 50/60 Hz-L2/L3 Switch - 24x GE RJ45 ports, 4x GE SFP Slots. FortiGate Switch controller compatible.
Product Specs
Manufacturer
FortinetCategories
Fortinet Computer AccessoriesFortinet Networking, Cables & AccessoriesFortinet Network SwitchesManufacturer Stock No.
FS-224EMPN
FTNFS224EModel#
FS224EUPC Code
842382125861UNSPSC Code
0Information
Product Description: Fortinet FortiSwitch 224E - switch - 24 ports - managed - rack-mountableDevice Type: Switch - 24 ports - L3 - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x Gigabit SFP
Performance: Switching capacity: 48 Gbps ¦ Packet transfer capability: 83 Mpps ¦ Latency: 1 µs
Capacity: Virtual interfaces (VLANs): 4000 ¦ Link aggregation groups: 14 ¦ Link aggregation groups: 8 ¦ Buffer capacity (MB): 1.5 MB ¦ MSTP instances: 15 ¦ Routing entries: 64 ¦ Host entries: 4000 ¦ ACL entries: 512
MAC Address Table Size: 16000 entries
Jumbo Frame Support: Yes
Routing Protocol: RIP-2, VRRP, OSPFv2
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Features: Flow control, auto-negotiation, IGMP snooping, port mirroring, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Bidirectional Forwarding Detection (BFD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), IP-MAC binding, Management Information Base (MIB), static routing, tagged VLAN, Type of Service (ToS), DiffServ Code Point (DSCP) support, Storm Control, Root Guard, Multi-Chassis Link Aggregation (MLAG), Private VLAN
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX
Power: AC 120/230 V (50 - 60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 13 in x 9.1 in x 1.7 in
Weight: 4.78 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 24 ports - L3 - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x Gigabit SFP
Performance: Switching capacity: 48 Gbps ¦ Packet transfer capability: 83 Mpps ¦ Latency: 1 µs
Capacity: Virtual interfaces (VLANs): 4000 ¦ Link aggregation groups: 14 ¦ Link aggregation groups: 8 ¦ Buffer capacity (MB): 1.5 MB ¦ MSTP instances: 15 ¦ Routing entries: 64 ¦ Host entries: 4000 ¦ ACL entries: 512
MAC Address Table Size: 16000 entries
Jumbo Frame Support: Yes
Routing Protocol: RIP-2, VRRP, OSPFv2
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Authentication Method: RADIUS
Features: Flow control, auto-negotiation, IGMP snooping, port mirroring, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Bidirectional Forwarding Detection (BFD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), IP-MAC binding, Management Information Base (MIB), static routing, tagged VLAN, Type of Service (ToS), DiffServ Code Point (DSCP) support, Storm Control, Root Guard, Multi-Chassis Link Aggregation (MLAG), Private VLAN
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX
Interfaces: 24 x 1000Base-T RJ-45 ¦ 4 x Gigabit LAN SFP ¦ 1 x console RJ-45 ¦ 1 x management RJ-45
Power Device: Internal power supply
Power Redundancy: Yes
Voltage Required: AC 120/230 V (50 - 60 Hz)
Power Consumption Operational: 17.3 Watt
Compliant Standards: UL, VCCI, BSMI, CB, FCC, RoHS2, RCM
Width: 13 in
Depth: 9.1 in
Height: 1.7 in
Weight: 4.78 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 10 - 90%
Min Storage Temperature: -4 °F
Max Storage Temperature: 158 °F
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
7.25Ships via UPS
YBrand
Fortinet
