Fortinet Hw Fs-224e-poe (FS224EPOE)
Model: FS224EPOE

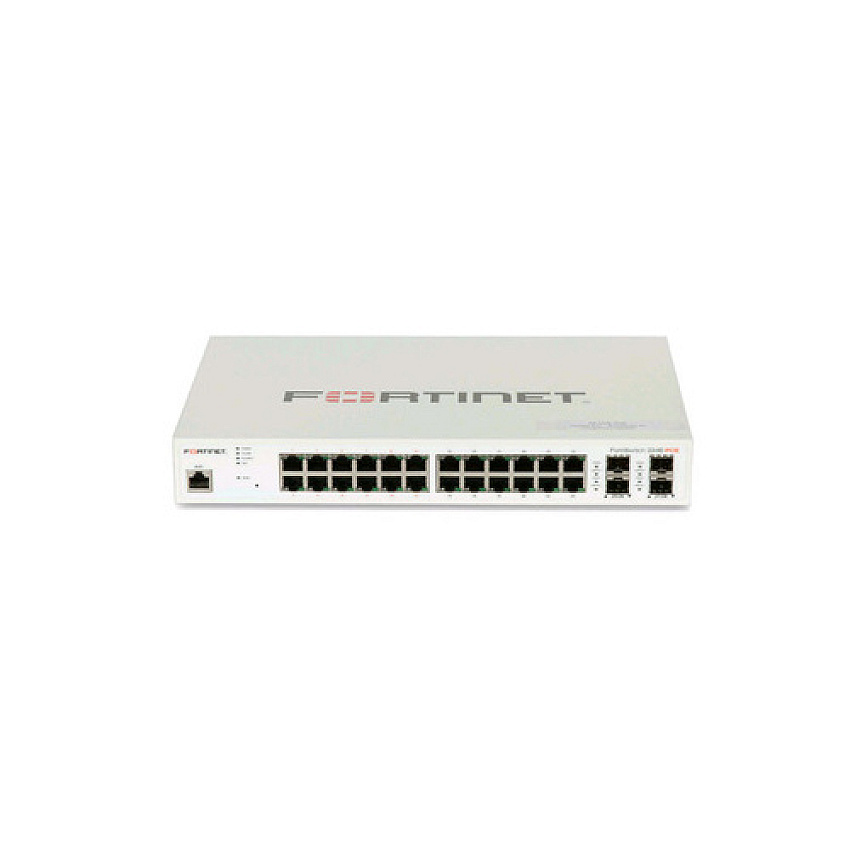

Fortinet Hw Fs-224e-poe (FS224EPOE)
Model: FS224EPOE
-
HW FS-224E-POE
-
Out Of Stock
Product Description
Switch - FS-224E-POE - 1RU - Wired - 1Gbps - Gigabit Ethernet - 512MB RAM - 128MB Flash Memory - 100-240V AC, 50/60 Hz - 802.3af/802.3at - Layer 2/3 FortiGate switch controller compatible PoE+ switch with 24 x.
Product Specs
Manufacturer
FortinetCategories
Fortinet Computer AccessoriesFortinet Networking, Cables & AccessoriesFortinet Network SwitchesManufacturer Stock No.
FS-224E-POEMPN
FTNFS224EPOEModel#
FS224EPOEUPC Code
842382125878UNSPSC Code
0Information
Product Description: Fortinet FortiSwitch 224E-POE - switch - 28 ports - managed - rack-mountableDevice Type: Switch - 28 ports - L3 - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 12 x 10/100/1000 (PoE+) + 12 x 10/100/1000 + 4 x Gigabit SFP
Power Over Ethernet (PoE): PoE+
PoE Budget: 180 W
Performance: Switching capacity: 48 Gbps ¦ Packet transfer capability: 83 Mpps ¦ Latency: 1 µs
Capacity: Virtual interfaces (VLANs): 4000 ¦ Link aggregation groups: 14 ¦ Link aggregation groups: 8 ¦ Buffer capacity (MB): 1.5 MB ¦ MSTP instances: 15 ¦ Routing entries: 64 ¦ Host entries: 4000 ¦ ACL entries: 512
MAC Address Table Size: 16000 entries
Jumbo Frame Support: Yes
Routing Protocol: RIP-2, VRRP, OSPFv2
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Features: Flow control, auto-negotiation, IGMP snooping, port mirroring, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Bidirectional Forwarding Detection (BFD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), IP-MAC binding, Management Information Base (MIB), static routing, tagged VLAN, Type of Service (ToS), DiffServ Code Point (DSCP) support, Storm Control, Root Guard, Multi-Chassis Link Aggregation (MLAG), Private VLAN
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX
Power: AC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH): 13 in x 9.1 in x 1.7 in
Weight: 5.38 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 28 ports - L3 - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 12 x 10/100/1000 (PoE+) + 12 x 10/100/1000 + 4 x Gigabit SFP
Power Over Ethernet (PoE): PoE+
PoE Budget: 180 W
Performance: Switching capacity: 48 Gbps ¦ Packet transfer capability: 83 Mpps ¦ Latency: 1 µs
Capacity: Virtual interfaces (VLANs): 4000 ¦ Link aggregation groups: 14 ¦ Link aggregation groups: 8 ¦ Buffer capacity (MB): 1.5 MB ¦ MSTP instances: 15 ¦ Routing entries: 64 ¦ Host entries: 4000 ¦ ACL entries: 512
MAC Address Table Size: 16000 entries
Jumbo Frame Support: Yes
Routing Protocol: RIP-2, VRRP, OSPFv2
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Authentication Method: RADIUS
Features: Flow control, auto-negotiation, IGMP snooping, port mirroring, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Bidirectional Forwarding Detection (BFD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), IP-MAC binding, Management Information Base (MIB), static routing, tagged VLAN, Type of Service (ToS), DiffServ Code Point (DSCP) support, Storm Control, Root Guard, Multi-Chassis Link Aggregation (MLAG), Private VLAN
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX
Interfaces: 12 x 1000Base-T RJ-45 PoE+ ¦ 12 x 1000Base-T RJ-45 ¦ 4 x Gigabit LAN SFP ¦ 1 x console RJ-45 ¦ 1 x management RJ-45
Power Device: Internal power supply
Voltage Required: AC 120/230 V (50 - 60 Hz)
Power Consumption Operational: 23.5 Watt
Compliant Standards: UL, VCCI, BSMI, CB, FCC, RoHS2, RCM
Width: 13 in
Depth: 9.1 in
Height: 1.7 in
Weight: 5.38 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 10 - 90%
Min Storage Temperature: -4 °F
Max Storage Temperature: 158 °F
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
7.55Ships via UPS
YBrand
Fortinet
