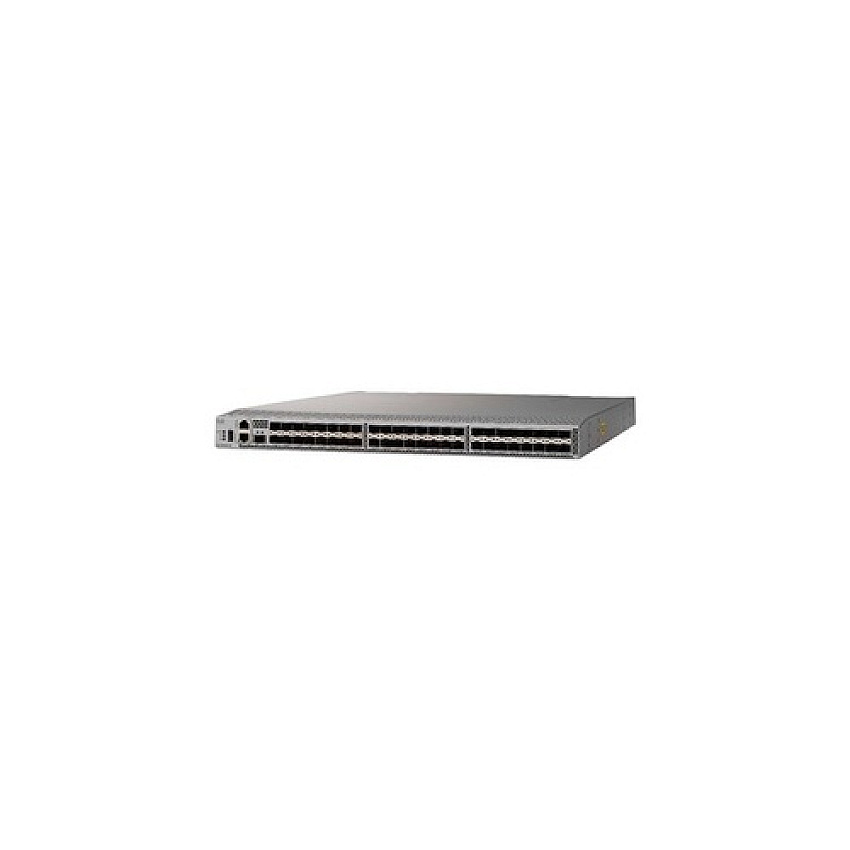

Cisco Mds 9148t 32g Fc Switch, W/ 24 (DSC9148T24PITK9)
Cisco Mds 9148t 32g Fc Switch, W/ 24 (DSC9148T24PITK9)
-
MDS 9148T 32G FC switch, w/ 24
-
Special order arrives within 3-7 weeks.
Product Description
MDS 9148T 32G FC SWITCH, W/ 24 ACTIVE PORTS +32G SW, INTAKE
Product Specs
Manufacturer
CiscoManufacturer Stock No.
DS-C9148T-24PITK9MPN
CSCDSC9148T24PITK9Model#
DSC9148T24PITK9UPC Code
889728163149UNSPSC Code
0Information
Product Description: Cisco MDS 9148T - switch - 48 ports - managed - rack-mountableDevice Type: Switch - 48 ports - managed
Enclosure Type: Rack-mountable 1U
Subtype: Fibre Channel
Ports: 24 x 32Gb Fibre Channel SFP+
Routing Protocol: VRRP
Remote Management Protocol: RMON, SNMP 3, HTTPS, SMI-S, SSH-2, CLI, SFTP
Features: Syslog support, ACL support, RSCN support, ISSU, FCS, RBAC, TrustSec support, POST, 4 fan trays, AAA, secure boot, SPAN, EEM, Anti-Counterfeit Technology, OHMS
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 17.3 in x 22.3 in x 1.7 in
Weight: 18.74 lbs
Manufacturer Warranty: 1-year warranty
Device Type: Switch - 48 ports - managed
Enclosure Type: Rack-mountable 1U
Subtype: Fibre Channel
Ports: 24 x 32Gb Fibre Channel SFP+
Fibre Channel: FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5, FC-FS-4, FC-SW-6, FC-GS-7, FC-PI-6, FC-LS-3
Routing Protocol: VRRP
Remote Management Protocol: RMON, SNMP 3, HTTPS, SMI-S, SSH-2, CLI, SFTP
Encryption Algorithm: AES
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP
Features: Syslog support, ACL support, RSCN support, ISSU, FCS, RBAC, TrustSec support, POST, 4 fan trays, AAA, secure boot, SPAN, EEM, Anti-Counterfeit Technology, OHMS
Status Indicators: System
Interfaces: 24 x 32Gb Fibre Channel LC ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x 10GBase-X SFP+ management ¦ 1 x USB Type A ¦ 1 x serial (RS-232) management
Power Device: Internal power supply - hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Provided: 650 Watt
Voltage Required: AC 120/230 V (50/60 Hz)
80 PLUS Certification: 80 PLUS Platinum
Features: Side Intake airflow
Included Accessories: Accessory kit
Compliant Standards: CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, EMC, ICES-003 Class A, EN 60825, AS/NZS 3548 Class A, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, 21 CFR 1040, TS001
Software Included: MDS 9148T Supervisor/Fabric-6, NX-OS Software Rel. 8.3(1)
Width: 17.3 in
Depth: 22.3 in
Height: 1.7 in
Weight: 18.74 lbs
Service & Support: Limited warranty - advance parts replacement - 1 year - response time: 10 days
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 10 - 95% (non-condensing)
COO: MEXICO
TAA compliance: Yes
