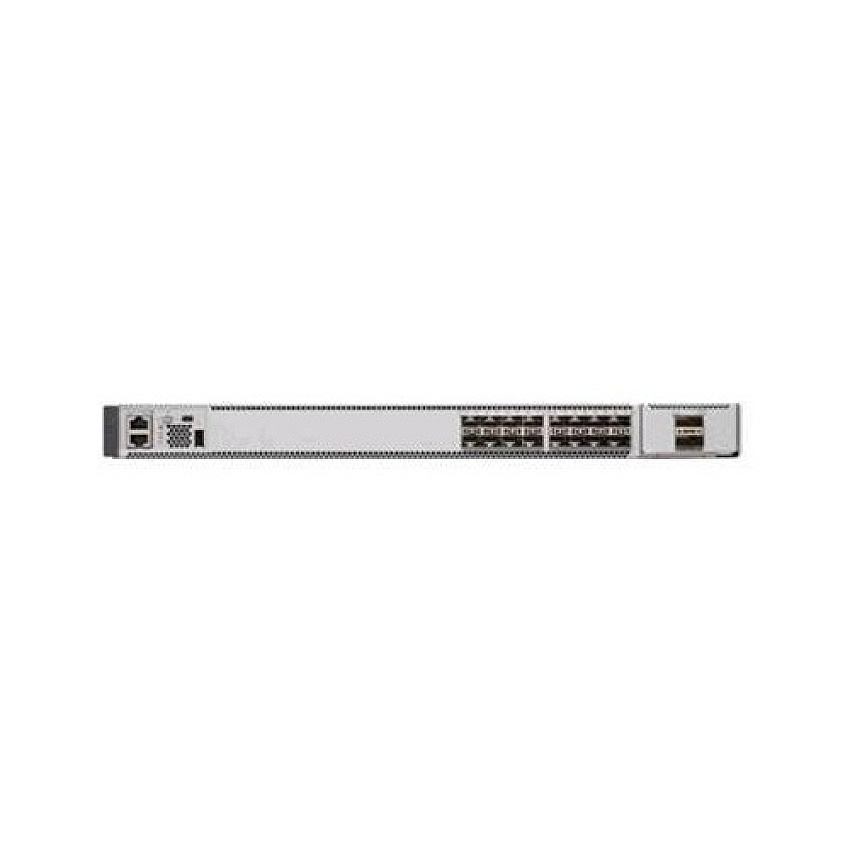

Cisco Catalyst 9500 16-port 10g, K12 (C950016XEDU)
Model: C950016XEDU
Cisco Catalyst 9500 16-port 10g, K12 (C950016XEDU)
Model: C950016XEDU
-
Catalyst 9500 16-port 10G, K12
-
Out Of Stock
Product Description
Catalyst 9500 16-port 10G, K12
Product Specs
Manufacturer
CiscoManufacturer Stock No.
C9500-16X-EDUMPN
CSCC950016XEDUModel#
C950016XEDUUPC Code
889728135719UNSPSC Code
0Information
Product Description: Cisco Catalyst 9500 - switch - 16 ports - managed - rack-mountableDevice Type: Switch - 16 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 16 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
Performance: Switching capacity (full duplex): up to 480 Gbps ¦ Forwarding rate: up to 360 Mpps
Capacity: Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 80000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 40000 ¦ Multicast scale: 16000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size: 64K entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, TFTP, NETCONF, RESTCONF
Features: DHCP support, NAT support, PAT support, trunking, MPLS support, NSF, CBWFQ, WRED, STP support, VRRP support, ACL support, QoS, NSR, Rapid PVST+, RSPAN, HSRP support, VRF, MLD, FNF, MSDP, MACsec support, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, CoAP support, SPAN
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Power: AC 120/230 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 1.7 in x 17.5 in x 21.5 in
Weight: 23.59 lbs
Pricing Type: K-12 education
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 16 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 16 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
Performance: Switching capacity (full duplex): up to 480 Gbps ¦ Forwarding rate: up to 360 Mpps
Capacity: Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 80000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 40000 ¦ Multicast scale: 16000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size: 64K entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, TFTP, NETCONF, RESTCONF
Encryption Algorithm: 256-bit AES
Features: DHCP support, NAT support, PAT support, trunking, MPLS support, NSF, CBWFQ, WRED, STP support, VRRP support, ACL support, QoS, NSR, Rapid PVST+, RSPAN, HSRP support, VRF, MLD, FNF, MSDP, MACsec support, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, CoAP support, SPAN
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Processor: 1: 2.4 GHz
RAM: 16 GB
Flash Memory: 16 GB
Built-in Devices: RFID tag
Status Indicators: Status
Interfaces: 16 x 10Gbit LAN RJ-45 ¦ 2 x 10GBase-X SFP+
Power Device: Internal power supply - hot-plug
Installed Qty: 1
Max Supported Qty: 2
Power Redundancy: Optional
Power Provided: 950 Watt
Voltage Required: AC 120/230 V (50 - 60 Hz)
Features: Front-to-rear airflow
MTBF: 315,790 hours
Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22: 2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, CAN/CSA-C22.2 No. 60950-1
Pricing Type: K-12 education
Software Included: Cisco IOS Universal
Width: 1.7 in
Depth: 17.5 in
Height: 21.5 in
Weight: 23.59 lbs
Service & Support: Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 90% (non-condensing)
Min Storage Temperature: -4 °F
Max Storage Temperature: 149 °F
Humidity Range Storage: 5 - 95% (non-condensing)
COO: UNITED STATES
TAA compliance: Yes
