Raritan 3ph 208v 60a 36: 24x C13 12x C19 (PX31905N1V2)
Raritan 3ph 208v 60a 36: 24x C13 12x C19 (PX31905N1V2)
-
3PH 208V 60A 36: 24X C13 12X C19
-
Special order arrives within 3-7 weeks.
Product Description

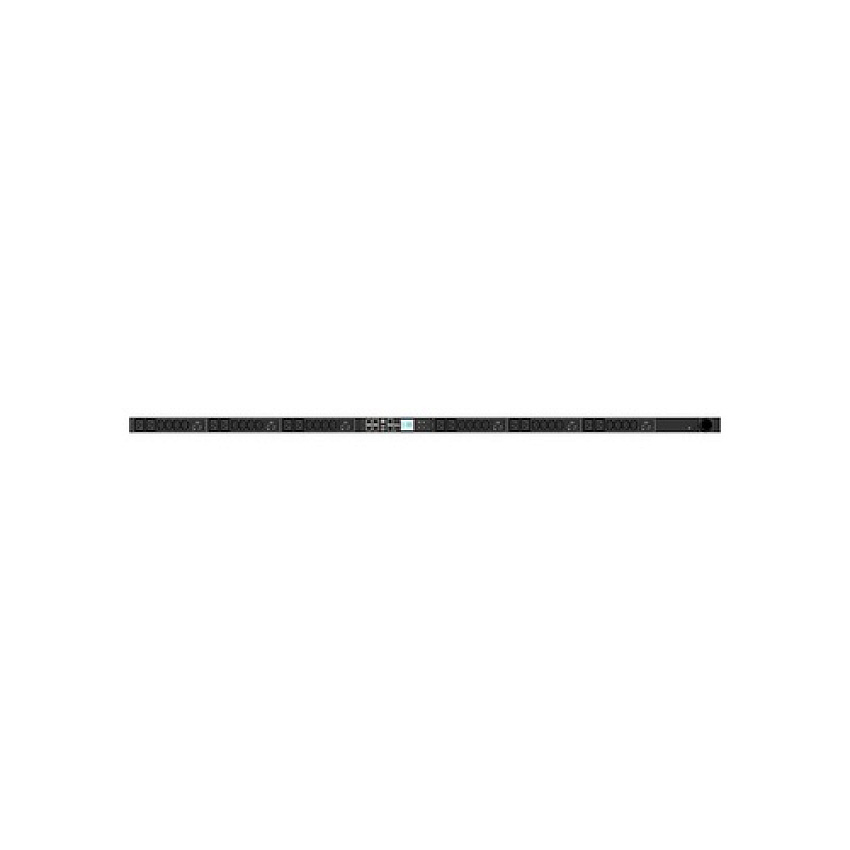

3PH 208V 60A 36: 24x C13 12x C19 IEC 60309 Delta Bottom-Bottom Unit Metered 0U
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-1905-N1V2MPN
RRTPX31905N1V2Model#
PX31905N1V2UNSPSC Code
0Information
Product Description: Raritan - power distribution unit - 17300 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Weight: 28.66 lbs
Input Wiring: 3-phase delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 17300 VA
Power Capacity Details: 17.3 kVA at 208 V, 20 kVA at 240 V
Input Connectors: 1 x power IEC 60309 3P+E
Output connectors: 24 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 C19 16 A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, JSON-RPC, SMTP, Modbus, DHCP
Color: Black powder coat
Dimensions (WxDxH): 1.8 in x 3.1 in x 70.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 208 - 240 V
Input Wiring: 3-phase delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x power IEC 60309 3P+E
Power Output Connectors Details: 24 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 C19 16 A
Output Voltage: AC 208 V
Max Electric Current: 60 A
Power Capacity: 17300 VA
Power Capacity Details: 17.3 kVA at 208 V, 20 kVA at 240 V
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, JSON-RPC, SMTP, Modbus, DHCP
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor - RJ-45
Cables Included: Power cable 10 ft
Features: Vertical orientation, LCD display, current meter, vertical orientation, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, metering per input line, metering per branch circuit breaker, metering per output receptacle, 6 x LEGBX66-20 overload protection, removable controller, Auto-Flip Current Display, voltage meter, environmental sensor ready
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 1.8 in
Depth: 3.1 in
Height: 70.1 in
Weight: 28.66 lbs
Shipping Width: 76 in
Shipping Depth: 16.3 in
Shipping Height: 7.8 in
Shipping Weight: 37.48 lbs
COO: TAIWAN / TAIWAN / TAIWAN
TAA compliance: Yes
