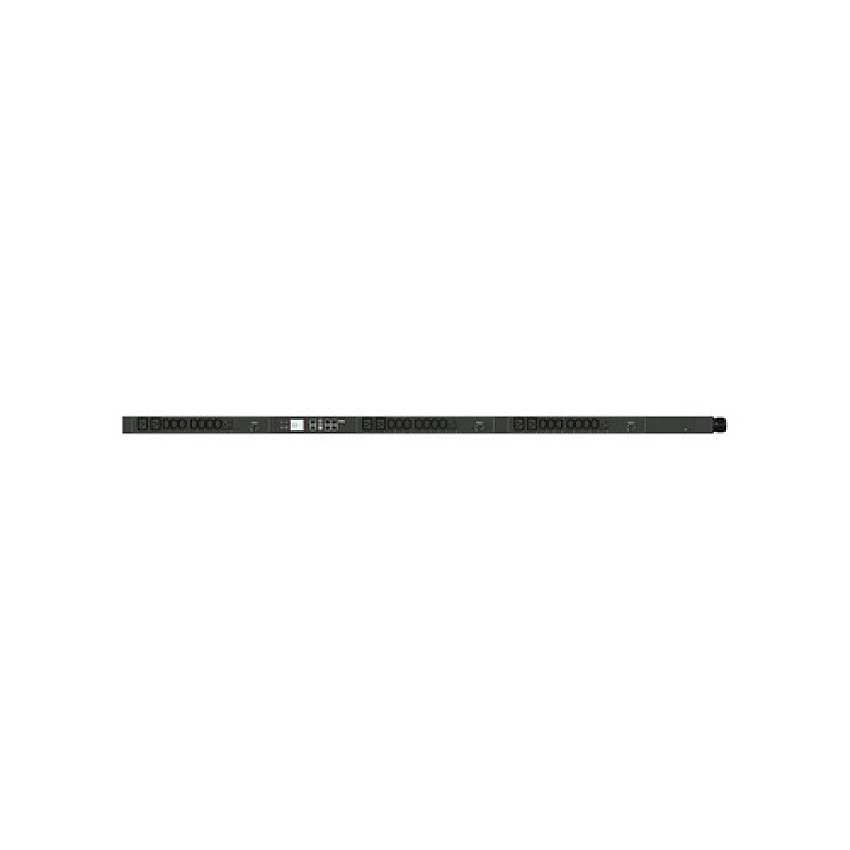

Raritan Px3-5660v Pdu 208v 3ph 24a 0u (PX35660V)
Raritan Px3-5660v Pdu 208v 3ph 24a 0u (PX35660V)
-
PX3-5660V PDU 208V 3PH 24A 0U
-
Special order arrives within 3-7 weeks.
Product Description
3PH, 208V AC, 30A (24A/PH rated); 30 outlets: 21x C13, 6x C19, 3x NEMA 5-20R; plug: NEMA L21-30P (Wye, bottom/end feed), 8.6kVA; Outlet Metered/Switched, Zero U vertical PDU, SecureLock ready, high resolution color display with field replaceable cont
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5660VMPN
RRTPX35660VModel#
PX35660VUPC Code
785813025036UNSPSC Code
0Information
Product Description: Raritan PX3-5660V - power distribution unit - 8600 VADevice Type: Power distribution unit - rack-mountable
Rack Size: 0U
Input Wiring: 3-phase
Input Voltage: AC 208 V
Output Voltage: AC 120 V
Power Capacity: 8600 VA
Input Connectors: 1 x power NEMA L21-30
Output connectors: 21 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 3 x power NEMA 5-20R
Networking: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Color: Black powder coat
Dimensions (WxDxH): 2 in x 2.6 in x 70.1 in
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 190 - 208 V
Input Wiring: 3-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L21-30
Power Output Connectors Details: 21 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 3 x power NEMA 5-20R
Output Voltage: AC 120 V
Max Electric Current: 30 A
Power Capacity: 8600 VA
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Interfaces: 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x monitoring - RJ-12 ¦ 1 x monitoring - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B
Cables Included: Power cable 10 ft
Features: LED display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug
Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A
Min Operating Temperature: 41 °F
Max Operating Temperature: 140 °F
Humidity Range Operating: 5 - 85%
Width: 2 in
Depth: 2.6 in
Height: 70.1 in
COO: TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
24.86Ships via UPS
