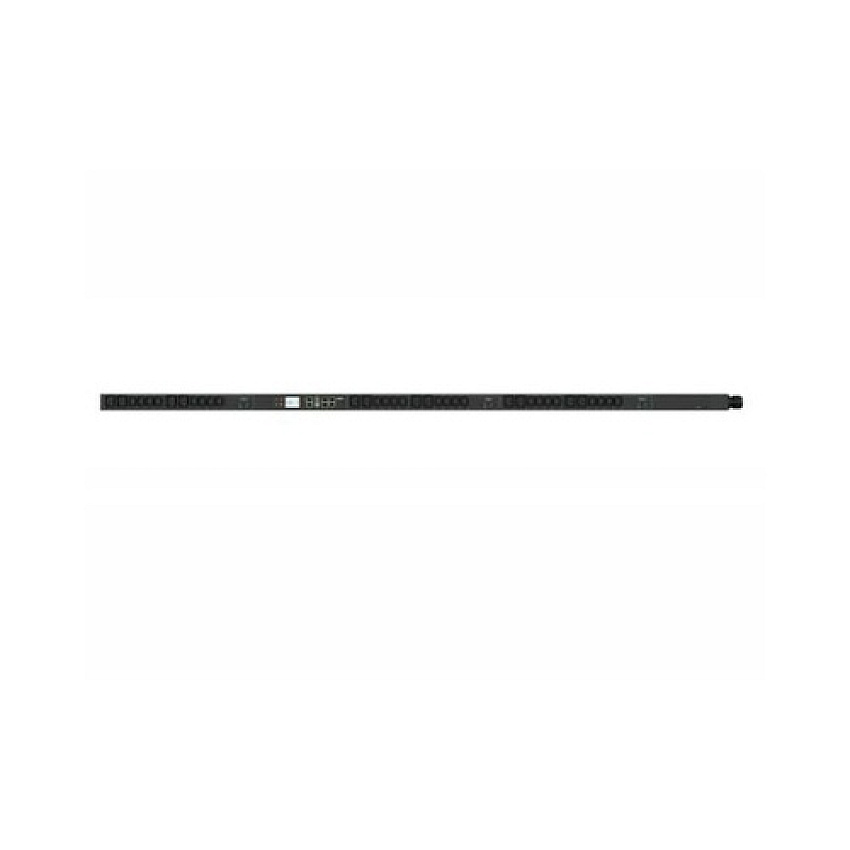

Raritan 3ph 208v 50a Cs8365c 24 X C13 12 X C19 (PX35726V)
Raritan 3ph 208v 50a Cs8365c 24 X C13 12 X C19 (PX35726V)
-
3PH 208V 50A CS8365C 24 X C13 12 X C19
-
Special order arrives within 3-7 weeks.
Product Description
3PH 208V 50A CS8365C 24 x C13 12 x C19
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5726VMPN
RRTPX35726VModel#
PX35726VUNSPSC Code
0Information
Product Description: Raritan Dominion PX PX3-5726V - power distribution unit - 14500 VADevice Type: Power distribution unit - rack-mountable
Rack Size: 0U
Input Wiring: 3-phase 4 Wire delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 14500 VA
Input Connectors: 1 x Hubbell CS8365C
Output connectors: 24 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 C19 16 A
Networking: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Color: Black powder coat
Dimensions (WxDxH): 2 in x 2.6 in x 70.1 in
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 208 - 240 V
Input Wiring: 3-phase 4 Wire delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x Hubbell CS8365C
Power Output Connectors Details: 24 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 C19 16 A
Output Voltage: AC 208 V
Max Electric Current: 35 A
Power Capacity: 14500 VA
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Interfaces: 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x monitoring - RJ-12 ¦ 1 x monitoring - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B
Cables Included: Power cable - integrated - 10 ft
Features: LED display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready
Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus
Min Operating Temperature: 41 °F
Max Operating Temperature: 140 °F
Humidity Range Operating: 5 - 85%
Width: 2 in
Depth: 2.6 in
Height: 70.1 in
COO: TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
24.2Ships via UPS
NBrand
Raritan
