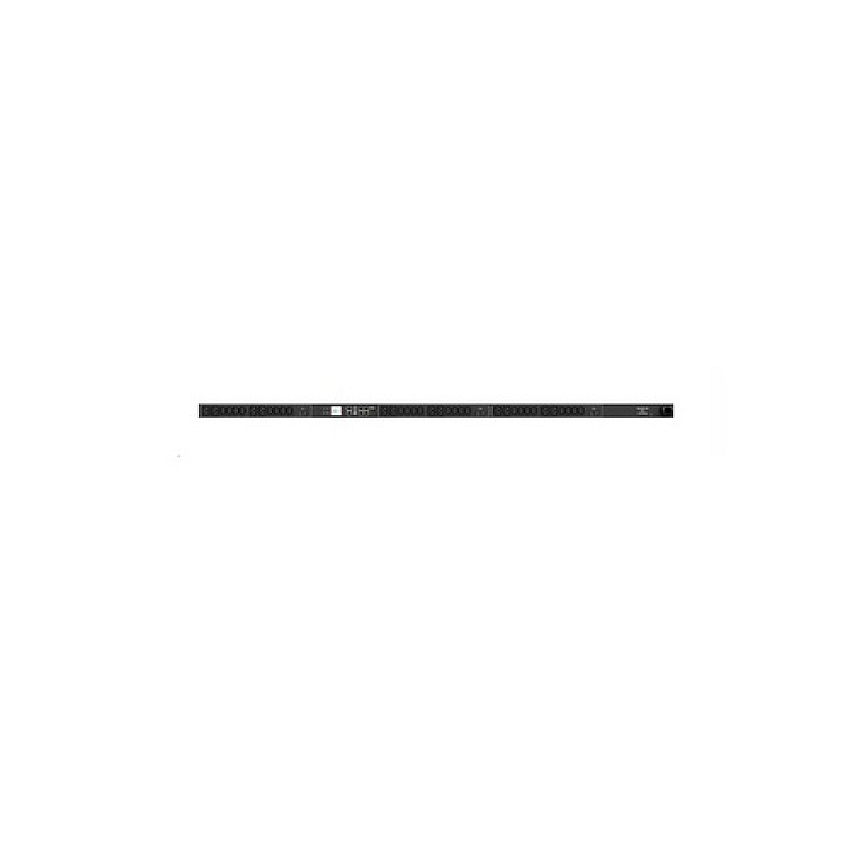

Raritan 3ph 208v 30a 36: 24x C13 12x C19 (PX31725)
Raritan 3ph 208v 30a 36: 24x C13 12x C19 (PX31725)
-
3PH 208V 30A 36: 24X C13 12X C19
-
Special order arrives within 3-7 weeks.
Product Description
3PH 208V 30A 36: 24x C13 12x C19 NEMA L21-30P Wye Bottom-Front Unit Metered 0U
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-1725MPN
RRTPX31725Model#
PX31725UNSPSC Code
0Information
Product Description: Raritan PX intelligent PX3-1725 - power distribution unit - 8600 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Input Wiring: 3-phase 4 Wire delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 8600 VA
Power Capacity Details: 8.6 kVA at 208 V, 7.9 kVA at 190 V
Input Connectors: 1 x power NEMA L21-30P
Output connectors: 24 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Black powder coat
Dimensions (WxDxH): 2 in x 2.2 in x 70.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 190 - 208 V
Input Wiring: 3-phase 4 Wire delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L21-30P
Power Output Connectors Details: 24 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A
Output Voltage: AC 208 V
Max Electric Current: 30 A
Power Capacity: 8600 VA
Power Capacity Details: 8.6 kVA at 208 V, 7.9 kVA at 190 V
Circuit Protection: Circuit breaker
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 1 x sensor - RJ-45 ¦ 1 x modem - RJ-45 ¦ 2 x monitoring - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45
Cables Included: Power cable - integrated - 10 ft
Rack Mounting Kit: Included
Features: Vertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug, metering per input line, metering per branch circuit breaker, replaceable controller, monitored, 3 x LEGBXA66-20 overload protection, cord retention, bottom-front feed cord entry
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus, IP44, IEC 62053-21, ISO 62053-21
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 2 in
Depth: 2.2 in
Height: 70.1 in
COO: TAIWAN / TAIWAN / TAIWAN
TAA compliance: Yes
