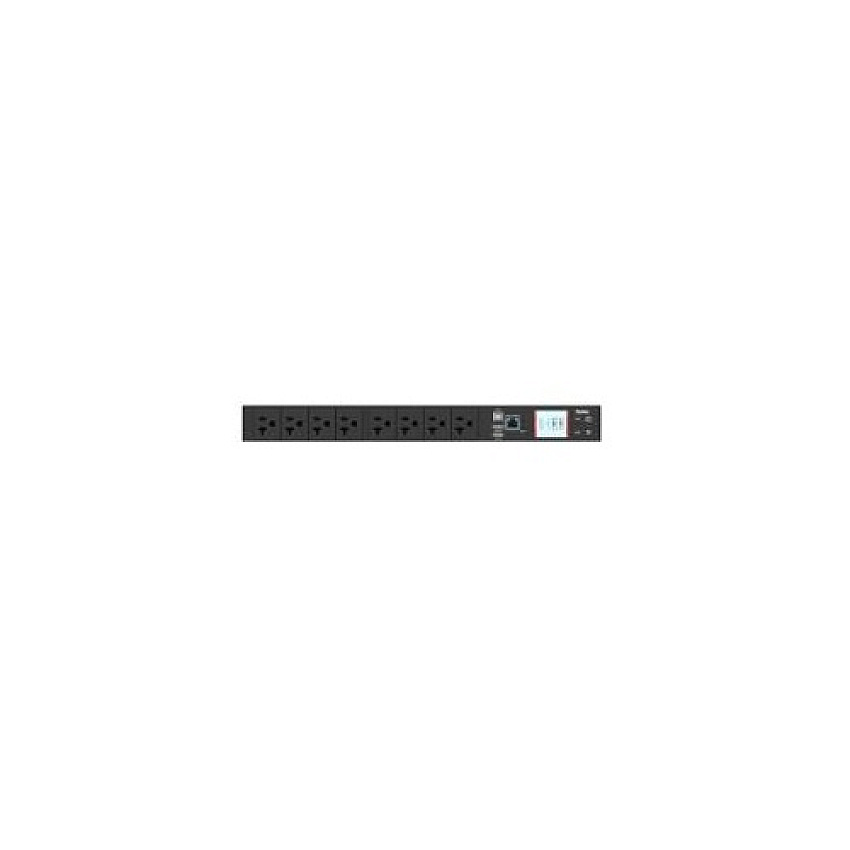

Raritan 1ph, 120v Ac, 20a (16a Rated); 8 Outlets: 8x Nema 5-20r; Plug: Nema L5-20p (rear Feed), 1.9kva; Outlet Metered/switched, 1u Horizontal Pdu (PX35147RK6)
Raritan 1ph, 120v Ac, 20a (16a Rated); 8 Outlets: 8x Nema 5-20r; Plug: Nema L5-20p (rear Feed), 1.9kva; Outlet Metered/switched, 1u Horizontal Pdu (PX35147RK6)
-
1PH, 120V AC, 20A (16A rated); 8 outlets: 8x NEMA 5-20R; plug: NEMA L5-20P (Rear feed), 1.9kVA; Outlet Metered/Switched, 1U horizontal PDU
-
Special order arrives within 3-7 weeks.
Product Description
1PH, 120V AC, 20A (16A rated); 8 outlets: 8x NEMA 5-20R; plug: NEMA L5-20P (Rear feed), 1.9kVA; Outlet Metered/Switched, 1U horizontal PDU, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections. Yellow chassis
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5147R-K6MPN
RRTPX35147RK6Model#
PX35147RK6UNSPSC Code
0Information
Product Description: Raritan PX3-5147R - power distribution unit - 16A - 1900 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 1U
Weight: 12.24 lbs
Input Wiring: 1-phase
Input Voltage: AC 120 V
Output Voltage: AC 120 V
Power Capacity: 1900 VA
Power Capacity Details: 1.6 kVA at 100 V, 1.9 kVA at 120 V
Input Connectors: 1 x power NEMA L5-20P
Output connectors: 8 x power NEMA 5-20R 16 A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus TCP
Color: Yellow
Image Color Disclaimer: The displayed product image may be a different color
Dimensions (WxDxH): 17.3 in x 7.2 in x 1.7 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 1U
Cord Length: 10 ft
Color: Yellow
Image Color Disclaimer: The displayed product image may be a different color
Input Voltage: AC 120 V
Input Voltage Range: AC 100 - 120 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L5-20P
Power Output Connectors Details: 8 x power NEMA 5-20R 16 A
Output Voltage: AC 120 V
Max Electric Current: 16 A
Power Capacity: 1900 VA
Power Capacity Details: 1.6 kVA at 100 V, 1.9 kVA at 120 V
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus TCP
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x feature - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x expansion - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x console/modem - RJ-45
Cables Included: Power cable 10 ft
Features: LCD display, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, metering per input line, metering per output receptacle, ISO/IEC 62053-21 1% metering accuracy, rear feed cord entry, voltage meter, environmental sensor ready, Power IQ technology, ARM Cortex A5 CPU, 16MB SPI Flash, 64MB DDR2 RAM
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 17.3 in
Depth: 7.2 in
Height: 1.7 in
Weight: 12.24 lbs
Shipping Width: 22.4 in
Shipping Depth: 16.3 in
Shipping Height: 12.6 in
Shipping Weight: 13.56 lbs
COO: TAIWAN / TAIWAN
TAA compliance: Yes
