Raritan 1ph,120v,16a,8x5-20r,l5-15p,1.9kva,1u (PX35145R)
Raritan 1ph,120v,16a,8x5-20r,l5-15p,1.9kva,1u (PX35145R)
-
1PH,120V,16A,8x5-20R,L5-15P,1.9kVA,1U
-
Special order arrives within 3-7 weeks.
Product Description

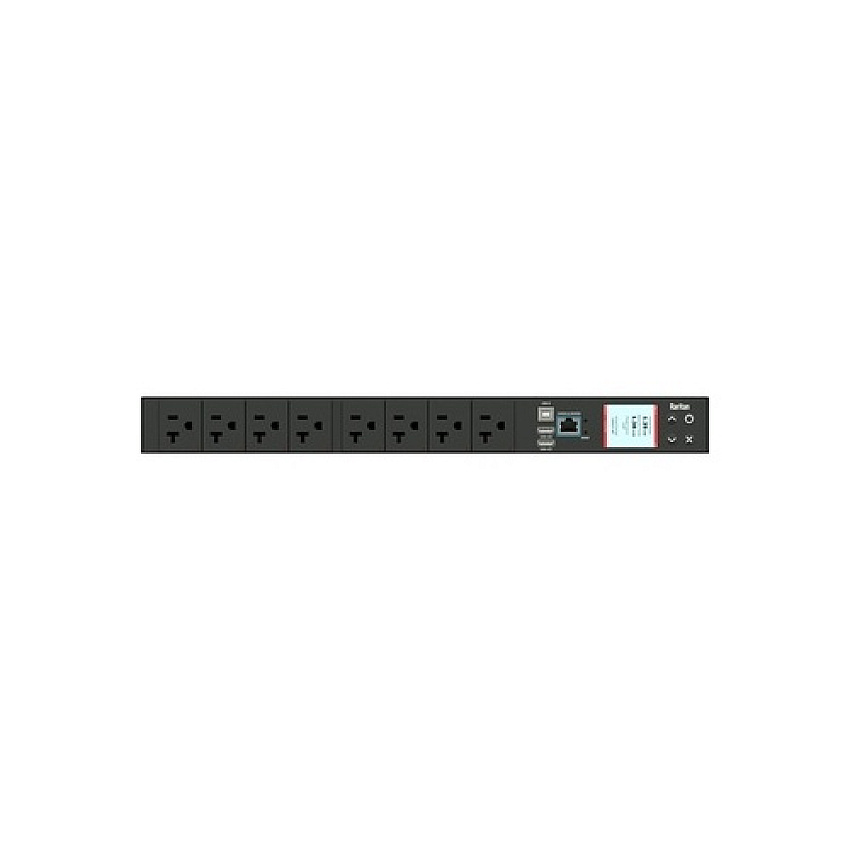

Rack Power Distribution Units (PDUs), 1PH,120V,16A,8x5-20R,L5-15P,1.9kVA,1U
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5145RMPN
RRTPX35145RModel#
PX35145RUPC Code
078581303952UNSPSC Code
0Information
Product Description: Raritan Dominion PX PX3-5145R - power distribution unit - 1400 VADevice Type: Power distribution unit - rack-mountable
Rack Size: 1U
Input Wiring: 1-phase
Input Voltage: AC 120 V
Output Voltage: AC 120 V
Power Capacity: 1400 VA
Input Connectors: 1 x power NEMA 5-15P
Output connectors: 8 x power NEMA 5-20R - 120 V 12 A
Networking: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Color: Black powder coat
Dimensions (WxDxH): 17.3 in x 7.2 in x 1.7 in
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 1U
Color: Black powder coat
Input Voltage: AC 120 V
Input Voltage Range: AC 100 - 120 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA 5-15P
Power Output Connectors Details: 8 x power NEMA 5-20R - 120 V 12 A
Output Voltage: AC 120 V
Max Electric Current: 12 A
Power Capacity: 1400 VA
Remote Management Interface: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Interfaces: 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x monitoring - RJ-12 ¦ 1 x monitoring - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B
Cables Included: Power cable - external - 10 ft
Rack Mounting Kit: Included
Features: LED display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, splash-proof plug
Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus
Min Operating Temperature: 41 °F
Max Operating Temperature: 140 °F
Humidity Range Operating: 5 - 85%
Width: 17.3 in
Depth: 7.2 in
Height: 1.7 in
COO: TAIWAN / TAIWAN
TAA compliance: Yes
