Raritan 1ph 120v Ac 15a 24xnema5-20r; Nema 5-15p (PX35473V)
Raritan 1ph 120v Ac 15a 24xnema5-20r; Nema 5-15p (PX35473V)
-
1PH 120V AC 15A 24xNEMA5-20R; NEMA 5-15P
-
Special order arrives within 3-7 weeks.
Product Description

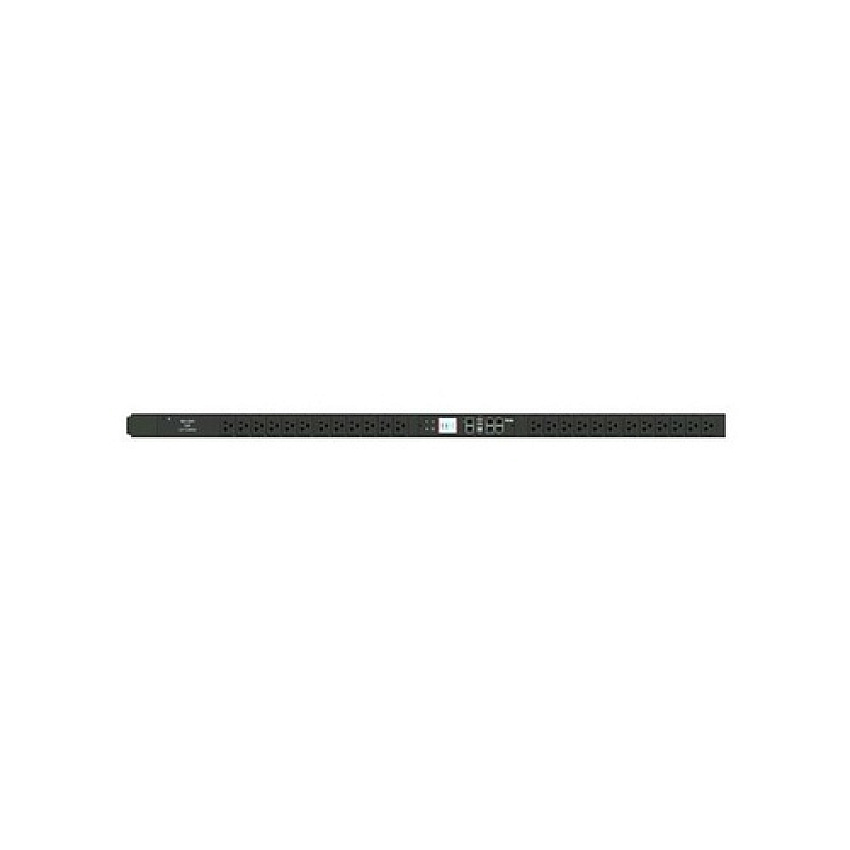

1PH 120V AC 15A (12A rated) 24x NEMA 5-20R; plug: NEMA 5-15P (Bottom-bottom feed), 1.4kVA; Outlet Metered/Switched, 0U vertical PDU, high res color display with field replaceable controller, Ethernet, serial, 2x USB-A
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5473VMPN
RRTPX35473VModel#
PX35473VUNSPSC Code
0Information
Product Description: Raritan Dominion PX PX3-5473V - power distribution unit - 1400 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 0U
Input Wiring: 1-phase
Input Voltage: AC 120 V
Output Voltage: AC 120 V
Power Capacity: 1400 VA
Input Connectors: 1 x power NEMA 5-15P
Output connectors: 24 x power NEMA 5-20R - 120 V 12 A
Networking: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Color: Black powder coat
Dimensions (WxDxH): 2 in x 2.6 in x 51.1 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 0U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 120 V
Input Voltage Range: AC 100 - 120 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA 5-15P
Power Output Connectors Details: 24 x power NEMA 5-20R - 120 V 12 A
Output Voltage: AC 120 V
Max Electric Current: 12 A
Power Capacity: 1400 VA
Remote Management Interface: Ethernet 10/100, RS-232
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Interfaces: 1 x Gigabit LAN - RJ-45 ¦ 2 x LAN - RJ-45 ¦ 1 x monitoring - RJ-45 ¦ 1 x monitoring - RJ-12 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x management (modem) - RJ-45
Cables Included: Power cable - external - 10 ft
Rack Mounting Kit: Included
Features: LED display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, splash-proof plug
Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 0 - 85%
Width: 2 in
Depth: 2.6 in
Height: 51.1 in
Shipping Width: 7.3 in
Shipping Depth: 7.3 in
Shipping Height: 55.4 in
COO: TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
13.23Ships via UPS
