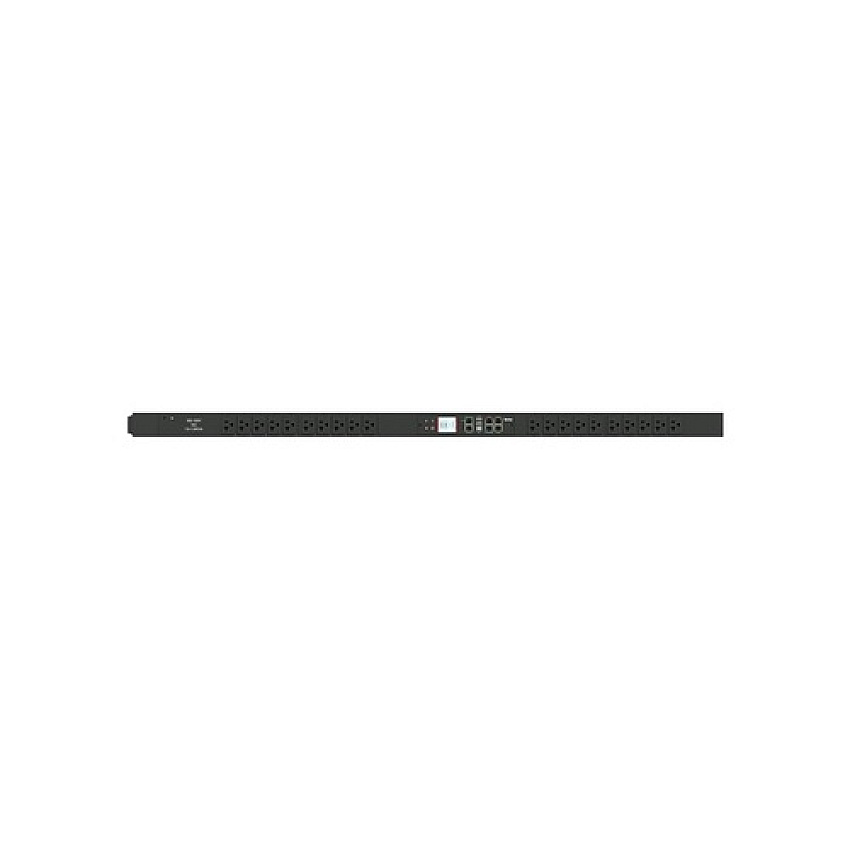

Raritan 1ph,120v,16a,20x5-20r,5-20p,1.9kva,0u (PX35405V)
Raritan 1ph,120v,16a,20x5-20r,5-20p,1.9kva,0u (PX35405V)
-
1PH,120V,16A,20x5-20R,5-20P,1.9kVA,0U
-
Special order arrives within 3-7 weeks.
Product Description
1PH,120V,16A,20x5-20R,5-20P,1.9kVA,0U
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-5405VMPN
RRTPX35405VModel#
PX35405VUNSPSC Code
0Information
Product Description: Raritan Dominion PX PX3-5405V - power distribution unit - 1900 VADimensions (WxDxH): 2 in x 2.6 in x 51.1 in
Networking: Ethernet 10/100, RS-232
Device Type: Power distribution unit - rack-mountable
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Input Voltage: AC 120 V
Output Voltage: AC 120 V
Color: Black powder coat
Rack Size: 0U
Power Capacity: 1900 VA
Input Connectors: 1 x power NEMA 5-20P
Output connectors: 20 x power NEMA 5-20R 16 A
Device Type: Power distribution unit - rack-mountable
Color: Black powder coat
Height (Rack Units): 0U
Interfaces: 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x monitoring - RJ-12 ¦ 1 x monitoring - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B
Features: LED display, voltage monitoring, current meter, cascadable, active power meter, real power meter, power factor meter, splash-proof plug
Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus
Cables Included: Power cable 10 ft
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Remote Management Interface: Ethernet 10/100, RS-232
Min Operating Temperature: 41 °F
Max Operating Temperature: 140 °F
Humidity Range Operating: 5 - 85%
Input Voltage: AC 120 V
Frequency Required: 50/60 Hz
Output Voltage: AC 120 V
Input Voltage Range: AC 100 - 120 V
Power Output Connectors Details: 20 x power NEMA 5-20R 16 A
Max Electric Current: 16 A
Power Capacity: 1900 VA
Input Connectors: 1 x power NEMA 5-20P
Width: 2 in
Depth: 2.6 in
Height: 51.1 in
COO: TAIWAN / TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
12.6Ships via UPS
