Raritan 1 Ph 208v Ac 30a (24a Rated) 20outlets (PX34464R)
Raritan 1 Ph 208v Ac 30a (24a Rated) 20outlets (PX34464R)
-
1 PH 208V AC 30A (24A rated) 20outlets
-
Special order arrives within 3-7 weeks.
Product Description

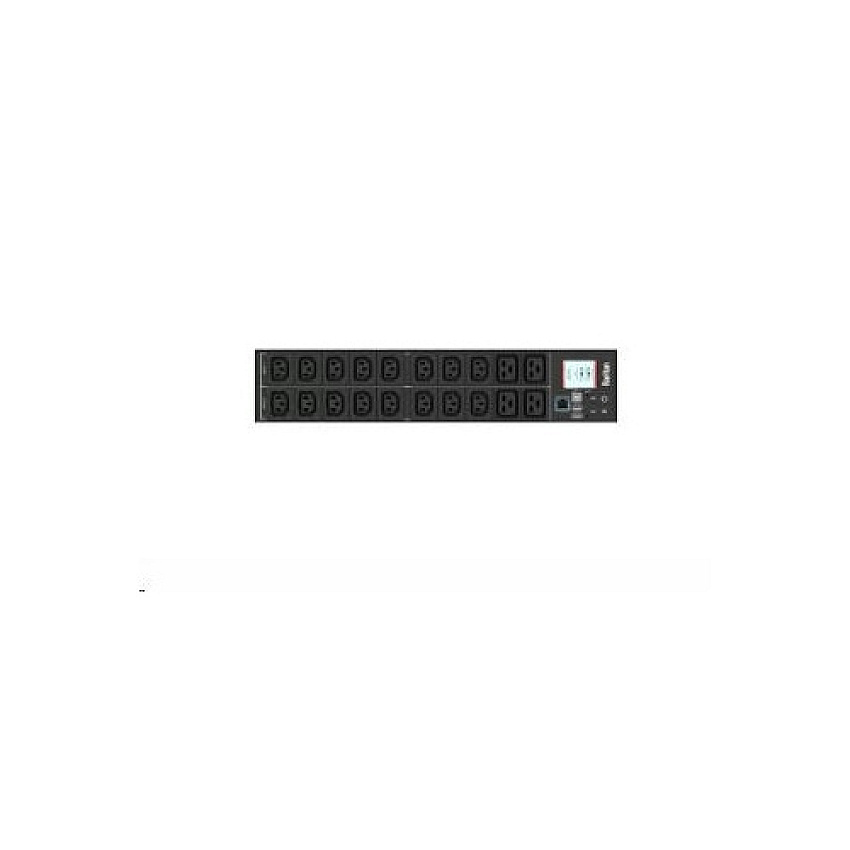

1PH, 208V AC, 30A (24A rated); 20 outlets: 16x C13, 4x C19; plug: NEMA L6-30P (Rear feed), 5.0kVA; Outlet Metered, 2U horizontal PDU, SecureLock ready, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Product Specs
Manufacturer
RaritanCategories
Raritan Computer AccessoriesRaritan Power DevicesRaritan Computer Power Distribution UnitsManufacturer Stock No.
PX3-4464RMPN
RRTPX34464RModel#
PX34464RUNSPSC Code
0Information
Product Description: Raritan Intelligent PX3-4464R - power distribution unit - 5800 VADevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 2U
Weight: 13.89 lbs
Input Wiring: 1-phase
Input Voltage: AC 208 V
Output Voltage: AC 200-240 V
Power Capacity: 5800 VA
Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V
Input Connectors: 1 x power NEMA L6-30P
Output connectors: 16 x power IEC 60320 C13 12A ¦ 4 x power IEC 60320 C19 16A
Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Color: Black powder coat
Dimensions (WxDxH): 17.3 in x 11.5 in x 3.5 in
Manufacturer Warranty: 2-year warranty
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 2U
Cord Length: 10 ft
Color: Black powder coat
Input Voltage: AC 208 V
Input Voltage Range: AC 200 - 240 V
Input Wiring: 1-phase
Frequency Required: 50/60 Hz
Input Connectors: 1 x power NEMA L6-30P
Power Output Connectors Details: 16 x power IEC 60320 C13 12A ¦ 4 x power IEC 60320 C19 16A
Output Voltage: AC 200-240 V
Max Electric Current: 30 A
Power Capacity: 5800 VA
Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Interfaces: 1 x sensor ¦ 1 x modem ¦ 2 x monitoring ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45
Cables Included: Power cable 10 ft
Features: IP44 protection, LCD display, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, 2 x LEGBX66-20 overload protection
Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A
Service & Support: Limited warranty - 2 years
Max Operating Temperature: 140 °F
Humidity Range Operating: 85%
Width: 17.3 in
Depth: 11.5 in
Height: 3.5 in
Weight: 13.89 lbs
Shipping Width: 22 in
Shipping Depth: 21.7 in
Shipping Height: 11.2 in
Shipping Weight: 22.27 lbs
COO: TAIWAN / TAIWAN
TAA compliance: Yes
