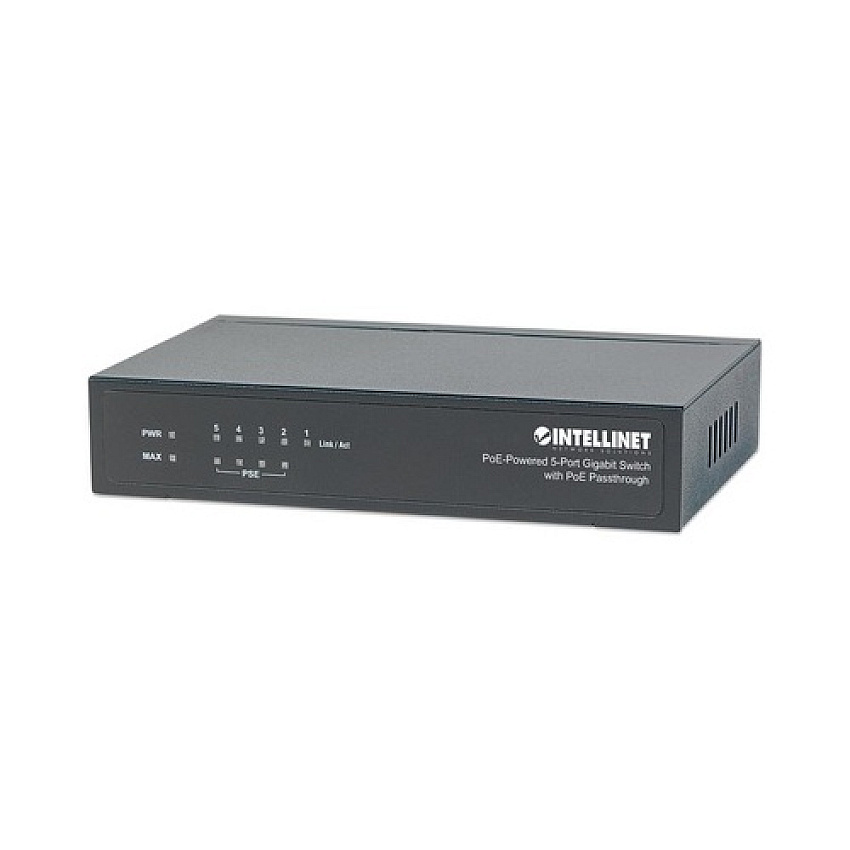

Intellinet 5 Port Gigabit Poe+ Switch (561082)
Intellinet 5 Port Gigabit Poe+ Switch (561082)
-
5 Port Gigabit POE+ Switch
-
Special order arrives within 3-7 weeks.
Product Description
PoE-Powered 5-Port Gigabit Switch with PoE Passthrough. 4 x PSE PoE ports, 1 x PD PoE port, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), IEEE 802.3az Energy Efficient Ethernet, Desktop
Product Specs
Manufacturer
IntellinetCategories
Intellinet Computer AccessoriesIntellinet Networking, Cables & AccessoriesIntellinet Network SwitchesManufacturer Stock No.
561082MPN
ICI561082Model#
561082UPC Code
766623561082UNSPSC Code
0Information
Network Device Type: SwitchModel: IPS-05G-60WB
Form Factor: Desktop
Connectivity Technology: Wired
Data Transfer Rate: 1000 Mbps
Networking / Ports Qty: 5
Data Link Protocol: Fast Ethernet
Power / Device Type: AC Power
Max Power Consumption: 63.75 Watt
Power / Voltage Required: 100 - 240 V AC
Features: Receives power from a PoE injector or PoE switch and provides power to up to four PoE network devices;
Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.);
Can be powered via PoE or the included power adapter;
Total power budget of 60 watts when using AC power;
Total power budget of 26 watts when powered via PD input port;
Power output up to 30 watts per port;
IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports;
Saves installation costs by delivering data and power over existing network cables;
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras);
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection;
10 Gbps switch fabric;
Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification;
Green Ethernet power-saving technology that deactivates unused ports and adjusts power levels based on the cable length;
10/100/1000 auto-sensing ports automatically detect optimal network speeds;
All RJ45 ports with Auto-MDIX (auto uplink) support;
Store and forward switching architecture;
IEEE 802.3x flow control for full duplex;
Supports up to 2048 MAC address entries;
Buffer memory of 1.5 MBits;
Compact desktop format with rugged metal housing;
Fanless design for silent operation;
Mounting holes for wall mounting;
Fully NDAA-compliant;
Three-year warranty;
Power Over Ethernet (PoE) Support: YES
PoE Power Consumption: 60 watts
MAC Address Table Size: 2048 entries
10/100/1000BASE-T Ports: 5
Interfaces: RJ45
Interfaces: RJ45
10/100/1000BASE-T Ports: 5
What's Included: PoE-Powered 5-Port Gigabit Switch with PoE-Passthrough;
Power adapter;
Power cable;
Instructions;
Width: 140 Mm
Depth: 78 Mm
Height: 28 Mm
Weight: 0.27 Kg
Service & Support Type: Three-Year Warranty
Min Operating Temperature: 0 celsius
Max Operating Temperature: 40 celsius
Min Storage Temperature: 0 celsius
Max Storage Temperature: 70 celsius
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
1.95Ships via UPS
YBrand
Intellinet
