Intellinet 24-port Gigabit Ethernet Poe+ Web-managed Switch With 2 Sfp Ports 240w (560559)
Intellinet 24-port Gigabit Ethernet Poe+ Web-managed Switch With 2 Sfp Ports 240w (560559)
-

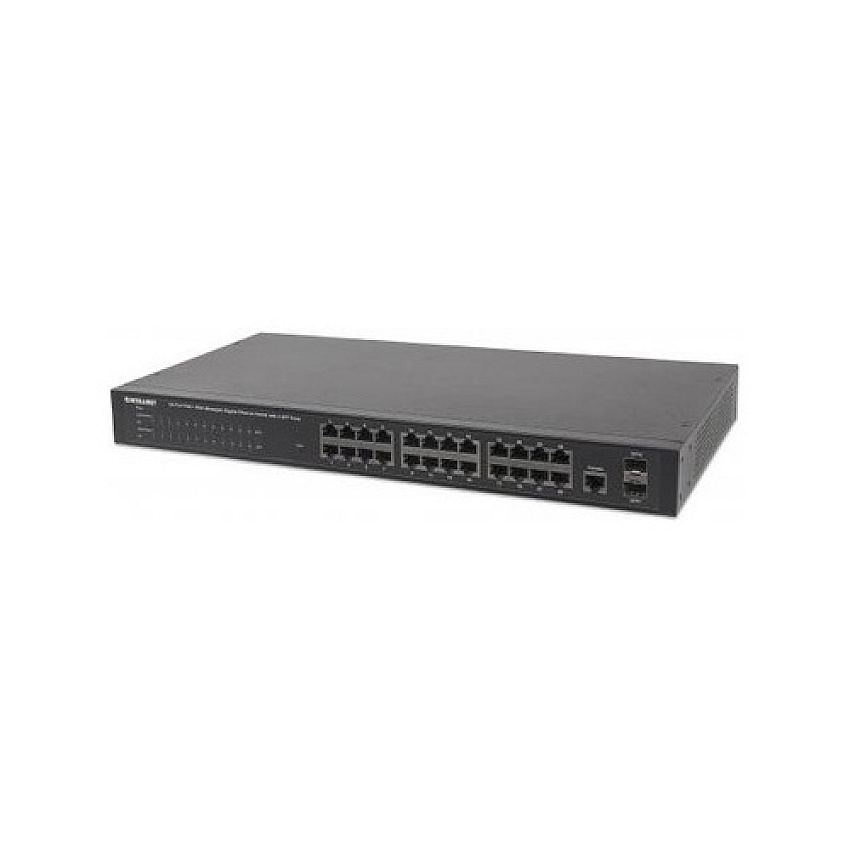

24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports 240W
-
In Stock
Product Description
24 x PoE ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 2 x SFP, Self-Healing Network, Endspan, 19IN Rackmount
Product Specs
Manufacturer
IntellinetCategories
Intellinet Computer AccessoriesIntellinet Networking, Cables & AccessoriesIntellinet Network SwitchesManufacturer Stock No.
560559MPN
ICI560559Model#
560559UPC Code
766623560559UNSPSC Code
0Information
Network Device Type: SwitchModel: IPS-24GM02-240W
Form Factor: Rackmount
Connectivity Technology: Wired
Data Transfer Rate: 1000 Mbps
Networking / Ports Qty: 26
Data Link Protocol: Gigabit Ethernet
Max Power Consumption: 260 Watt
Power / Voltage Required: 90 - 260 V AC
Features: Provides power and data connection for up to 24 PoE network devices;
Save installation cost by delivering data and power over existing network cables;
Domotz compatible for cloud management (may require firmware upgrade);
10/100/1000 auto-sensing ports automatically detect optimal network speeds;
Two small form-factor pluggable GBIC module slots (SFP);
IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports;
Power output up to 30 watts per port;
PoE power budget of 240 watts;
Supports both PoE modes A (even ports) and B (odd ports);
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras);
Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length;
Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification;
IEEE 802.3az (Energy Efficient Ethernet EEE) can be deactivated;
Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection;
All RJ45 ports with Auto-MDIX and NWay auto-negotiation support;
52 Gbps switch fabric;
Web-based configuration;
Remote Reboot/restart;
Supports SNMP management;
Supports VLAN (tag-based and port-based);
Provides IEEE 802.1x port-based security;
Supports link aggregation (trunking);
IGMP Snooping for multicast filtering;
Supports bandwidth control per port;
Supports port mirroring;
Power Over Ethernet (PoE) Support: YES
PoE Power Consumption: 240W
MAC Address Table Size: 8k
10/100/1000BASE-T Ports: 24
SFP+ Ports: 2
Interfaces: RJ45, SFP
Interfaces: RJ45, SFP
10/100/1000BASE-T Ports: 24
SFP+ Ports: 2
What's Included: 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports;
Power cable;
User manual;
Width: 440 Mm
Depth: 208 Mm
Height: 44 Mm
Weight: 3.1 Kg
Service & Support Type: Three-Year Warranty
Min Operating Temperature: 0 celsius
Max Operating Temperature: 40 celsius
Min Storage Temperature: -20 celsius
Max Storage Temperature: 70 celsisu
RoHS: Y
COO: CHINA
TAA compliance: No
Unit of Measure
Item Weight
8.4Ships via UPS
YBrand
Intellinet
$104.73
$107.99
$78.78
$86.99
