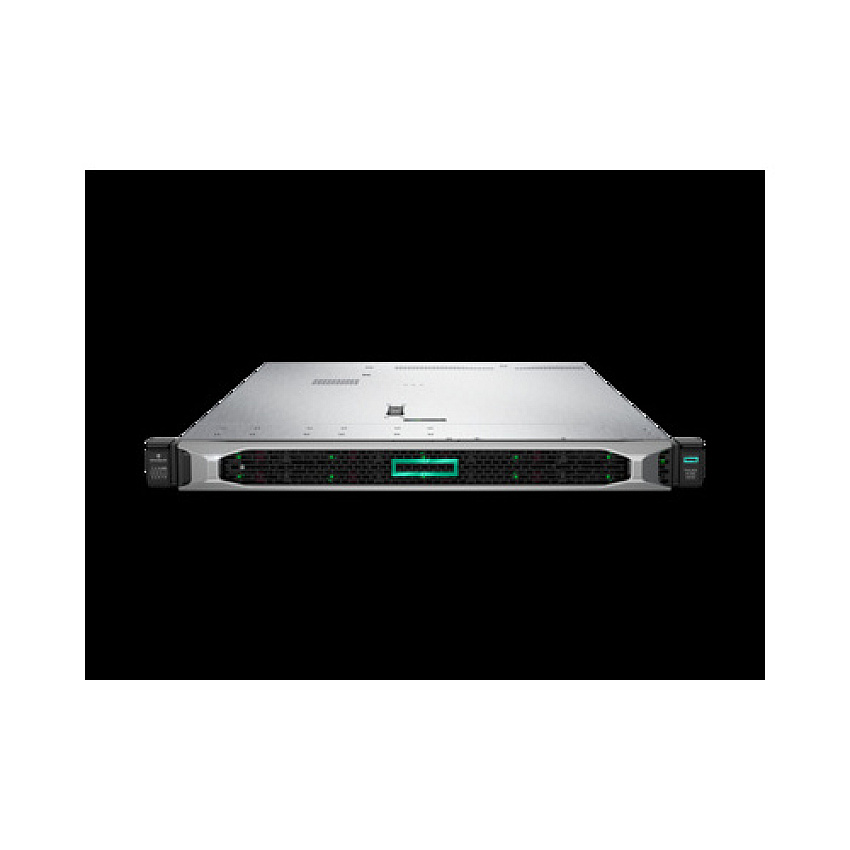

HP e Dl360 Gen10 4214r 1p 32g Nc 8sff Svr (P23579B21)
Model: P23579B21
HP e Dl360 Gen10 4214r 1p 32g Nc 8sff Svr (P23579B21)
Model: P23579B21
-
HPE DL360 GEN10 4214R 1P 32G NC 8SFF SVR
-
Out Of Stock
Product Description
HPE ProLiant DL360 Gen10 server - 1U - Intel Xeon 4214R 2.4GHz 12-Core 16.5MB - 32GB RDIMM DDR4 - HPE Smart Array P408i-a/2 GB and Smart Storage Battery - HPE Ethernet 1Gb 4-port 366FLR Adapter - 2 PCIe 3.0, for detailed descriptions reference the QuickSp
Product Specs
Manufacturer
HPManufacturer Stock No.
P23579-B21MPN
HPEP23579B21Model#
P23579B21UPC Code
190017442853UNSPSC Code
0Information
Product Description: HPE ProLiant DL360 Gen10 Network Choice - rack-mountable - AI Ready - Xeon Silver 4214R 2.4 GHz - 32 GB - no HDDType: Server - rack-mountable AI Ready
Height (Rack Units): 1U
Localization: Region: Worldwide
Server Scalability: 2-way
Processor: 1 x Intel Xeon Silver 4214R / 2.4 GHz (, up to 3.5 GHz, (12-core)
Processor Socket: FCLGA3647 Socket
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory: 16.5 MB L3 cache
Cache Per Processor: 16.5 MB
RAM: 32 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC - PC4-23466
Storage Controller: RAID (SATA 6Gb/s) - PCIe 3.0 x4 (HPE Smart Array S100i SR Software RAID); RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HPE Smart Array P408i-a SR Gen10)
Server Storage Bays: Hot-swap 2.5"
Hard Drive: No HDD
Optical Storage: No optical drive
Video Memory: 16 MB
Networking: 1GbE
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Optional
OS Provided: No operating system
Dimensions (WxDxH): 17.1 in x 27.8 in x 1.7 in
Weight: 28.75 lbs
Environmental Standards: ENERGY STAR Qualified
Manufacturer Warranty: Limited warranty - parts and labor - 3 years - on-site
Type: Server - AI Ready
Product Form Factor: Rack-mountable - 1U
Built-in Devices: LED panel
Server Scalability: 2-way
Hot-Swap Bays Qty: 8
Localization: Region: Worldwide
CPU: Intel Xeon Silver 4214R
Clock Speed: 2.4 GHz
Max Turbo Speed: 3.5 GHz
Number of Cores: 12-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621
Installed Size: L3 cache - 16.5 MB
Cache Per Processor: 16.5 MB
Installed Size: 32 GB (installed) / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2400 MHz
Rated Memory Speed: 2933 MHz
Memory Specification Compliance: PC4-23466
Form Factor: DIMM 288-pin
Slots: 24 (total) / 23 (empty)
Features: Registered, Online Spare Memory, dual rank, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, 6-channel memory architecture
Configuration Features: 1 x 32 GB
RAM Supported: 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC ¦ 6 TB - HPE Persistent Memory - Optane DC Persistent
Type: No HDD
Type: 1 x RAID - PCIe 3.0 x4
Controller Interface Type: SATA 6Gb/s
Storage Controller Name: HPE Smart Array S100i SR Software RAID
Channel Qty: 14
RAID Level: RAID 0, RAID 1, RAID 5, RAID 10
Type: 1 x RAID - PCIe 3.0 x8
Controller Interface Type: SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name: HPE Smart Array P408i-a SR Gen10
Channel Qty: 8
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Type: No optical drive
Monitor Type: None.
Video Memory: 16 MB
Video Interfaces: VGA
Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: HPE 366FLR
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), PXE support
Bays: 1 (total) / 1 (free) x external Universal Media Bay ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots: 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces: 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO - RJ-45 ¦ 3 x USB 3.0 (1 front, 2 rear)
Included Accessories: HPE standard heatsink, SFF Easy install rails
Compliant Standards: AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, Redfish API, UEFI
Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 500 Watt
80 PLUS Certification: 80 PLUS Platinum
OS Provided: No operating system
OS Certified: Microsoft Windows Server 2012 R2 Datacenter, Microsoft Windows Server 2012 R2 Standard, Microsoft Windows Server 2012 R2 Essentials, Microsoft Windows Server 2012 R2 with Hyper-V, SuSE Linux Enterprise Server 12 SP3, Microsoft Windows Server 2016 Standard, Microsoft Windows Server 2016 Datacenter, Microsoft Windows Server 2016 Essentials, Microsoft Windows Server 2016 with Hyper-V, Red Hat Enterprise Linux 8.0, VMware vSphere 6.0 update 3, VMware vSphere 6.5 (ESXi) Update 2, Microsoft Windows Server 2019 Essentials, Microsoft Windows Server 2019 Standard, Microsoft Windows Server 2019 Datacenter, SUSE Linux Enterprise Server 15, VMware vSphere 6.7 (ESXi) Update 1, Microsoft Windows Server 2019 with Hyper-V, Red Hat Enterprise Linux 7.6, SuSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7
ENERGY STAR Certified: Yes
ENERGY STAR Version: 3.0
Service & Support: Limited warranty - parts and labor - 3 years - on-site
Width: 17.1 in
Depth: 27.8 in
Height: 1.7 in
Weight: 28.75 lbs
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 8 - 90% (non-condensing)
COO: CHINA / CZECHIA / MEXICO
