HP e 5945 2-slot Switch (JQ075A)
Model: JQ075A
HP e 5945 2-slot Switch (JQ075A)
Model: JQ075A
-

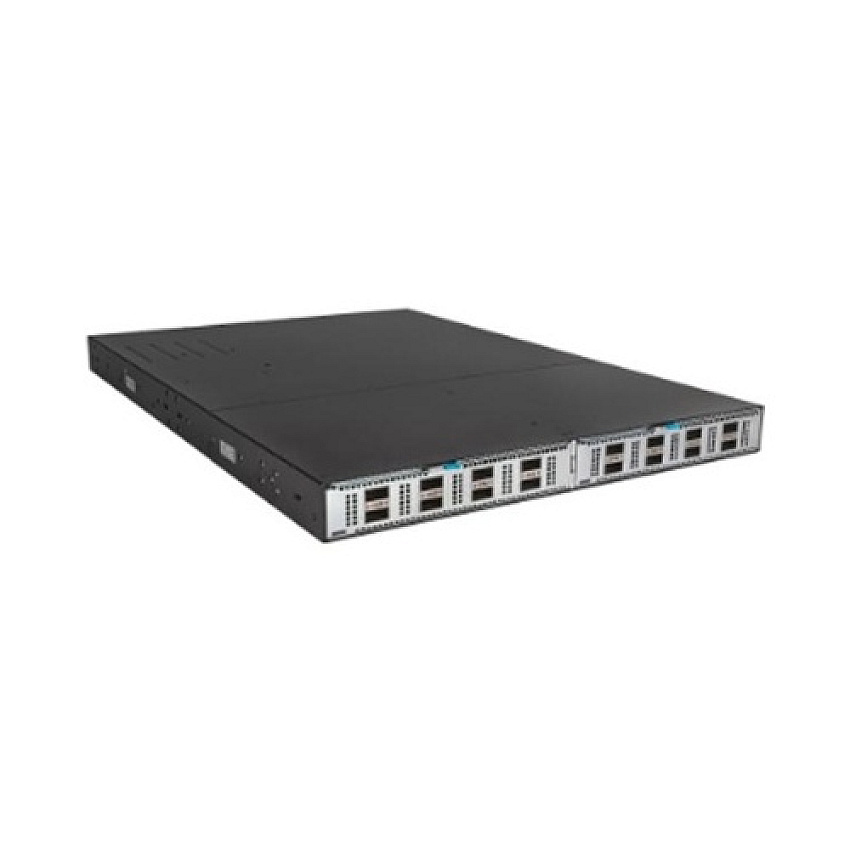

HPE 5945 2-slot Switch
-
Special order arrives within 3-7 weeks.
Product Description
HPE 5945 2-slot Switch
Product Specs
Manufacturer
HPManufacturer Stock No.
JQ075AMPN
HPEJQ075AModel#
JQ075AUPC Code
190017209449UNSPSC Code
0Information
Product Description: HPE FlexFabric 5945 2-slot - switch - 16 ports - managed - rack-mountableDevice Type: Switch - 16 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 2 x 100 Gigabit QSFP28
Performance: Latency (64-byte packets): 1 µs ¦ Throughput: 2024 Mpps ¦ Routing/switching capacity: 3.6 Tbps
Capacity: IPv4 routing table entries: 324000 ¦ IPv6 routing table entries: 162000 ¦ MAC address entries: 288000
MAC Address Table Size: 288K entries
Jumbo Frame Support: 9416 bytes
Routing Protocol: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv6 routing, ECMP, RIPng, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), BGP+
Remote Management Protocol: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Features: Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, packet filtering, port mirroring, DiffServ support, WRR queuing, IPv6 support, SNTP support, WFQ, sFlow, PIM snooping, STP support, RSTP support, VRRP support, MSTP support, tunneling, DCBX support, DHCP snooping, QoS, CAR, Jumbo Frames support, DLDP support, ECMP, IPv4 support, LLDP support, DHCP relay, LACP, Port Security, DCB, MIB, NTP time synchronization, FCoE forwarding, Ingress Layer 2 MAC ACLs, CoS, SP, IRF technology, FCoE support, ISSU, 32MB packet buffer, UDP shaping, NTP, WDRR, ToR, 2 fan tray slots
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qaz, IEEE 802.3ag
Power: AC 120/230 V - power supply not installed
Power Redundancy: Optional
Dimensions (WxDxH): 17.3 in x 26 in x 1.7 in
Weight: 22.93 lbs
System Requirements: Comware v7
Device Type: Switch - 16 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 2 x 100 Gigabit QSFP28
Performance: Latency (64-byte packets): 1 µs ¦ Throughput: 2024 Mpps ¦ Routing/switching capacity: 3.6 Tbps
Capacity: IPv4 routing table entries: 324000 ¦ IPv6 routing table entries: 162000 ¦ MAC address entries: 288000
MAC Address Table Size: 288K entries
Jumbo Frame Support: 9416 bytes
Max Units In A Stack: 9
Routing Protocol: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv6 routing, ECMP, RIPng, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), BGP+
Remote Management Protocol: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method: Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features: Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, packet filtering, port mirroring, DiffServ support, WRR queuing, IPv6 support, SNTP support, WFQ, sFlow, PIM snooping, STP support, RSTP support, VRRP support, MSTP support, tunneling, DCBX support, DHCP snooping, QoS, CAR, Jumbo Frames support, DLDP support, ECMP, IPv4 support, LLDP support, DHCP relay, LACP, Port Security, DCB, MIB, NTP time synchronization, FCoE forwarding, Ingress Layer 2 MAC ACLs, CoS, SP, IRF technology, FCoE support, ISSU, 32MB packet buffer, UDP shaping, NTP, WDRR, ToR, 2 fan tray slots
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qaz, IEEE 802.3ag
RAM: 8 GB SDRAM
Flash Memory: 1 GB
Interfaces: 2 x 100Gbit LAN QSFP28 ¦ 1 x serial (console) RJ-45 ¦ 2 x management (LAN) RJ-45 ¦ 1 x USB 2.0 ¦ 1 x mini-USB 2.0
Expansion Slots: 2 (total) / 2 (free) x expansion slot
Installed Modules Qty (Max): 0 (installed) / 2 (max)
Power Device: Internal power supply (not installed) - hot-plug
Max Supported Qty: 2
Power Redundancy: Optional
Voltage Required: AC 120/230 V
Compliant Standards: CISPR 22 Class A, GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, ANATEL, UL-AR, EN 60825-1, ANSI C63.4-2003, EN 60825-2, EN 61000-3-2: 2006, VCCI Class A, EN 61000-3-3: 1995+A1: 2001+A2: 2005, EMC 2004/108/EC, EN 300 386 V1.3.3, EN 55022 Class A, FCC CFR47 Part 15 A, EN 60950-1/A11, FDA 21 CFR, CAN/CSA-C22.2 No. 60950-1, EN 55024: 1998+A1: 2001+A2: 2003
OS Required: Comware v7
Width: 17.3 in
Depth: 26 in
Height: 1.7 in
Weight: 22.93 lbs
Shipping Weight: 28.88 lbs
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 5 - 95% (non-condensing)
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
25.2Ships via UPS
YBrand
HP
$9,113.80
$10,495.00
$7,344.01
$8,457.00
$5,387.80
$6,465.36
