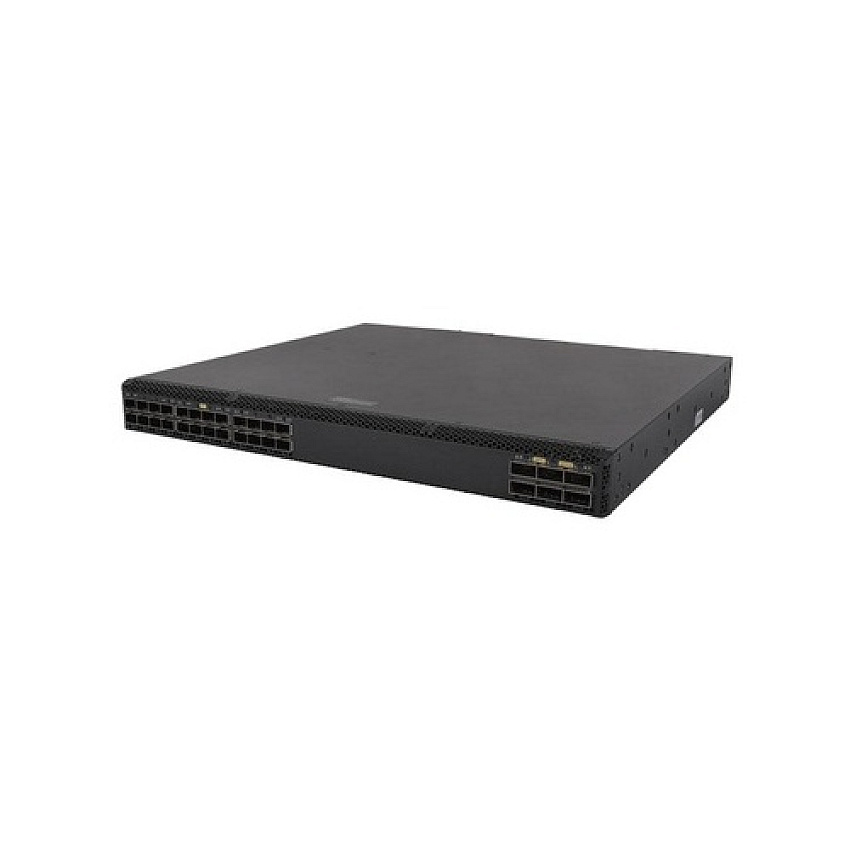

HP e 5710 24sfp+ 6qs+/2qs28 Switch (JL587A)
Model: JL587A
HP e 5710 24sfp+ 6qs+/2qs28 Switch (JL587A)
Model: JL587A
-
HPE 5710 24SFP+ 6QS+/2QS28 Switch
-
Special order arrives within 3-7 weeks.
Product Description
HPE 5710 24SFP+ 6QS+/2QS28 Switch
Product Specs
Manufacturer
HPManufacturer Stock No.
JL587AMPN
HPEJL587AModel#
JL587AUNSPSC Code
0Information
Product Description: HPE FlexFabric 5710 24SFP+ 6QS+/2QS28 - switch - 24 ports - managed - rack-mountableDevice Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 24 x 1 Gigabit / 10 Gigabit SFP+
Performance: Throughput: 714 Mpps ¦ Routing/switching capacity: 960 Gbps ¦ Latency (10 Gbps): 1.5 µs
Capacity: IPv4 routing table entries: 16000 ¦ IPv6 routing table entries: 8000 ¦ Virtual interfaces (VLANs): 4094 ¦ ARP entries: 68000 ¦ Static ARP entries: 1000
MAC Address Table Size: 208000 entries
Jumbo Frame Support: Yes
Routing Protocol: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI
Features: Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, IPv6 support, SNTP support, WFQ, WRED, sFlow, PIM snooping, STP support, RSTP support, MSTP support, tunneling, DCBX support, priority-based flow control, DHCP snooping, ACL support, QoS, Jumbo Frames support, MLD snooping, DLDP support, ECMP, IPv4 support, LLDP support, DHCP relay, Port Security, DCB, role based access control, MIB, NTP time synchronization, 12MB packet buffer, FCoE forwarding, CoS, SP, IRF technology, DSCP support, FCoE support, ToR, 4 fan tray slots
Compliant Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.3ag
Power Redundancy: Optional
Dimensions (WxDxH): 17.3 in x 15.7 in x 1.7 in
Weight: 18.85 lbs
System Requirements: Comware v7
Device Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 24 x 1 Gigabit / 10 Gigabit SFP+
Performance: Throughput: 714 Mpps ¦ Routing/switching capacity: 960 Gbps ¦ Latency (10 Gbps): 1.5 µs
Capacity: IPv4 routing table entries: 16000 ¦ IPv6 routing table entries: 8000 ¦ Virtual interfaces (VLANs): 4094 ¦ ARP entries: 68000 ¦ Static ARP entries: 1000
MAC Address Table Size: 208000 entries
Jumbo Frame Support: Yes
Routing Protocol: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI
Authentication Method: Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features: Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, IPv6 support, SNTP support, WFQ, WRED, sFlow, PIM snooping, STP support, RSTP support, MSTP support, tunneling, DCBX support, priority-based flow control, DHCP snooping, ACL support, QoS, Jumbo Frames support, MLD snooping, DLDP support, ECMP, IPv4 support, LLDP support, DHCP relay, Port Security, DCB, role based access control, MIB, NTP time synchronization, 12MB packet buffer, FCoE forwarding, CoS, SP, IRF technology, DSCP support, FCoE support, ToR, 4 fan tray slots
Compliant Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.3ag
RAM: 4 GB SDRAM
Flash Memory: 1 GB
Interfaces: 24 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x 10/100/1000 Base-T management ¦ 1 x SFP management ¦ 1 x console (mini-USB) ¦ 1 x serial (console) RJ-45
Power Device: Internal power supply (not installed) - hot-plug
Max Supported Qty: 2
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
MTBF: 145.41 hours
Compliant Standards: CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, VCCI Class A, CNS 13438, FCC CFR47 Part 15 A, KN32, KN35, AS/NZS CISPR 32 Class A, CNS 14336-1, TCVN 7189, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, ETSI EN 300 386
OS Required: Comware v7
Width: 17.3 in
Depth: 15.7 in
Height: 1.7 in
Weight: 18.85 lbs
Shipping Weight: 18.98 lbs
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 10 - 90% (non-condensing)
COO: CHINA
TAA compliance: No
