HP e 5520 24g 4sfp+ Hi Swch (R8M25A)
Model: R8M25A
HP e 5520 24g 4sfp+ Hi Swch (R8M25A)
Model: R8M25A
-

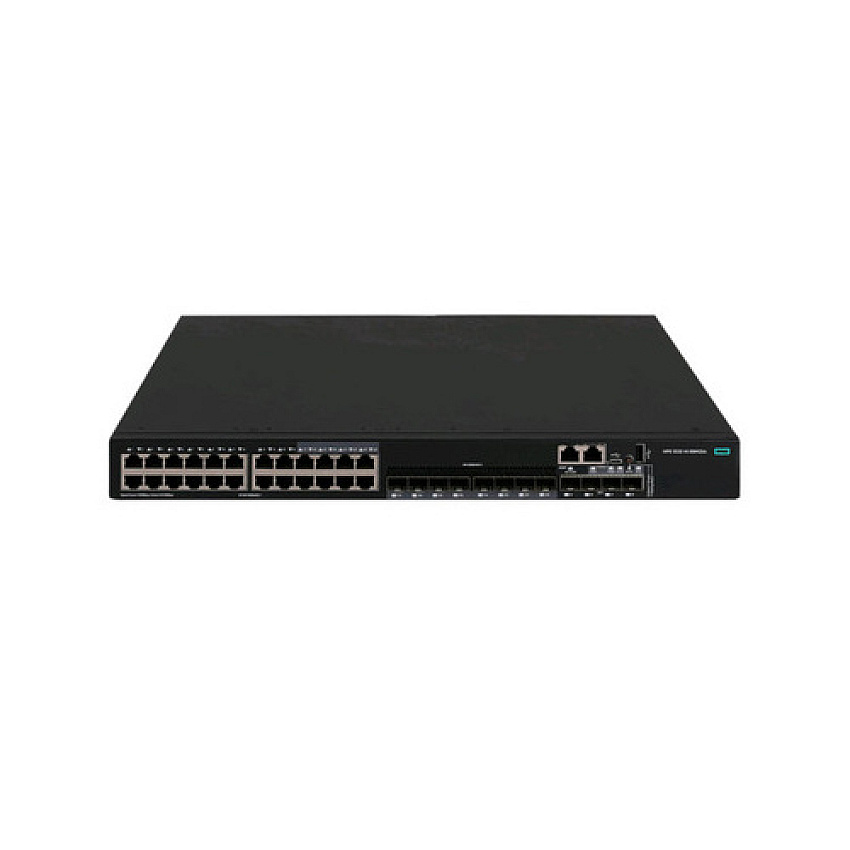

HPE 5520 24G 4SFP+ HI SWCH
-
Special order arrives within 3-7 weeks.
Product Description
HPE FlexNetwork 5520HI 24G 4SFP+ 24 10/100/1000BASE-T 4 10G/1G BASE-X SFP+ 1 Exp 2 PS Slot Switch
Product Specs
Manufacturer
HPManufacturer Stock No.
R8M25AMPN
HPER8M25AModel#
R8M25AUPC Code
190017526072UNSPSC Code
0Information
Product Description: HPE FlexNetwork 5520 24G 4SFP+ HI 1-slot Switch - switch - 24 ports - managed - rack-mountableDevice Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Side to back airflow rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
Performance: Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 180 Mbps ¦ Routing/switching capacity: 288 Gbps
Capacity: IPv4 routing table entries: 32768 ¦ IPv6 routing table entries: 16384
MAC Address Table Size: 64K entries
Jumbo Frame Support: 10000 bytes
Routing Protocol: OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS
Features: Flow control, layer 3 switching, DHCP support, BOOTP support, ARP support, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, WRR queuing, IPv6 support, full duplex mode, WFQ, WRED, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, MLD snooping, DLDP support, RRPP, ECMP, BFD, STP Root Guard, IPv4 support, DWRR, LLDP support, DHCP relay, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, port isolation, 4MB packet buffer, 802.1x authentication, MACsec support, OpenFlow support, VPLS, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, proxy ARP, hot swap fan tray, LPM support, IRF Technology, BPDU protection, UDP support, MRP, LACP, SP, GARP, ToS, WRR
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
Power: AC 100-240 V (50/60 Hz) - power supply not installed
Dimensions (WxDxH): 17.3 in x 14.2 in x 1.7 in
Weight: 14.77 lbs
Pricing Type: CTO
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Side to back airflow rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
Performance: Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 180 Mbps ¦ Routing/switching capacity: 288 Gbps
Capacity: IPv4 routing table entries: 32768 ¦ IPv6 routing table entries: 16384
MAC Address Table Size: 64K entries
Jumbo Frame Support: 10000 bytes
Max Units In A Stack: 9
Routing Protocol: OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS
Encryption Algorithm: SSL
Authentication Method: Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
Features: Flow control, layer 3 switching, DHCP support, BOOTP support, ARP support, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, WRR queuing, IPv6 support, full duplex mode, WFQ, WRED, sFlow, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, MLD snooping, DLDP support, RRPP, ECMP, BFD, STP Root Guard, IPv4 support, DWRR, LLDP support, DHCP relay, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, port isolation, 4MB packet buffer, 802.1x authentication, MACsec support, OpenFlow support, VPLS, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, proxy ARP, hot swap fan tray, LPM support, IRF Technology, BPDU protection, UDP support, MRP, LACP, SP, GARP, ToS, WRR
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
RAM: 2 GB SDRAM
Flash Memory: 512 MB
Status Indicators: Power, system, operation mode
Interfaces: 24 x 1000Base-T RJ-45 ¦ 4 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console) ¦ 1 x management RJ-45 ¦ 1 x USB 2.0
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max): 0 (installed) / 1 (max)
Power Device: Internal power supply (not installed) - hot-plug
Max Supported Qty: 2
Power Provided: 2 A
Voltage Required: AC 100-240 V (50/60 Hz)
Rack Mounting Kit: Included
Compliant Standards: EN55024, AS/NZS 60950-1, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, EN 61000-4-29, ANSI C63.4-2009, EN 60825-2, IPv6 Ready, EN 61000-3-3: 2008, EN 61000-3-2: 2006+A1: 2009+A2: 2009, EAC, EN 61000-4-5: 2006, EN 61000-4-6: 2009, EN 61000-4-11: 2004, EN 300 386 V1.6.1, EMC 2004/108/EC, VCCI V-3/2013.04 Class A, CISPR 24: 2010, EN 55022: 2010, CISPR 22: 2008, EN 300 386, FDA 21 CFR, VCCI V-3/2012.04, EN 61000-4-3: 2006, CAN/CSA-C22.2 No. 60950-1, EN 61000-4-4: 2012
Pricing Type: CTO
Width: 17.3 in
Depth: 14.2 in
Height: 1.7 in
Weight: 14.77 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 23 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 5 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 95% (non-condensing)
COO: CHINA
TAA compliance: No
