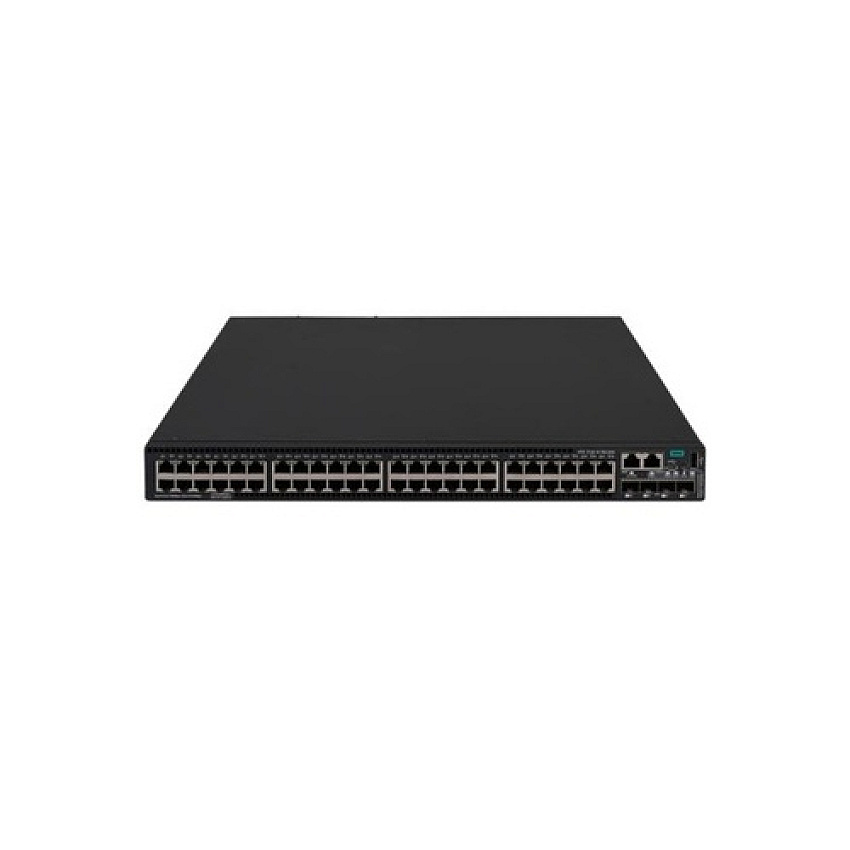

HP e 5140 48g Poe+ 4sfp+ 1-slot Hi Sw (R9L64A)
Model: R9L64A
HP e 5140 48g Poe+ 4sfp+ 1-slot Hi Sw (R9L64A)
Model: R9L64A
-
HPE 5140 48G POE+ 4SFP+ 1-SLOT HI SW
-
Special order arrives within 3-7 weeks.
Product Description
HPE 5140 48G PoE+ 4SFP+ 1-slot HI Sw
Product Specs
Manufacturer
HPManufacturer Stock No.
R9L64AMPN
HPER9L64AModel#
R9L64AUPC Code
190017587899UNSPSC Code
0Information
Product Description: HPE FlexNetwork 5140 HI - switch - 1-slot - 48 ports - managed - rack-mountableDevice Type: Switch - 48 ports - L3 - managed
Enclosure Type: Side to back airflow rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
Performance: Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 180 Mpps ¦ Routing/switching capacity: 336 Gbps
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9KB
Routing Protocol: OSPF, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, OSPFv3, VRRPE, static IPv4 routing, static IPv6 routing, CIDR
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SNMP 6, NTP, ICMP, RADIUS
Features: Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, High Availability, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, CAR, DHCP server, MLD snooping, DLDP support, EAD, STP Root Guard, DHCP relay, LACP, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, port isolation, OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, LLDP-MED, Smart Link, Guest VLAN, proxy ARP, WRR, IRF Technology, STP BPDU port protection, UDP support, MRP
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
Dimensions (WxDxH): 17.3 in x 18.1 in x 1.7 in
Weight: 20.28 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 48 ports - L3 - managed
Enclosure Type: Side to back airflow rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
Performance: Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 180 Mpps ¦ Routing/switching capacity: 336 Gbps
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9KB
Routing Protocol: OSPF, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, OSPFv3, VRRPE, static IPv4 routing, static IPv6 routing, CIDR
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SNMP 6, NTP, ICMP, RADIUS
Encryption Algorithm: SSL
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
Features: Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, High Availability, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, CAR, DHCP server, MLD snooping, DLDP support, EAD, STP Root Guard, DHCP relay, LACP, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, port isolation, OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, LLDP-MED, Smart Link, Guest VLAN, proxy ARP, WRR, IRF Technology, STP BPDU port protection, UDP support, MRP
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
RAM: 2 GB SDRAM
Flash Memory: 512 MB
Interfaces: 48 x 1000Base-T RJ-45 ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x console RJ-45 management ¦ 1 x mini-USB management ¦ 1 x management RJ-45 ¦ 1 x USB 2.0
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Power Device: Internal power supply (not installed)
Max Supported Qty: 2
Power Consumption Stand by: 40 Watt
Included Accessories: 2 fan trays
Rack Mounting Kit: Included
Compliant Standards: IEC 61000-4-11, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, AS/NZS 60950-1, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, EN 60825-2, EAC, IEC 61000-4-2: 2008, IEC 61000-4-4: 2004, IEC 61000-4-8: 2009, IEC 61000-4-11: 2004, EN 61000-3-3: 2013, ETSI EN 300 386 V1.6.1: 2012, EN 61000-3-2: 2014, FCC CFR47 Part 15 B Class A, FDA 21 CFR, ANSI C63.4-2014, EN 55032: 2015 Class A, CISPR 32: 2015 Class A, IEC 61000-4-3: 2010, IEC 61000-4-5: 2014, IEC 61000-4-6: 2013, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32: 2016 Class A, AS/NZS CISPR32: 2015 Class A, ETSI EN 300 386 V2.1.1: 2016-07, ICES-003 issue 7 Class A
Width: 17.3 in
Depth: 18.1 in
Height: 1.7 in
Weight: 20.28 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 23 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 5 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 95% (non-condensing)
COO: CHINA
