HP Aruba Ion 1960 12xt 4xf Sw L6-20 220v-na (JL805A#B2E)
Model: JL805A#B2E
HP Aruba Ion 1960 12xt 4xf Sw L6-20 220v-na (JL805A#B2E)
Model: JL805A#B2E
-
ARUBA ION 1960 12XT 4XF SW L6-20 220V-NA
-
Special order arrives within 3-7 weeks.
Product Description

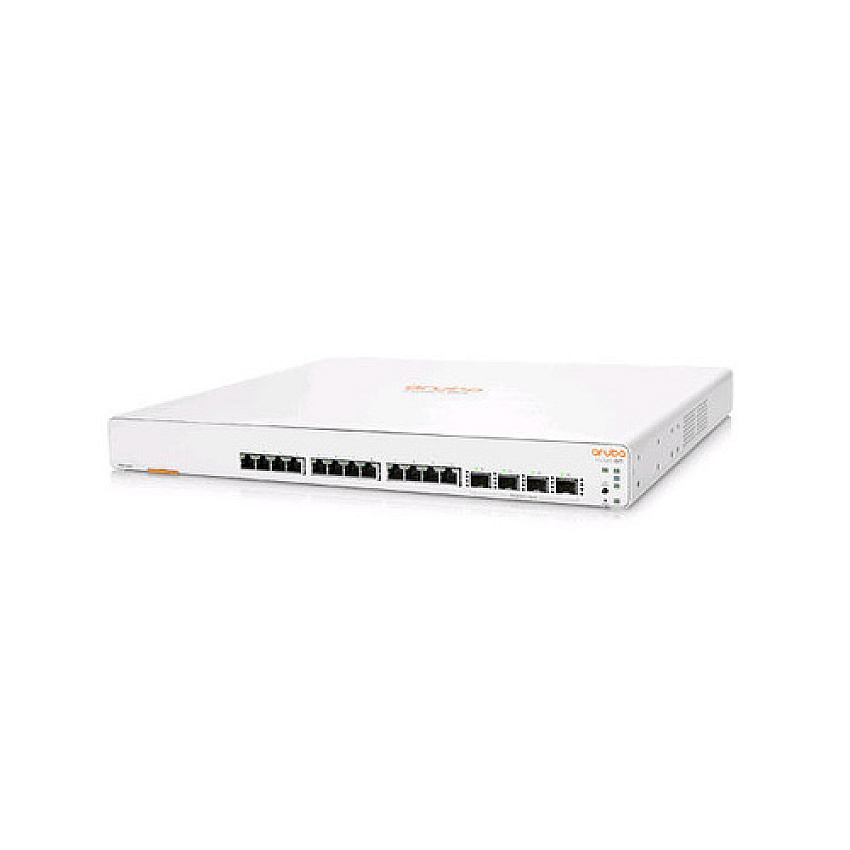

Aruba Instant On 1960 Switch Series - Single Core ARMv7 Cortex-A9 2Ghz - 12 RJ-45 100/1000/10GBASE-T ports, 4 SFP+ 10GbE ports - 100 - 240 VAC - Maximum: 100-127V: 130W 200-220V: 160W Idle: 100-127V: 60W 200-220V: 80W - Limited Lifetime Warranty
Product Specs
Manufacturer
HPManufacturer Stock No.
JL805A#B2EMPN
HPEJL805AB2EModel#
JL805A#B2EUNSPSC Code
0Information
Product Description: HPE Aruba Instant On 1960 12XGT 4SFP+ Switch - switch - 12 ports - smart - rack-mountableDevice Type: Switch - 12 ports - L2+ - smart - stackable
Enclosure Type: Rack-mountable
Subtype: 10 Gigabit Ethernet
Ports: 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+
Performance: Latency (100 Mbps): 7.4 µs ¦ Latency (1 Gbps): 4.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 238 Mpps ¦ Switching capacity: 320 Gbps
Capacity: IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 512
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, RADIUS
Features: Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Trusted Platform Module (TPM), Cable Diagnostics Function, DHCP relay, Port Security, port based access control, DHCP client, Energy Efficient Ethernet, Class of Service (CoS), cloud managed, IP source guard, Internet Control Message Protocol (ICMP), dual image support, DNS client, LLDP-MED, ingress rate limiting, protected ports, BPDU Filter, Weighted Round Robin (WRR), ARP filtering, DSCP prioritization, auto voice VLAN, loop protection
Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Power: AC 100-240 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 13.8 in x 1.7 in
Weight: 9.48 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 12 ports - L2+ - smart - stackable
Enclosure Type: Desktop, rack-mountable
Subtype: 10 Gigabit Ethernet
Ports: 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+
Performance: Latency (100 Mbps): 7.4 µs ¦ Latency (1 Gbps): 4.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 238 Mpps ¦ Switching capacity: 320 Gbps
Capacity: IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 512
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, RADIUS
Encryption Algorithm: SSL
Authentication Method: RADIUS
Features: Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Trusted Platform Module (TPM), Cable Diagnostics Function, DHCP relay, Port Security, port based access control, DHCP client, Energy Efficient Ethernet, Class of Service (CoS), cloud managed, IP source guard, Internet Control Message Protocol (ICMP), dual image support, DNS client, LLDP-MED, ingress rate limiting, protected ports, BPDU Filter, Weighted Round Robin (WRR), ARP filtering, DSCP prioritization, auto voice VLAN, loop protection
Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor: 1: 2 GHz
Status Indicators: Port status
Interfaces: 12 x 10Gbit LAN RJ-45 ¦ 4 x 10Gbit LAN SFP+
Power Device: Internal power supply
Voltage Required: AC 100-240 V (50/60 Hz)
Power Consumption Operational: 60 Watt
Rack Mounting Kit: Included
MTBF: 88.8 years
Compliant Standards: Plug and Play, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, VCCI Class A, IEC 60825-1 Class 1, FCC CFR47 Part 15 A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 62368-1 Second Edition, UL 62368-1 Second Edition, IEC/EN60950-1: 2006 +A11: 2009 +A1: 2010 +A12: 2011 +A2: 2013, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, EN 55032/CISPR 32 Class A, CISPR 35, IEC 62368-1 Second Edition, UL 62368-1 Third Edition, EN 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition
Width: 17.4 in
Depth: 13.8 in
Height: 1.7 in
Weight: 9.48 lbs
Service & Support: Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (non-condensing)
COO: CHINA
TAA compliance: No
