HP e Networking Instant On 1930 48g 4sfp+ Switch Us (JL685A#ABA)
Model: JL685A#ABA
HP e Networking Instant On 1930 48g 4sfp+ Switch Us (JL685A#ABA)
Model: JL685A#ABA
-

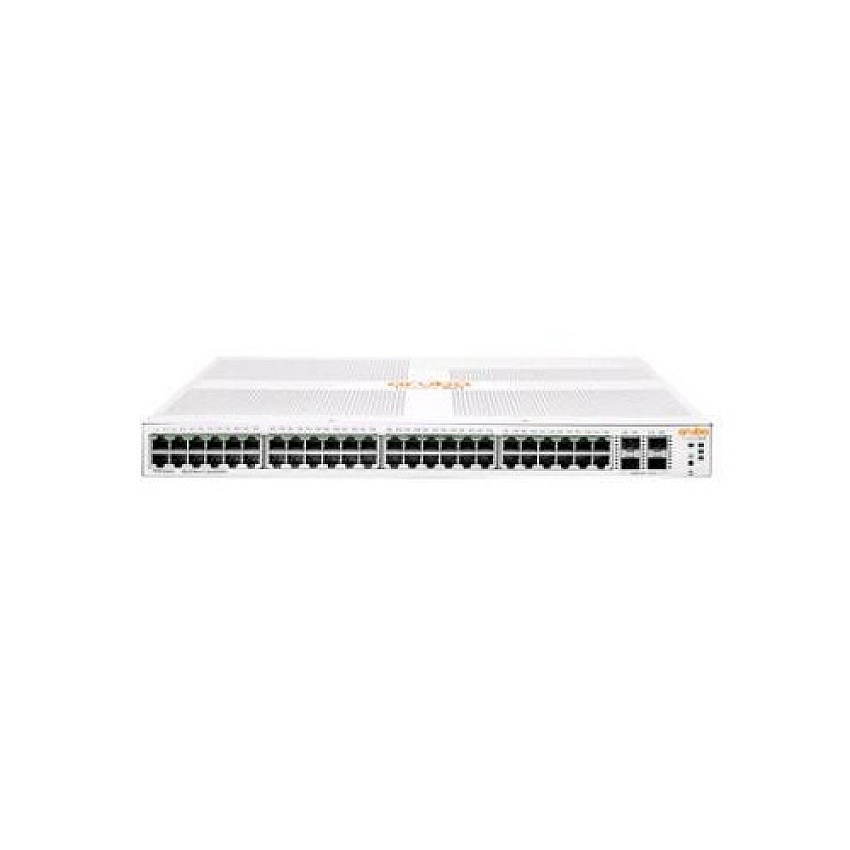

HPE Networking Instant On 1930 48G 4SFP+ Switch US
-
In Stock
Product Description
HPE Networking Instant On 1930 48G 4SFP+ Switch US
Product Specs
Manufacturer
HPManufacturer Stock No.
JL685A#ABAMPN
HPEJL685AABAModel#
JL685A#ABAUPC Code
190017356105UNSPSC Code
0Information
Product Description: HPE Networking Instant On 1930 48G 4SFP/SFP+ Switch - switch - 48 ports - managed - rack-mountableDevice Type: Switch - 48 ports - L2+ - managed
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
Performance: Throughput: 130.95 Mpps ¦ Switching capacity: 176 Gbps ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.2 µs
Capacity: Routing table entries (static): 32
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: IGMPv2, IGMP, static IPv4 routing, MSTP, RSTP, STP
Remote Management Protocol: SNMP, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, DHCP, IPv4, IPv6
Features: Flow control, DHCP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, manageable, IPv6 support, half duplex mode, full duplex mode, STP support, RSTP support, MSTP support, ACL support, QoS, Jumbo Frames support, TPM, IPv4 support, LACP support, LLDP support, LACP, CoS, SNMP support, 1.5MB packet buffer, BPDU, LLDP-MED, EEE
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 11.1 in x 1.7 in
Weight: 6.9 lbs
Localization: English / United States
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 48 ports - L2+ - managed
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
Performance: Throughput: 130.95 Mpps ¦ Switching capacity: 176 Gbps ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.2 µs
Capacity: Routing table entries (static): 32
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: IGMPv2, IGMP, static IPv4 routing, MSTP, RSTP, STP
Remote Management Protocol: SNMP, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, DHCP, IPv4, IPv6
Encryption Algorithm: SSL
Authentication Method: RADIUS
Features: Flow control, DHCP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, manageable, IPv6 support, half duplex mode, full duplex mode, STP support, RSTP support, MSTP support, ACL support, QoS, Jumbo Frames support, TPM, IPv4 support, LACP support, LLDP support, LACP, CoS, SNMP support, 1.5MB packet buffer, BPDU, LLDP-MED, EEE
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor: 1 x ARM Cortex-A9: 800 MHz
RAM: 512 MB
Flash Memory: 256 MB
Interfaces: 48 x 1000Base-T RJ-45 ¦ 4 x Gigabit / 10Gbit LAN SFP+
Power Device: Internal power supply
Voltage Required: AC 120/230 V (50/60 Hz)
MTBF: 114 years
Compliant Standards: VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CNS 13438, EN 55024: 2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, IEC 62368-1, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1: 2014, CAN/CSA-C22.2 No. 60950-1, CISPR 35, EN 55035: 2017, EN 55032: 2015+AC: 2016 Class A
Localization: English / United States
Width: 17.4 in
Depth: 11.1 in
Height: 1.7 in
Weight: 6.9 lbs
Service & Support: Limited warranty - lifetime ¦ Technical support - phone consulting - 90 days
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (non-condensing)
COO: Inquire
TAA compliance: Inquire
