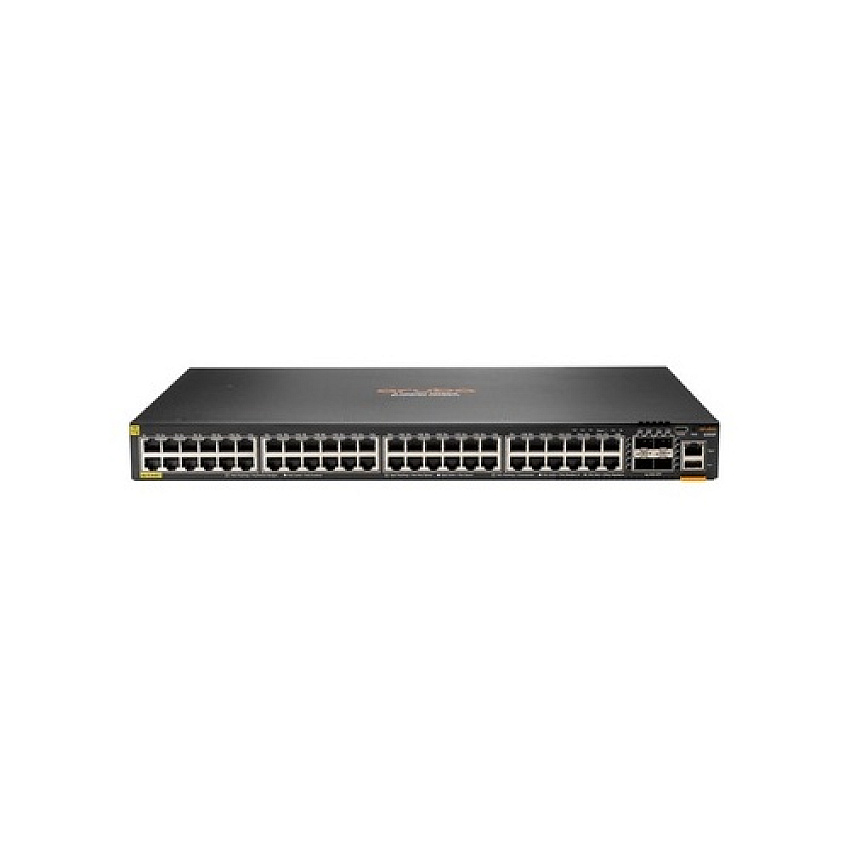

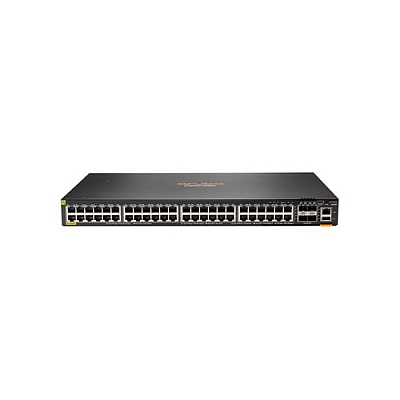

HP Aruba 6300f 48g Cl4 Poe 4sfp56 Sw (JL665A#ABA)
Model: JL665A#ABA
HP Aruba 6300f 48g Cl4 Poe 4sfp56 Sw (JL665A#ABA)
Model: JL665A#ABA
-
ARUBA 6300F 48G CL4 POE 4SFP56 SW
-
Out Of Stock
Product Description
Aruba CX 6300 Switch Series - Quad Core ARM Cortex A72 1.8GHz - 8 GB DDR4 32 GB eMMC 8 MB Shared Packet Buffer Memory - (48) 10/100/1000 BASE-T PoE+ ports supporting up to 30W per port, (4) 1/10/25/50G SFP ports - 1Gbps: 2.28Sec, 10Gbps: 1.46Sec, 25Gbps:
Product Specs
Manufacturer
HPManufacturer Stock No.
JL665A#ABAMPN
HPEJL665AABAModel#
JL665A#ABAUPC Code
190017340296UNSPSC Code
0Information
Product Description: HPE Aruba 6300F - switch - 48 ports - managed - rack-mountable - TAA CompliantDevice Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56
Power Over Ethernet (PoE): PoE+
Performance: Switching capacity: 496 Gbps ¦ Switching throughput: 369 Mpps ¦ 1 Gbps average latency (64-byte packets): 2.28 µs ¦ 10 Gbps average latency (64-byte packets): 1.46 µs ¦ 25 Gbps average latency (64-byte packets): 1.9 µs ¦ 50 Gbps average latency (64-byte packets): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
Capacity: Switched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, BGP-4, BGP, IGMP, OSPFv2, PIM-DM, IGMPv3, MSDP, MLDv2, MLD, CIDR
Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, XRMON, SFTP
Features: DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, port mirroring, DiffServ support, IPv6 support, sFlow, VRRP support, MSTP support, QoS, MLD snooping, TPM, UDLD, DWRR, LLDP support, fan tray, SNMP trap, MIB, VRF, MVRP, NDP, CoS, SP, tagged VLAN, 8MB packet buffer, 802.1x authentication, ToS, BPDU, ICMP Router Discovery Protocol (IRDP), VXLAN, Link Aggregation, EVPN, NTP, LLDP-MED, DoS protection, RSTP, CDP, BSR Mechanism
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, ITU-T G.8032, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.3cc, ITU-T Y.1344, IEEE 802.3cd
Power: AC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH): 17.4 in x 12.9 in x 1.7 in
Weight: 11.24 lbs
Localization: English / United States
TAA Compliant: Yes
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 48 ports - L3 - managed - stackable
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 (PoE+) + 4 x 50 Gigabit Ethernet SFP56
Power Over Ethernet (PoE): PoE+
Performance: Switching capacity: 496 Gbps ¦ Switching throughput: 369 Mpps ¦ 1 Gbps average latency (64-byte packets): 2.28 µs ¦ 10 Gbps average latency (64-byte packets): 1.46 µs ¦ 25 Gbps average latency (64-byte packets): 1.9 µs ¦ 50 Gbps average latency (64-byte packets): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
Capacity: Switched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, BGP-4, BGP, IGMP, OSPFv2, PIM-DM, IGMPv3, MSDP, MLDv2, MLD, CIDR
Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, XRMON, SFTP
Encryption Algorithm: SSL, FIPS 140-2
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+
Features: DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, port mirroring, DiffServ support, IPv6 support, sFlow, VRRP support, MSTP support, QoS, MLD snooping, TPM, UDLD, DWRR, LLDP support, fan tray, SNMP trap, MIB, VRF, MVRP, NDP, CoS, SP, tagged VLAN, 8MB packet buffer, 802.1x authentication, ToS, BPDU, ICMP Router Discovery Protocol (IRDP), VXLAN, Link Aggregation, EVPN, NTP, LLDP-MED, DoS protection, RSTP, CDP, BSR Mechanism
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, ITU-T G.8032, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.3cc, ITU-T Y.1344, IEEE 802.3cd
Processor: 1 x ARM Cortex-A72: 1.8 GHz
RAM: 8 GB DDR4 SDRAM
Flash Memory: 32 GB
Interfaces: 48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 50Gbit LAN SFP56 ¦ 1 x console (USB) Type C ¦ 1 x USB Type A
Power Device: Internal power supply
Installed Qty: 1
Power Provided: 900 Watt
Voltage Required: AC 120/230 V (50 - 60 Hz)
Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, WEEE, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, IEC 60950-1: 2005, EN 61000-3-3: 2013, CISPR 24: 2010, EN 55024: 2010, EN 55022: 2010, EN 61000-3-2: 2014, EN 60825-1: 2007, IEC 60825-1: 2007 Class 1, EN 55032: 2012 Class A, CISPR 32 Class A, CISPR 35, EN 55024: 2010 Class A, EN 60950-1: 2006+A1: 2010+A11: 2009+A2: 2013+A12: 2011, EN 55035: 2017
TAA Compliant: Yes
Localization: English / United States
Width: 17.4 in
Depth: 12.9 in
Height: 1.7 in
Weight: 11.24 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (non-condensing)
COO: SINGAPORE
TAA compliance: Yes
Unit of Measure
Item Weight
16.1Ships via UPS
YBrand
HP
$14,688.89
$16,915.00
$41,303.44
$47,563.00
$7,112.98
$8,535.58
