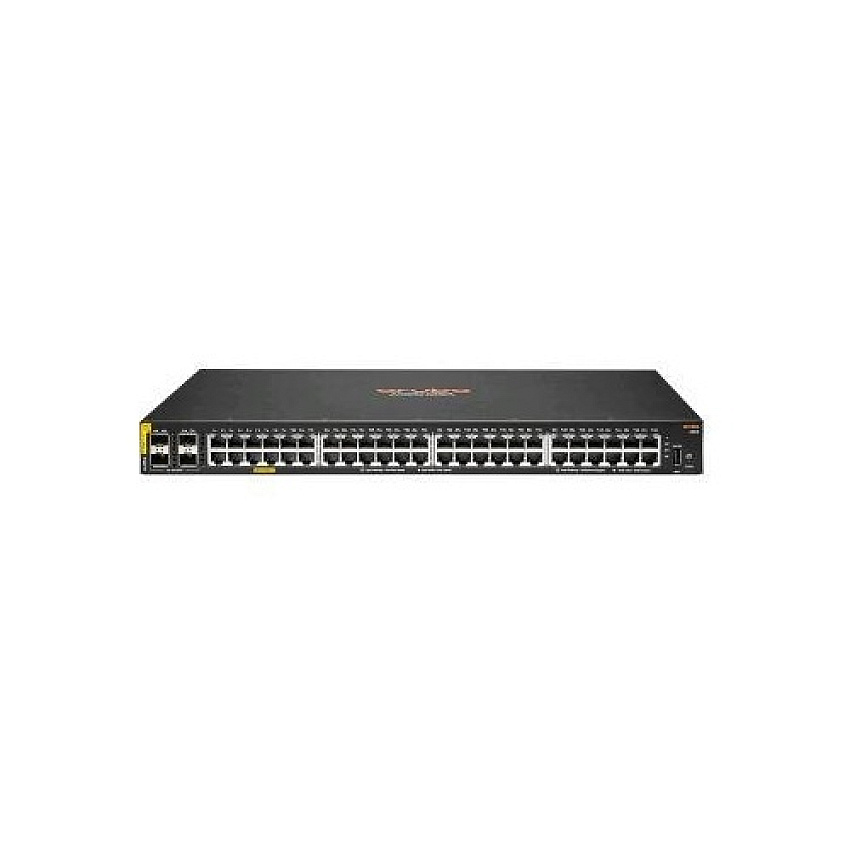

HP Aruba 6100 48g Cl4 4sfp+ Swch L6-20 220v (JL675A#B2E)
Model: JL675A#B2E
HP Aruba 6100 48g Cl4 4sfp+ Swch L6-20 220v (JL675A#B2E)
Model: JL675A#B2E
-
ARUBA 6100 48G CL4 4SFP+ SWCH L6-20 220V
-
Special order arrives within 3-7 weeks.
Product Description
HPE Aruba Networking CX 6100 Switch Series - 48x ports 10/100/1000BASE-T ports 4x 1G/10G SFP ports - 1 Gbps: 1.9 Sec , 10 Gbps: 1.8 Sec - 100-127 VAC / 200-240 VAC - Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W - Limited Lifetime Warranty
Product Specs
Manufacturer
HPManufacturer Stock No.
JL675A#B2EMPN
HPEJL675AB2EModel#
JL675A#B2EUNSPSC Code
0Information
Product Description: HPE Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch - switch - 52 ports - managed - rack-mountableDevice Type: Switch - 52 ports - managed
Enclosure Type: Side to side airflow rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
PoE Budget: 370 W
Performance: Switching capacity: 176 Gbps ¦ Throughput: 98.6 µs ¦ Latency (1 Gbps): 1.9 µs ¦ Latency (10 Gbps): 1.8 µs
Capacity: Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256
MAC Address Table Size: 8192 entries
Routing Protocol: IGMPv2, IGMPv3
Features: Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
Compliant Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Power: AC 220 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 12 in x 1.7 in
Weight: 11.07 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 52 ports - managed
Enclosure Type: Side to side airflow rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE): PoE+
PoE Budget: 370 W
Performance: Switching capacity: 176 Gbps ¦ Throughput: 98.6 µs ¦ Latency (1 Gbps): 1.9 µs ¦ Latency (10 Gbps): 1.8 µs
Capacity: Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256
MAC Address Table Size: 8192 entries
Routing Protocol: IGMPv2, IGMPv3
Encryption Algorithm: SSL
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features: Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
Compliant Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Processor: 1 x ARM A9: 1.016 GHz
RAM: 4 GB DDR3 SDRAM
Flash Memory: 16 GB
Interfaces: 48 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A
Power Device: Internal power supply
Power Provided: 500 Watt 2.4 A
Voltage Required: AC 220 V (50/60 Hz)
Power Consumption Operational: 30.6 Watt
Compliant Standards: FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1: 2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1: 2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792
Width: 17.4 in
Depth: 12 in
Height: 1.7 in
Weight: 11.07 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Humidity Range Storage: 15 - 90% (non-condensing)
COO: CHINA / TAIWAN
