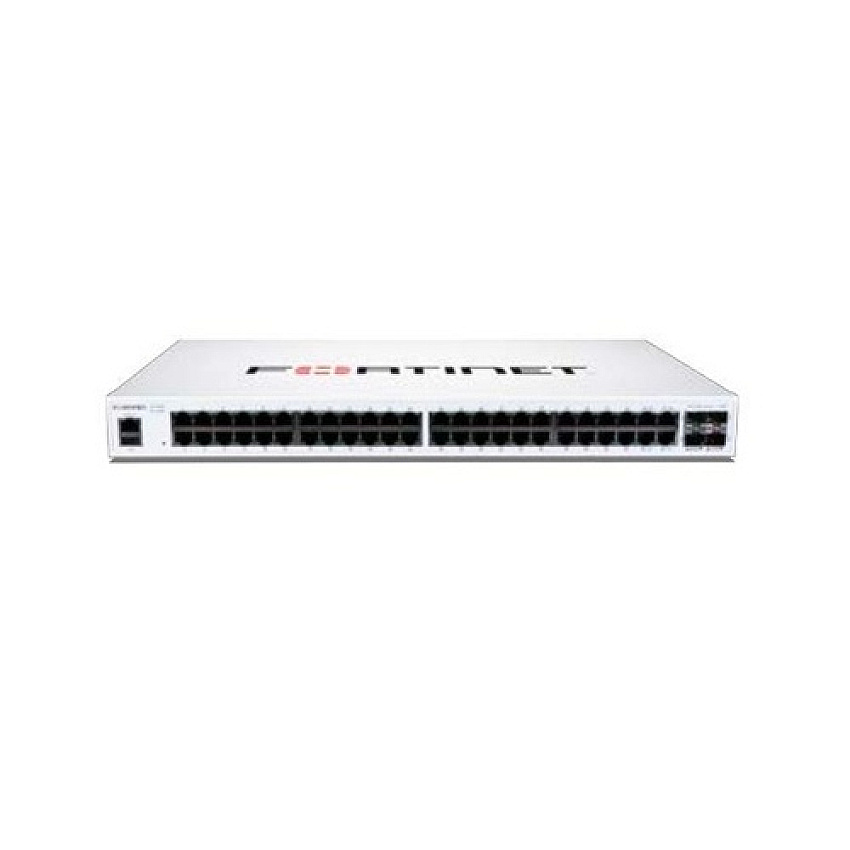

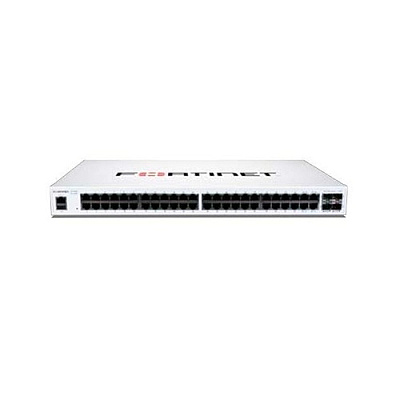

Fortinet Hw Fs-148f (FS148F)
Model: FS148F
Fortinet Hw Fs-148f (FS148F)
Model: FS148F
Product Description
Switch - FortiSwitch 148F - 1RU - Wired - 10Gbps - Networking / Ports Qty: 54 - Gigabit Ethernet - None Processor - 512MB RAM - 64MB Flash Memory - 100-240V AC - OSPFv2, RIPv2, VRRP, BGP, ISIS - RJ45;10GE SFP+;RJ-45 Serial Console - Limited lifetime
Product Specs
Manufacturer
FortinetCategories
Fortinet Computer AccessoriesFortinet Networking, Cables & AccessoriesFortinet Network SwitchesManufacturer Stock No.
FS-148FMPN
FTNFS148FModel#
FS148FUPC Code
842382190050UNSPSC Code
0Information
Product Description: Fortinet FortiSwitch 148F - switch - 48 ports - managed - rack-mountableDevice Type: Switch - 48 ports - managed
Enclosure Type: Side to back airflow rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance: Switching capacity: 176 Gbps ¦ Packets per second: 260 Mbps ¦ Latency: < 1 µs
Capacity: VLANs supported: 4000 ¦ Link aggregation groups: 8 ¦ Total link aggregation groups: 128 ¦ Buffer capacity (MB): 2
MAC Address Table Size: 32K entries
Jumbo Frame Support: Yes
Routing Protocol: IGMP, policy-based routing (PBR), MSTP, RSTP, STP
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, RSTP, RADIUS
Features: Flow control, firewall protection, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, SNTP support, DHCP snooping, STP Root Guard, LACP support, LLDP support, 802.1x authentication, Storm Control, Link Aggregation, Management Information Base (MIB) II, Application Visibility and Control (AVC), LLDP-MED, VLAN Tagging, IP forwarding support, MAC Access Bypass (MAB), BPDU Guard, Link Aggregation Group (LAG)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX
Power: AC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH): 17.3 in x 10.2 in x 1.7 in
Weight: 7.63 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 48 ports - managed
Enclosure Type: Side to back airflow rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance: Switching capacity: 176 Gbps ¦ Packets per second: 260 Mbps ¦ Latency: < 1 µs
Capacity: VLANs supported: 4000 ¦ Link aggregation groups: 8 ¦ Total link aggregation groups: 128 ¦ Buffer capacity (MB): 2
MAC Address Table Size: 32K entries
Jumbo Frame Support: Yes
Routing Protocol: IGMP, policy-based routing (PBR), MSTP, RSTP, STP
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, RSTP, RADIUS
Authentication Method: Secure Shell (SSH), RADIUS
Features: Flow control, firewall protection, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, SNTP support, DHCP snooping, STP Root Guard, LACP support, LLDP support, 802.1x authentication, Storm Control, Link Aggregation, Management Information Base (MIB) II, Application Visibility and Control (AVC), LLDP-MED, VLAN Tagging, IP forwarding support, MAC Access Bypass (MAB), BPDU Guard, Link Aggregation Group (LAG)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX
RAM: 512 MB DDR3 SDRAM
Flash Memory: 64 MB
Status Indicators: Status
Interfaces: 48 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x serial (console) RJ-45
Power Device: Internal power supply
Voltage Required: AC 120/230 V (50 - 60 Hz)
Power Consumption Operational: 55.8 Watt
MTBF: 10 years
Compliant Standards: UL, VCCI, BSMI, CB, FCC, RoHS2, RCM
Width: 17.3 in
Depth: 10.2 in
Height: 1.7 in
Weight: 7.63 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Min Storage Temperature: -4 °F
Max Storage Temperature: 158 °F
COO: TAIWAN
TAA compliance: Yes
Unit of Measure
Item Weight
10.05Ships via UPS
YBrand
Fortinet
