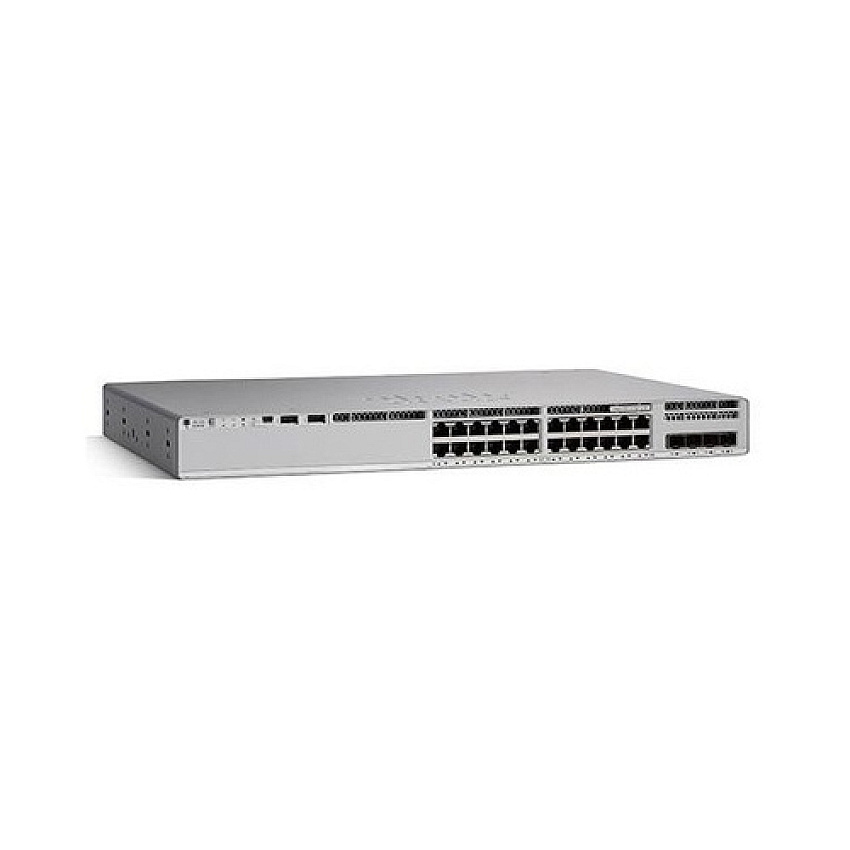

Cisco Taa C9200 24p Data Only, 4 X 1g, Network (C9200L24T4GA++)
Model: C9200L24T4GA++
Cisco Taa C9200 24p Data Only, 4 X 1g, Network (C9200L24T4GA++)
Model: C9200L24T4GA++
-
TAA C9200 24P DATA ONLY, 4 X 1G, NETWORK
-
Special order arrives within 3-7 weeks.
Product Description
TAA C9200 24P DATA ONLY, 4 X 1G, NETWORK ADVANTAGE
Product Specs
Manufacturer
CiscoManufacturer Stock No.
C9200L-24T-4G-A++MPN
CSCC9200L24T4GA++Model#
C9200L24T4GA++UPC Code
889728173513UNSPSC Code
0Information
Product Description: Cisco Catalyst 9200L - Network Advantage - switch - 24 ports - rack-mountable - TAA CompliantDevice Type: Switch - 24 ports - L3 - stackable
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance: Stacking bandwidth: 80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps
Capacity: Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features: Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power: AC 100-240 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 1.7 in x 11.3 in
Weight: 9.59 lbs
TAA Compliant: Yes
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 24 ports - L3 - stackable
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance: Stacking bandwidth: 80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps
Capacity: Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features: Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM: 2 GB
Flash Memory: 4 GB
Interfaces: 24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
Power Device: Internal power supply - hot-plug
Max Supported Qty: 2
Power Redundancy: Optional
Voltage Required: AC 100-240 V (50 - 60 Hz)
MTBF: 531,030 hours
Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
TAA Compliant: Yes
Width: 17.5 in
Depth: 1.7 in
Height: 11.3 in
Weight: 9.59 lbs
Service & Support: Limited warranty - advance parts replacement - lifetime - response time: next business day
Humidity Range Operating: 5 - 90% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 90% (non-condensing)
COO: MEXICO
TAA compliance: Yes
Unit of Measure
Item Weight
15.5Ships via UPS
YBrand
Cisco
$3,733.64
$4,937.03
$15,169.54
$20,058.90
$3,541.96
$4,683.58
$28,119.15
$37,182.34
$65,242.36
$86,270.90
