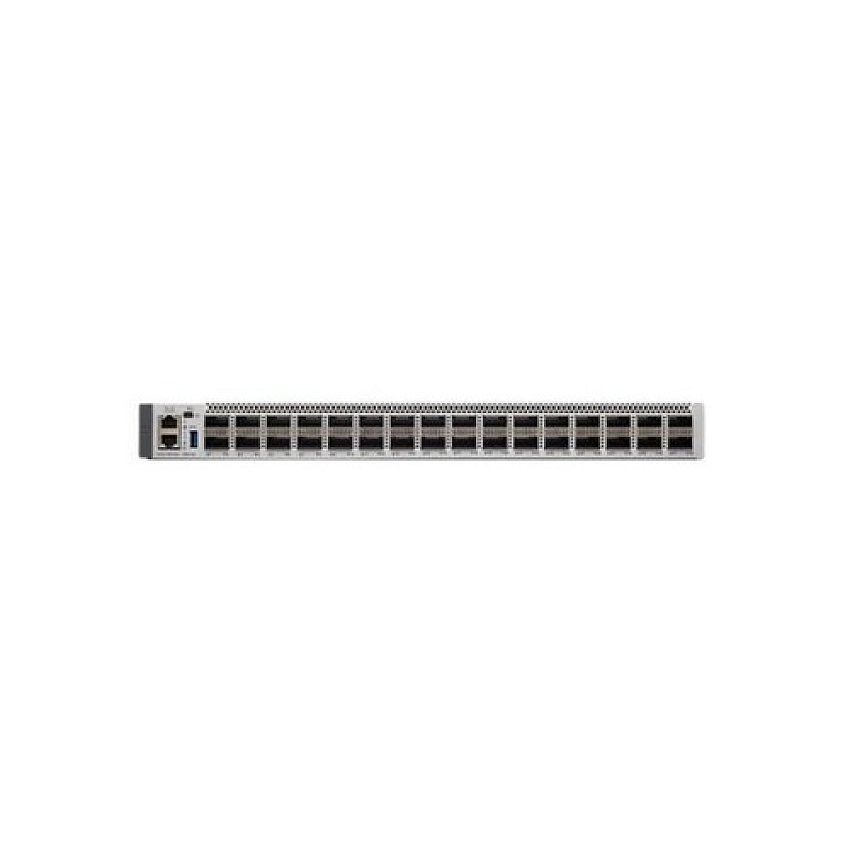

Cisco Catalyst 9500 32x100g, K12 (C950032CEDU)
Model: C950032CEDU
Cisco Catalyst 9500 32x100g, K12 (C950032CEDU)
Model: C950032CEDU
-
Catalyst 9500 32x100G, K12
-
Special order arrives within 3-7 weeks.
Product Description
Catalyst 9500 32x100G, K12
Product Specs
Manufacturer
CiscoManufacturer Stock No.
C9500-32C-EDUMPN
CSCC950032CEDUModel#
C950032CEDUUNSPSC Code
0Information
Product Description: Cisco Catalyst 9500 - switch - 32 ports - managed - rack-mountableDevice Type: Switch - 32 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+
Performance: Switching capacity: 6.4 Tbps ¦ Forwarding rate: 2 Bpps
Capacity: Direct IPv4 routes: 212000 ¦ Indirect IPv4 routes: 212000 ¦ ARP entries: 90000 ¦ Indirect IPv6 routes: 212000 ¦ Direct IPv6 routes: 212000 ¦ IPv4 routes (Multicast): 32000 ¦ IPv6 routes (Multicast): 32000 ¦ ACL scale entries: 16000 ¦ Security ACL scale: 27000 ¦ FNF entries: 98000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size: 82K entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features: DHCP support, NAT support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), 802.1x authentication, integrated Wireshark, Ethernet over MPLS (EoMPLS), Private VLAN, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), First Hop Security (FHS)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Power: AC 120/230 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 21.2 in x 1.7 in
Weight: 25.64 lbs
Pricing Type: K-12 education
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 32 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+
Performance: Switching capacity: 6.4 Tbps ¦ Forwarding rate: 2 Bpps
Capacity: Direct IPv4 routes: 212000 ¦ Indirect IPv4 routes: 212000 ¦ ARP entries: 90000 ¦ Indirect IPv6 routes: 212000 ¦ Direct IPv6 routes: 212000 ¦ IPv4 routes (Multicast): 32000 ¦ IPv6 routes (Multicast): 32000 ¦ ACL scale entries: 16000 ¦ Security ACL scale: 27000 ¦ FNF entries: 98000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size: 82K entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm: 256-bit AES
Features: DHCP support, NAT support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), 802.1x authentication, integrated Wireshark, Ethernet over MPLS (EoMPLS), Private VLAN, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), First Hop Security (FHS)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Processor: 1: 2.4 GHz
RAM: 16 GB
Flash Memory: 16 GB
Built-in Devices: RFID tag
Status Indicators: Status
Interfaces: 32 x 100Gbit/40Gbit LAN QSFP28/QSFP+ ¦ 2 x USB 3.0
Power Device: Internal power supply - hot-plug
Installed Qty: 1
Max Supported Qty: 2
Power Redundancy: Optional
Power Redundancy Scheme: 1+1
Power Provided: 1600 Watt
Voltage Required: AC 120/230 V (50 - 60 Hz)
MTBF: 212,820 hours
Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
Pricing Type: K-12 education
Width: 17.5 in
Depth: 21.2 in
Height: 1.7 in
Weight: 25.64 lbs
Service & Support: Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 90% (non-condensing)
Min Storage Temperature: -4 °F
Max Storage Temperature: 149 °F
Humidity Range Storage: 5 - 95% (non-condensing)
COO: MEXICO
TAA compliance: Yes
Unit of Measure
Item Weight
30.34Ships via UPS
NBrand
Cisco
$3,733.64
$4,937.03
$1,886.95
$2,495.13
$26,288.65
$34,761.84
$3,541.96
$4,683.58
$17,019.49
$22,505.10
$1,886.95
$2,495.13
$27,357.54
$36,175.25
