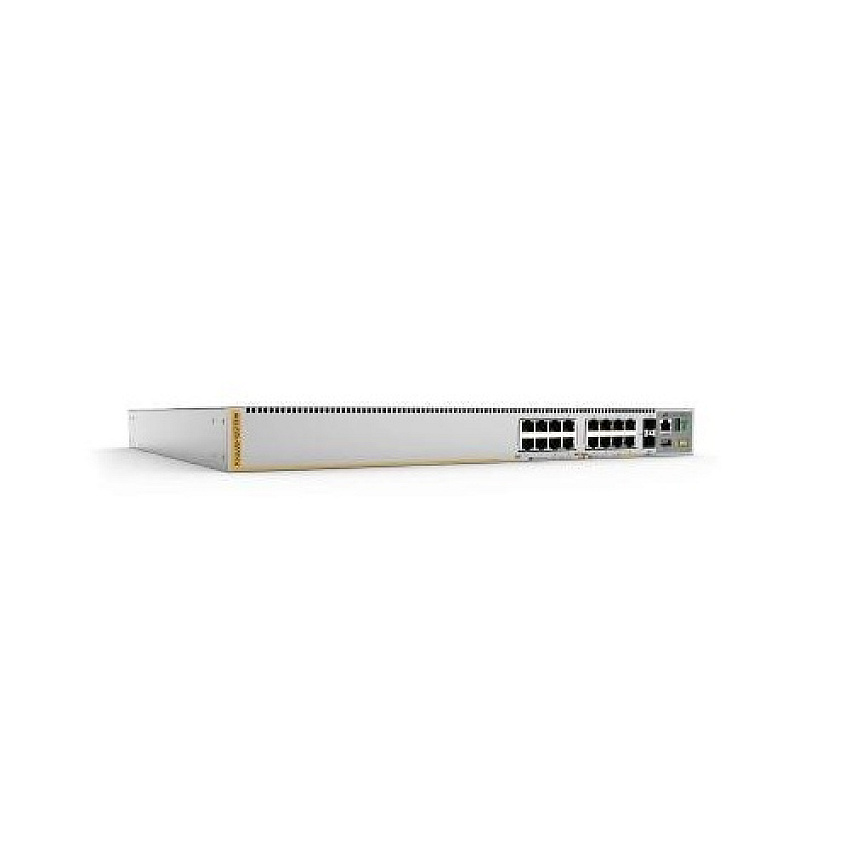

Allied Telesis L3 Switch 16 100m-5gt Poe++ 2sfp+ Ports (ATX53018GHXM10)
Model: ATX53018GHXM10
Allied Telesis L3 Switch 16 100m-5gt Poe++ 2sfp+ Ports (ATX53018GHXM10)
Model: ATX53018GHXM10
-
L3 SWITCH 16 100M-5GT POE++ 2SFP+ PORTS
-
Special order arrives within 3-7 weeks.
Product Description
L3 Stackable Switch, 16x 100M/1/2.5/5G-T PoE++, 2x SFP+ ports and dual fixed PSU
Product Specs
Manufacturer
Allied TelesisCategories
Allied Telesis Computer AccessoriesAllied Telesis Networking, Cables & AccessoriesAllied Telesis Network SwitchesManufacturer Stock No.
AT-X530-18GHXM-10MPN
ATSATX53018GHXM10Model#
ATX53018GHXM10UPC Code
767035222301UNSPSC Code
0Information
Product Description: Allied Telesis AT x530-18GHXm - switch - 16 ports - managed - rack-mountableDevice Type: Switch - 16 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 5 Gigabit Ethernet
Ports: 16 x 100/1000/2.5G/5G (PoE++) + 2 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Power Over Ethernet (PoE): PoE++
PoE Budget: 1000 W
Performance: Switching capacity: 200 Gbps ¦ Forwarding performance: 148.8 Mpps ¦ Latency (100 Mbps): 11.61 µs ¦ Latency (1 Gbps): 5.29 µs ¦ Latency (2.5 Gbps): 7.61 µs ¦ Latency (5 Gbps): 5.61 µs ¦ Latency (10 Gbps): 2.05 µs
Capacity: Virtual interfaces (VLANs): 4094 ¦ Link aggregation groups: up to 128 ¦ Packet buffer size: 1.5 MB ¦ Priority queues: 8
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9KB
Routing Protocol: OSPF, RIP, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, MSDP, ECMP, RIPng, MLDv2, MLD, VRRPv3, CIDR, MSTP, RSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SLP, SCP, SNMP 6, SSH 6, SFTP, SMTP, NTP, ICMP, DHCP, RSTP, Syslog
Features: DHCP support, BOOTP support, ARP support, OCSP support, Syslog support, DoS attack prevention, DiffServ support, SNTP support, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), DNS relay, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Ethernet Ring Protection Switching (ERPS), MLD proxy, IP source guard, Ethernet Protection Switched Ring (EPSRing), Virtual Chassis Stacking (VCStack), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), black hole routing, Control Plane Prioritization (CPP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Cable fault locator (TDR), Digital Diagnostics Monitoring (DDM), Authentication, Authorization and Accounting (AAA), Loop Guard, VLAN mirroring, DNS client, NTP client, Connectivity Fault Management (CFM), LLDP-MED, storm protection, User Datagram Protocol (UDP), proxy ARP, Energy-Efficient Ethernet (EEE), View-based Access Control Model (VACM), router advertisement guard, Point-to-Point Protocol (PPP), eco-friendly button
Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032
Power: AC 100-240 V (50/60 Hz)
Dimensions (WxDxH): 17.4 in x 16.6 in x 1.7 in
Weight: 14.77 lbs
Localization: United States
Manufacturer Warranty: 5-year warranty
Device Type: Switch - 16 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 5 Gigabit Ethernet
Ports: 16 x 100/1000/2.5G/5G (PoE++) + 2 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Power Over Ethernet (PoE): PoE++
PoE Budget: 1000 W
Performance: Switching capacity: 200 Gbps ¦ Forwarding performance: 148.8 Mpps ¦ Latency (100 Mbps): 11.61 µs ¦ Latency (1 Gbps): 5.29 µs ¦ Latency (2.5 Gbps): 7.61 µs ¦ Latency (5 Gbps): 5.61 µs ¦ Latency (10 Gbps): 2.05 µs
Capacity: Virtual interfaces (VLANs): 4094 ¦ Link aggregation groups: up to 128 ¦ Packet buffer size: 1.5 MB ¦ Priority queues: 8
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9KB
Max Units In A Stack: 8
Routing Protocol: OSPF, RIP, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, MSDP, ECMP, RIPng, MLDv2, MLD, VRRPv3, CIDR, MSTP, RSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SLP, SCP, SNMP 6, SSH 6, SFTP, SMTP, NTP, ICMP, DHCP, RSTP, Syslog
Encryption Algorithm: DES, Triple DES, RSA, MD5, AES, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, PKI, 128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, TLS 1.2, RNG, 224-bit SHA-2, CRL, CCM, CMAC, GCM, XTS, DRBG, FIPS 180-1, FIPS 186, FIPS 46-3, HMAC
Authentication Method: Secure Shell (SSH), RADIUS, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features: DHCP support, BOOTP support, ARP support, OCSP support, Syslog support, DoS attack prevention, DiffServ support, SNTP support, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), DNS relay, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Ethernet Ring Protection Switching (ERPS), MLD proxy, IP source guard, Ethernet Protection Switched Ring (EPSRing), Virtual Chassis Stacking (VCStack), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), black hole routing, Control Plane Prioritization (CPP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Cable fault locator (TDR), Digital Diagnostics Monitoring (DDM), Authentication, Authorization and Accounting (AAA), Loop Guard, VLAN mirroring, DNS client, NTP client, Connectivity Fault Management (CFM), LLDP-MED, storm protection, User Datagram Protocol (UDP), proxy ARP, Energy-Efficient Ethernet (EEE), View-based Access Control Model (VACM), router advertisement guard, Point-to-Point Protocol (PPP), eco-friendly button
Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032
RAM: 1 GB DDR3 SDRAM
Flash Memory: 256 MB
Status Indicators: Port status, collision status, link/activity, switch ID
Interfaces: 16 x 100/1000/2.5G/5G RJ-45 PoE++ - 90 W ¦ 2 x 1/10Gbit LAN SFP+ ¦ 1 x console RJ-45 ¦ 2 x network stack device ¦ Console ¦ USB
Power Device: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: AC 100-240 V (50/60 Hz)
Power Consumption Operational: 130 Watt
Included Accessories: Accessory kit
Rack Mounting Kit: Included
Compliant Standards: FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55032 Class A, EU RoHS
Localization: United States
Width: 17.4 in
Depth: 16.6 in
Height: 1.7 in
Weight: 14.77 lbs
Shipping Width: 21.9 in
Shipping Depth: 21.6 in
Shipping Height: 6 in
Shipping Weight: 19.62 lbs
Service & Support: Limited warranty - 5 years
Min Operating Temperature: 32 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 5 - 90% (non-condensing)
Min Storage Temperature: -13 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 95% (non-condensing)
COO: Inquire
TAA compliance: Inquire
