Allied Telesis 8-port 1gb Poe++, 2-port 100/1000x Sfp, (ATGS980EM/10H)
Model: ATGS980EM/10H
Allied Telesis 8-port 1gb Poe++, 2-port 100/1000x Sfp, (ATGS980EM/10H)
Model: ATGS980EM/10H
-
8-PORT 1GB POE++, 2-PORT 100/1000X SFP,
-
Out Of Stock
Product Description
L3 Gigabit Switch, 8-port 10/100/1000T PoE++, 2-port 100/1000X SFP, 3-port DC-Input, One designated PWR300 requires at least (as supports up to 3)
Product Specs
Manufacturer
Allied TelesisCategories
Allied Telesis Computer AccessoriesAllied Telesis Networking, Cables & AccessoriesAllied Telesis Network SwitchesManufacturer Stock No.
AT-GS980EM/10HMPN
ATSATGS980EM10HModel#
ATGS980EM/10HUPC Code
767035217796UNSPSC Code
0Information

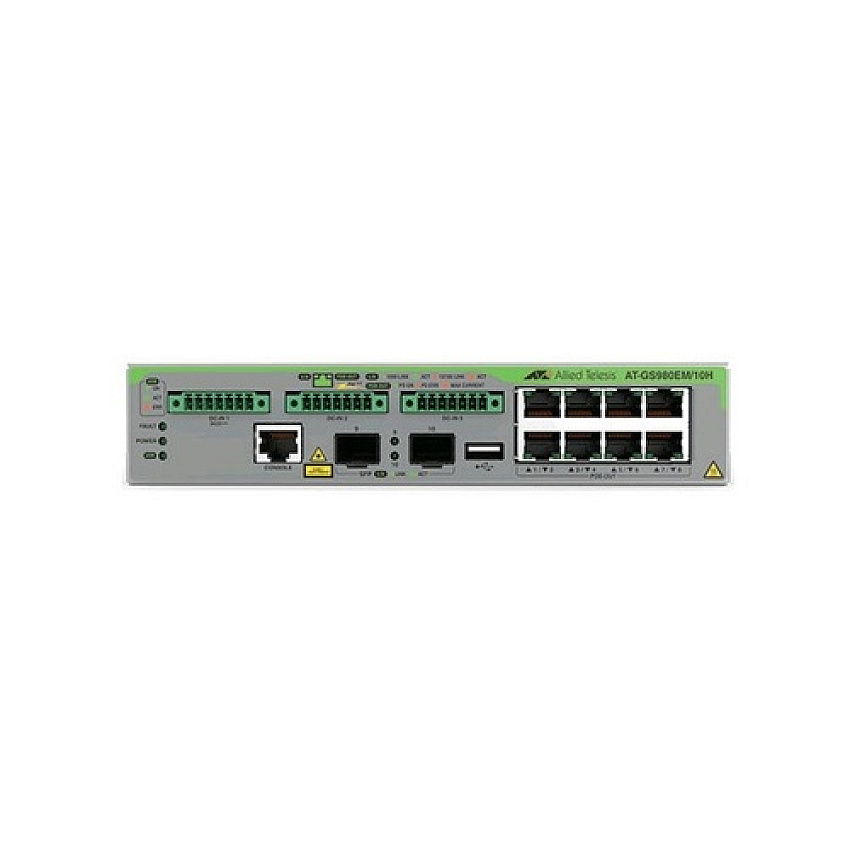

Product Description: Allied Telesis CentreCOM GS980EM/10H - switch - 10 ports - managed - rack-mountableDevice Type: Switch - 10 ports - L3 - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 (PoE++) + 2 x Gigabit SFP
Power Over Ethernet (PoE): PoE++
Performance: Switching capacity: 24 Gbps ¦ Forwarding performance: 14.9 Mpps ¦ Latency (100 Mbps): 5.4 µs ¦ Latency (1 Gbps): 3 µs
Capacity: Multicast groups: 2000 ¦ Virtual interfaces (VLANs): 4094
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10KB
Routing Protocol: RIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP
Features: Flow control, ARP support, OCSP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, MAC address filtering, SNTP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, PVST+, STP Root Guard, RSPAN, SNMP trap, DHCP client, MIB, MAC address lockout, GVRP, NAC, loop prevention, port isolation, SP, 802.1x authentication, VoIP support, 1.5MB packet buffer, IP source guard, EPSRing, Logical Link Control, ICMP, CPP, SCP, AMF, BIST, DDM, MAC address authentication, NTP, Active Fiber Monitoring, AAA, IGMP querier, VLAN mirroring, Voice VLAN, LLDP-MED, Private VLAN, storm protection, Guest VLAN, WRR, loopback detection, VLAN Tagging, BPDU Guard
Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.2x
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 8.3 in x 7.1 in x 1.7 in
Weight: 3.53 lbs
Device Type: Switch - 10 ports - L3 - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 (PoE++) + 2 x Gigabit SFP
Power Over Ethernet (PoE): PoE++
Performance: Switching capacity: 24 Gbps ¦ Forwarding performance: 14.9 Mpps ¦ Latency (100 Mbps): 5.4 µs ¦ Latency (1 Gbps): 3 µs
Capacity: Multicast groups: 2000 ¦ Virtual interfaces (VLANs): 4094
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10KB
Routing Protocol: RIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP
Encryption Algorithm: DES, Triple DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, AES-ECB, PKI, 128-bit AES, 192-bit AES, 256-bit AES, AES-CBC, SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, TLS 1.2, AES-CFB, AES-OFB, RNG, 224-bit SHA-2, CCM, CMAC, GCM, XTS, DRBG
Authentication Method: RADIUS, X.509 certificates, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features: Flow control, ARP support, OCSP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, MAC address filtering, SNTP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, PVST+, STP Root Guard, RSPAN, SNMP trap, DHCP client, MIB, MAC address lockout, GVRP, NAC, loop prevention, port isolation, SP, 802.1x authentication, VoIP support, 1.5MB packet buffer, IP source guard, EPSRing, Logical Link Control, ICMP, CPP, SCP, AMF, BIST, DDM, MAC address authentication, NTP, Active Fiber Monitoring, AAA, IGMP querier, VLAN mirroring, Voice VLAN, LLDP-MED, Private VLAN, storm protection, Guest VLAN, WRR, loopback detection, VLAN Tagging, BPDU Guard
Compliant Standards: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.2x
RAM: 512 MB DDR3 SDRAM
Flash Memory: 128 MB
Interfaces: 8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP
Power Device: External power adapter
Max Supported Qty: 3
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 21 Watt
Rack Mounting Kit: Included
Compliant Standards: UL, cUL, EN 61000-3-2, EN55024, FCC, UL 60950-1, EN 60950-1, EN 60825-1, HMAC, AS/NZS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, SSL v3, EN 55022 Class A, CAN/CSA C22.2, EU RoHS
Software Included: Alliedware Plus
Width: 8.3 in
Depth: 7.1 in
Height: 1.7 in
Weight: 3.53 lbs
Shipping Width: 16.4 in
Shipping Depth: 13.2 in
Shipping Height: 5.9 in
Shipping Weight: 5.95 lbs
Min Operating Temperature: 32 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 5 - 90% (non-condensing)
Min Storage Temperature: -13 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 95% (non-condensing)
COO: CHINA
TAA compliance: No
