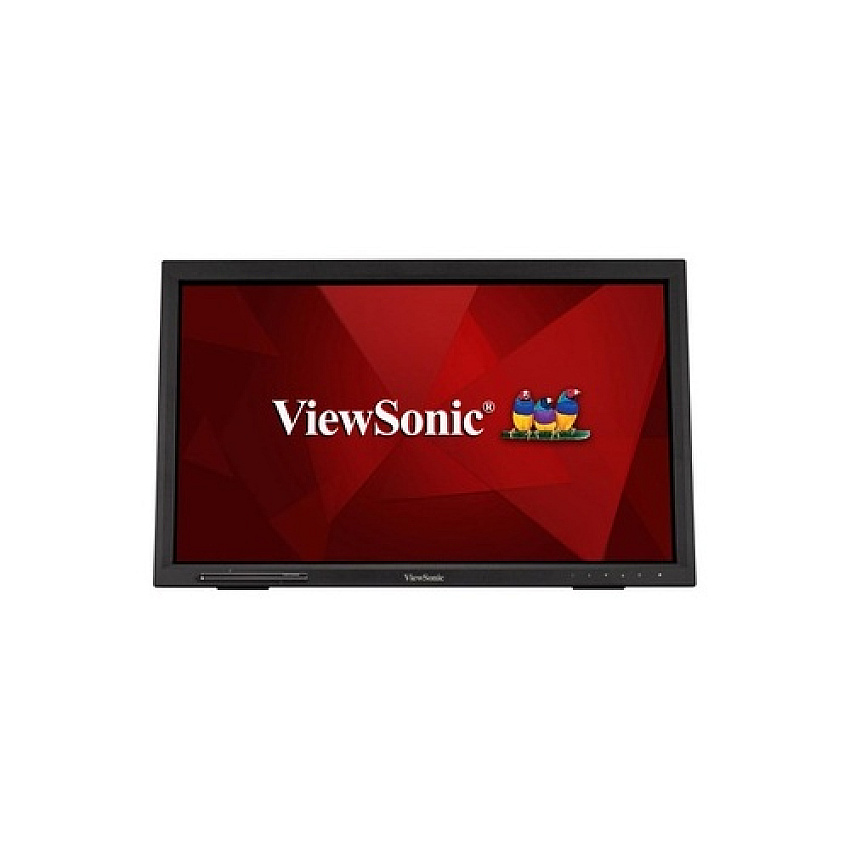

Viewsonic 22inch Ir 10-point Touch Display (TD2223)
Model: TD2223
Viewsonic 22inch Ir 10-point Touch Display (TD2223)
Model: TD2223
-
ViewSonic 22INCH IR 10-POINT TOUCH DISPLAY
-
Special order arrives within 3-7 weeks.
Product Description
ViewSonic 22inch IR 10-point Touch Display, 1920x1080 Full HD resolution.
Product Specs
Manufacturer
ViewsonicManufacturer Stock No.
TD2223MPN
VEWTD2223Model#
TD2223UPC Code
766907008647UNSPSC Code
0Information
Product Description: ViewSonic TD2223 - LED monitor - Full HD (1080p) - 22" - HDRDevice Type: LED-backlit LCD monitor - 22" - touchscreen
Features: Touchscreen, USB 2.0 hub
Panel Type: TN
Aspect Ratio: 16: 9
Native Resolution: Full HD (1080p) 1920 x 1080 at 75 Hz
Pixel Pitch: 0.2482 mm
Brightness: 250 cd/m²
Contrast Ratio: 1000: 1
HDR Capable: HDR10
Response Time: 5 ms (gray-to-gray)
Color Support: 16.7 million colors (8-bit)
Input Connectors: HDMI, DVI-D, VGA
Display Position Adjustments: Tilt
Screen Coating: Anti-glare, 7H Hard Coating, Haze 1%
Voltage: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) - with stand: 20.5 in x 4 in x 13.1 in
Weight: 9.92 lbs
Environmental Standards: ENERGY STAR Qualified
Compliant Standards: FCC Class B certified, ICES-003, cTUVus, VESA TMDS, Mexico Energy label, Mexico CoC
Manufacturer Warranty: 3-year warranty
Display Type: LED-backlit LCD monitor / TFT active matrix
Diagonal Size: 22"
Viewable Size: 21.5"
Built-in Devices: USB 2.0 hub
Panel Type: TN
Aspect Ratio: 16: 9
Native Resolution: Full HD (1080p) 1920 x 1080 at 75 Hz
Pixel Pitch: 0.2482 mm
Brightness: 250 cd/m²
Contrast Ratio: 1000: 1
HDR Format: HDR10
Color Support: 16.7 million colors (8-bit)
Response Time: 5 ms (gray-to-gray)
Vertical Refresh Rate: 50 - 75 Hz
Horizontal Refresh Rate: 24 - 82 kHz
Horizontal Viewing Angle: 170
Vertical Viewing Angle: 160
Screen Coating: Anti-glare, 7H Hard Coating, Haze 1%
Backlight Technology: LED backlight
OSD Languages: Czech, Chinese (traditional), Chinese (simplified), English, German, French, Italian, Finnish, Russian, Spanish, Turkish, Japanese, Korean
Features: Eco-Mode, glossy, game mode, scratch-resistant, glove touch mode, Transition Minimized Differential Signaling (TMDS) technology, Blue Light Filter technology, Movie Mode, text mode, web mode, mono mode, infrared touch technology, Picture-in-Picture
Dimensions (WxDxH): 20.5 in x 4 in x 13.1 in - with stand
Weight: 9.92 lbs
Type: Speakers - stereo
Output Power / Channel: 2 Watt
Type: Touchscreen - touchscreen
Movement Detection Technology: Infrared
Interfaces: VGA ¦ 2 x USB 2.0 downstream (Type A) ¦ USB 2.0 upstream (Type B) ¦ Audio line-in (mini-jack) ¦ Audio line-out (mini-jack) ¦ HDMI ¦ DVI-D
Display Position Adjustments: Tilt
Tilt Angle: -22/+38
VESA Mounting Interface: 100 x 100 mm
Features: Security lock slot (cable lock sold separately), VESA interface support
Cables Included: 1 x USB-C cable ¦ 1 x USB-A to USB-B cable
Backlight Life: 30,000 hours
Compliant Standards: FCC Class B certified, ICES-003, cTUVus, VESA TMDS, Mexico Energy label, Mexico CoC
Security Slot Type: Kensington security slot
Input Voltage: AC 120/230 V (50/60 Hz)
Power Consumption (Typical): 15 Watt
Power Consumption (Max): 19 Watt
Power Consumption Stand by: 0.5 Watt
Power Consumption (Off Mode): 0.3 Watt
Dimensions & Weight Details: With stand - width: 20.5 in - depth: 4 in - height: 13.1 in - weight: 9.9 lbs ¦ Without stand - width: 20.5 in - depth: 2.4 in - height: 12.5 in - weight: 8.6 lbs
Shipping Width: 22.8 in
Shipping Depth: 6.5 in
Shipping Height: 15.9 in
Shipping Weight: 13.23 lbs
ENERGY STAR Certified: Yes
Service & Support: Limited warranty - parts and labor - 3 years ¦ Limited warranty - backlight - 3 years
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 20 - 90% (non-condensing)
COO: CHINA / CHINA
TAA compliance: No
