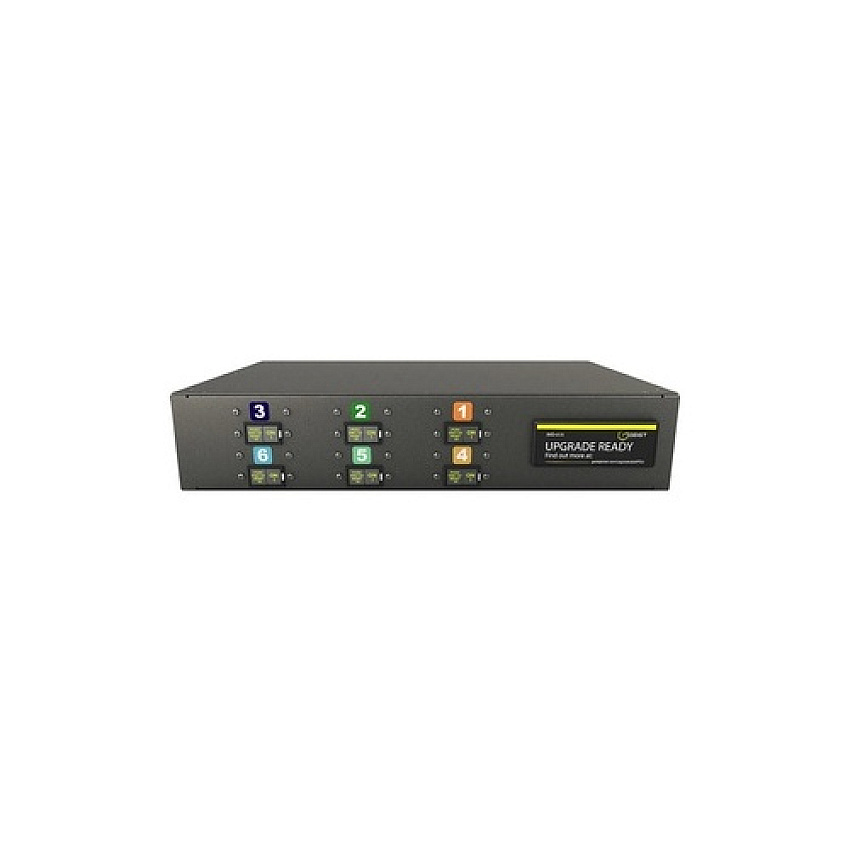

Vertiv Mn01xdr1-15p3b8-6ps15b0h10-s (I10020L)
Vertiv Mn01xdr1-15p3b8-6ps15b0h10-s (I10020L)
-
MN01XDR1-15P3B8-6PS15B0H10-S
-
Out Of Stock
Product Description
Basic, Upgradeable, 60A, 208V DELTA, 3 Phase, Horizontal, (3) Locking IEC C13, (12) Locking IEC C19, breakered, 10 ft power cord with 3P+E (IP44), Black Powder Coat.
Product Specs
Manufacturer
VertivManufacturer Stock No.
I10020LMPN
VRTI10020LModel#
I10020LUNSPSC Code
0Information
Product Description: Geist Basic Upgradeable MN01XDR1-15P3B8-6PS15B0H10-S - power distribution unit - 17.2 kWDevice Type: Power distribution unit - rack-mountable
Cord Length: 10 ft
Rack Size: 19" - 2U
Input Wiring: 3-phase delta
Input Voltage: AC 208 V
Output Voltage: AC 208 V
Power Capacity: 17.2 kW
Input Connectors: 1 x power IEC 60309 3P+E
Output connectors: 3 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C19
Color: Black
Dimensions (WxDxH): 17 in x 12 in x 3.4 in
Manufacturer Warranty: 5-year warranty with product registration
Device Type: Power distribution unit - rack-mountable
Height (Rack Units): 2U
Rack Size: 19"
Cord Length: 10 ft
Color: Black
Input Voltage: AC 208 V
Frequency Provided: 50/60 Hz
Input Wiring: 3-phase delta
Frequency Required: 50/60 Hz
Input Connectors: 1 x power IEC 60309 3P+E
Power Output Connectors Details: 3 x power IEC 60320 C13 ¦ 12 x power IEC 60320 C19
Output Voltage: AC 208 V 50/60 Hz
Max Electric Current: 60 A
Power Capacity: 17.2 kW
Circuit Protection: Circuit breaker
Cables Included: Power cable 10 ft
Rack Mounting Kit: Included
Features: Horizontal orientation, horizontal orientation, double pole magnetic breaker, switched, U-lock outlets, locking C13 connector, locking C19 connector
Compliant Standards: UL, cUL, RoHS, FCC Part 15 A, IP44
Service & Support: Limited warranty - 5 years with product registration
Max Operating Temperature: 140 °F
Width: 17 in
Depth: 12 in
Height: 3.4 in
Shipping Weight: 28.99 lbs
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
29Ships via UPS
NBrand
Vertiv
$774.75
$1,012.00
